SM 110 PROGRAM MODE
30

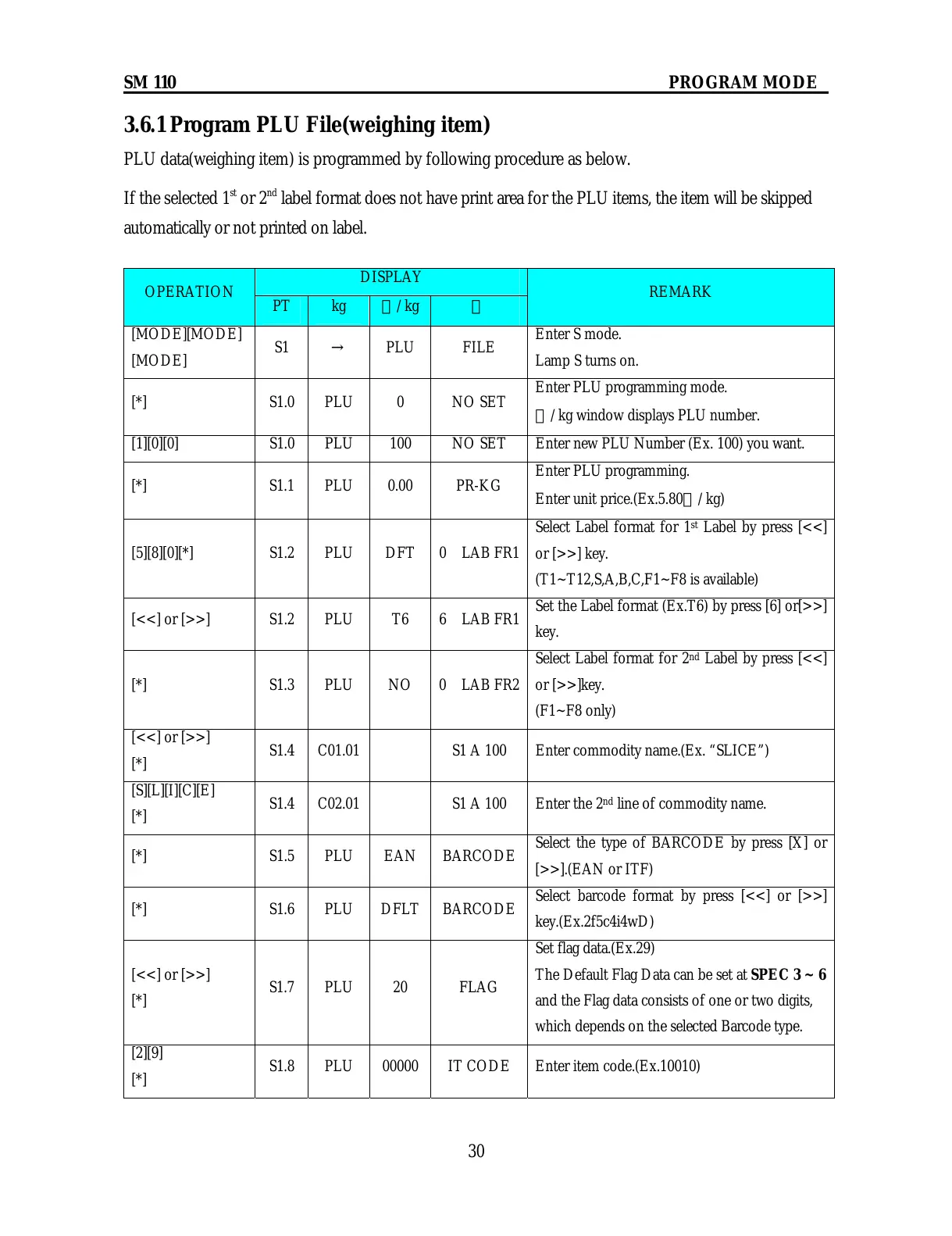

3.6.1 Program PLU File(weighing item)
PLU data(weighing item) is programmed by following procedure as below.
If the selected 1
st
or 2
nd
label format does not have print area for the PLU items, the item will be skipped
automatically or not printed on label.
DISPLAY
OPERATION
PT kg
＄/kg ＄
REMARK
[MODE][MODE]
[MODE]
S1
→
PLU FILE
Enter S mode.
Lamp S turns on.
[*] S1.0 PLU 0 NO SET
Enter PLU programming mode.
＄/kg window displays PLU number.
[1][0][0] S1.0 PLU 100 NO SET Enter new PLU Number (Ex. 100) you want.
[*] S1.1 PLU 0.00 PR-KG
Enter PLU programming.
Enter unit price.(Ex.5.80＄/kg)
[5][8][0][*] S1.2 PLU DFT 0 LAB FR1
Select Label format for 1
st
Label by press [<<]
or [>>] key.
(T1~T12,S,A,B,C,F1~F8 is available)
[<<] or [>>] S1.2 PLU T6 6 LAB FR1
Set the Label format (Ex.T6) by press [6] or[>>]
key.
[*] S1.3 PLU NO 0 LAB FR2
Select Label format for 2
nd
Label by press [<<]
or [>>]key.
(F1~F8 only)
[<<] or [>>]
[*]
S1.4 C01.01 S1 A 100 Enter commodity name.(Ex. “SLICE”)
[S][L][I][C][E]
[*]
S1.4 C02.01 S1 A 100 Enter the 2
nd
line of commodity name.
[*] S1.5 PLU EAN BARCODE
Select the type of BARCODE by press [X] or
[>>].(EAN or ITF)
[*] S1.6 PLU DFLT BARCODE
Select barcode format by press [<<] or [>>]
key.(Ex.2f5c4i4wD)
[<<] or [>>]
[*]
S1.7 PLU 20 FLAG
Set flag data.(Ex.29)
The Default Flag Data can be set at SPEC 3 ~ 6
and the Flag data consists of one or two digits,
which depends on the selected Barcode type.
[2][9]
[*]
S1.8 PLU 00000 IT CODE Enter item code.(Ex.10010)
To Next Page
