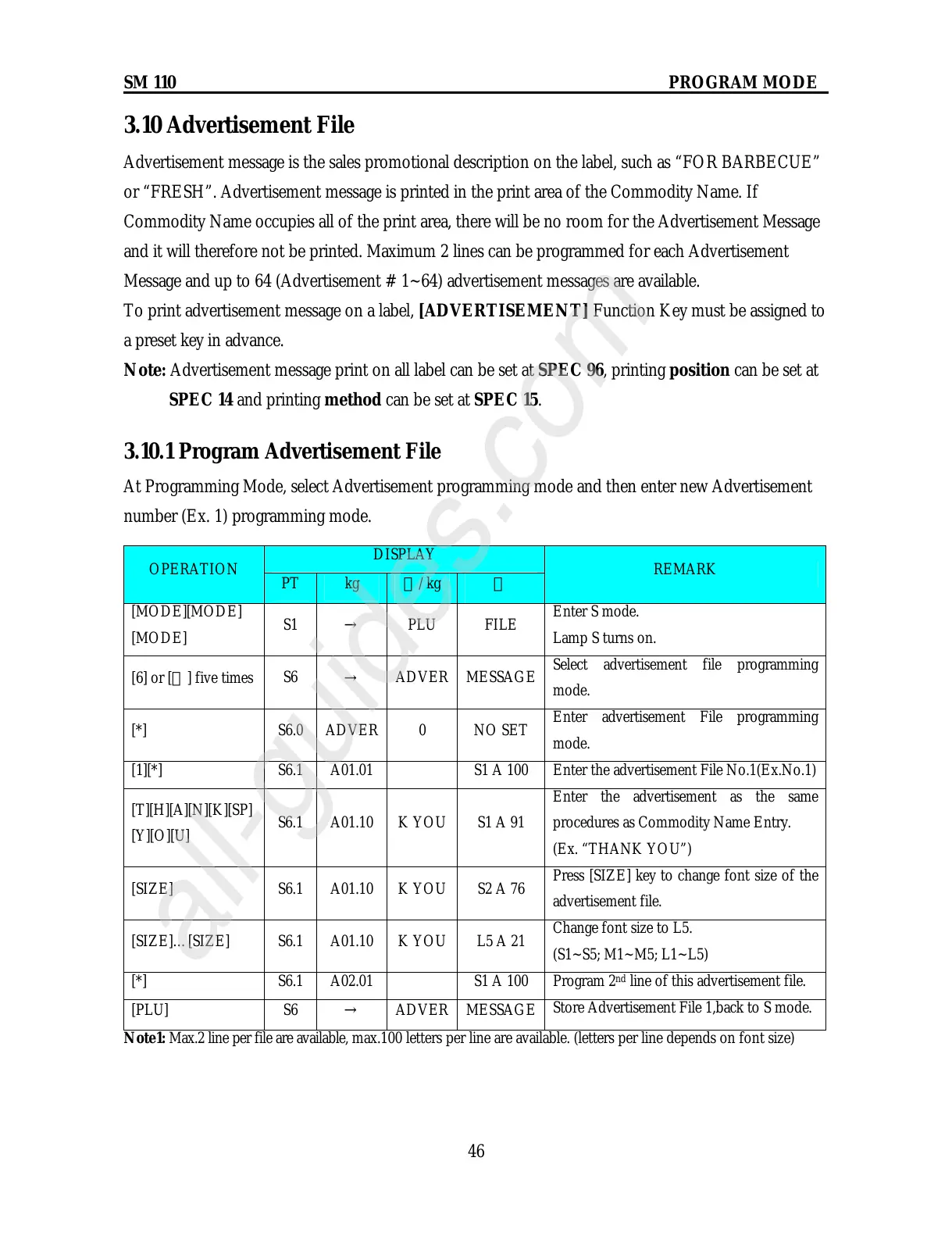

SM 110 PROGRAM MODE
46
3.10 Advertisement File
Advertisement message is the sales promotional description on the label, such as “FOR BARBECUE”
or “FRESH”. Advertisement message is printed in the print area of the Commodity Name. If
Commodity Name occupies all of the print area, there will be no room for the Advertisement Message
and it will therefore not be printed. Maximum 2 lines can be programmed for each Advertisement
Message and up to 64 (Advertisement # 1~64) advertisement messages are available.
To print advertisement message on a label, [ADVERTISEMENT] Function Key must be assigned to
a preset key in advance.
Note: Advertisement message print on all label can be set at SPEC 96, printing position can be set at
SPEC 14 and printing method can be set at SPEC 15.
3.10.1 Program Advertisement File
At Programming Mode, select Advertisement programming mode and then enter new Advertisement
number (Ex. 1) programming mode.
DISPLAY
OPERATION
PT kg
＄/kg ＄
REMARK
[MODE][MODE]
[MODE]
S1
→
PLU FILE
Enter S mode.
Lamp S turns on.
[6] or [︾] five times
S6
→
ADVER MESSAGE
Select advertisement file programming
mode.
[*] S6.0 ADVER 0 NO SET
Enter advertisement File programming
mode.
[1][*] S6.1 A01.01 S1 A 100 Enter the advertisement File No.1(Ex.No.1)
[T][H][A][N][K][SP]
[Y][O][U]
S6.1 A01.10 K YOU S1 A 91
Enter the advertisement as the same
procedures as Commodity Name Entry.
(Ex. “THANK YOU”)
[SIZE] S6.1 A01.10 K YOU S2 A 76
Press [SIZE] key to change font size of the
advertisement file.
[SIZE]…[SIZE] S6.1 A01.10 K YOU L5 A 21
Change font size to L5.
(S1~S5; M1~M5; L1~L5)
[*] S6.1 A02.01 S1 A 100 Program 2
nd
line of this advertisement file.
[PLU] S6
→
ADVER MESSAGE
Store Advertisement File 1,back to S mode.
Note1: Max.2 line per file are available, max.100 letters per line are available. (letters per line depends on font size)
