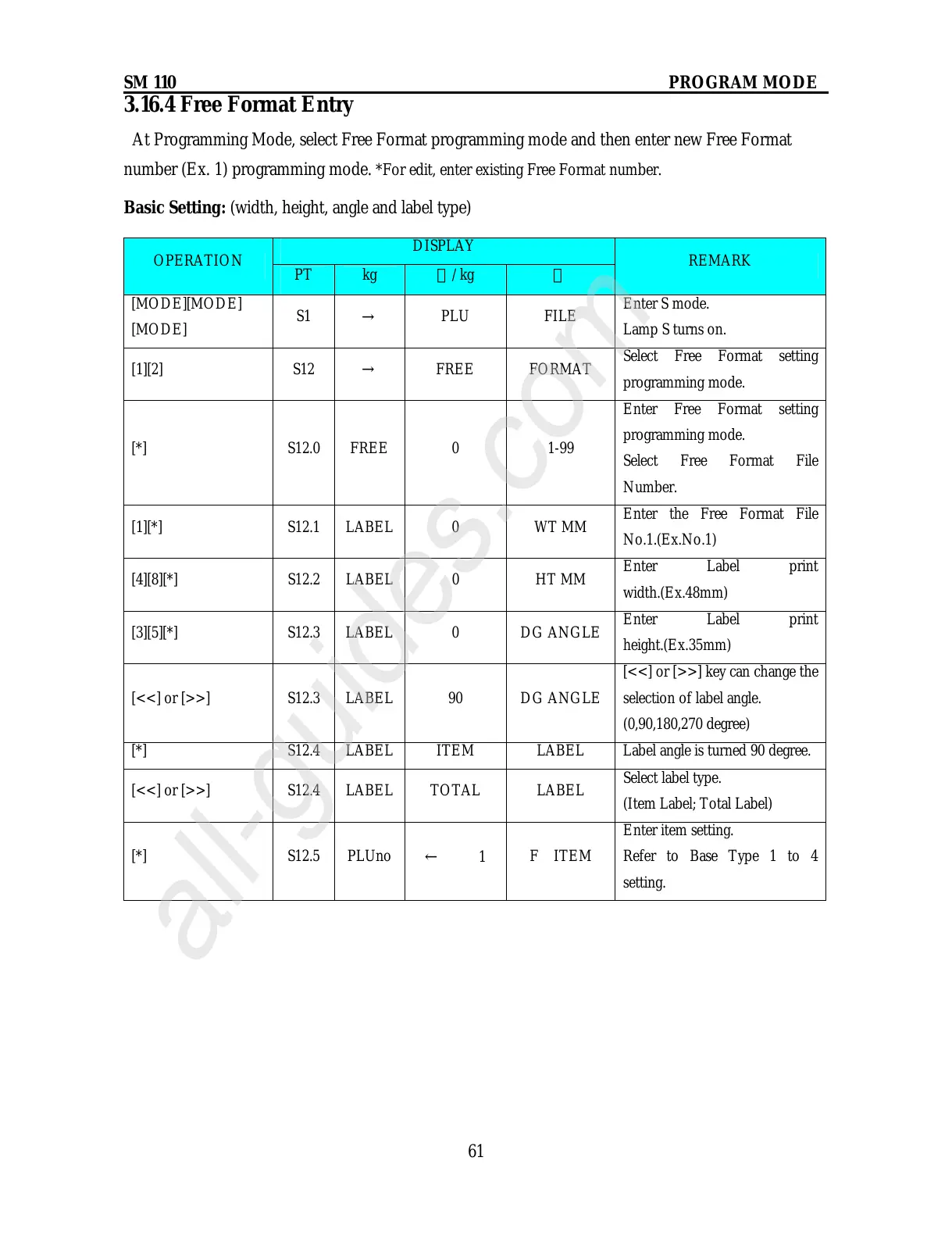

3.16.4 Free Format Entry
At Programming Mode, select Free Format programming mode and then enter new Free Format
number (Ex. 1) programming mode. *For edit, enter existing Free Format number.
Basic Setting: (width, height, angle and label type)
DISPLAY
OPERATION
PT kg
＄/kg ＄
REMARK
[MODE][MODE]
[MODE]
S1
→
PLU FILE
Enter S mode.
Lamp S turns on.
[1][2] S12
→
FREE FORMAT
Select Free Format setting
programming mode.
[*] S12.0 FREE 0 1-99
Enter Free Format setting
programming mode.
Select Free Format File
Number.
[1][*] S12.1 LABEL 0 WT MM
Enter the Free Format File
No.1.(Ex.No.1)
[4][8][*] S12.2 LABEL 0 HT MM
Enter Label print
width.(Ex.48mm)
[3][5][*] S12.3 LABEL 0 DG ANGLE
Enter Label print
height.(Ex.35mm)
[<<] or [>>] S12.3 LABEL 90 DG ANGLE
[<<] or [>>] key can change the
selection of label angle.
(0,90,180,270 degree)
[*] S12.4 LABEL ITEM LABEL Label angle is turned 90 degree.
[<<] or [>>] S12.4 LABEL TOTAL LABEL
Select label type.
(Item Label; Total Label)
[*] S12.5 PLUno
← 1
F ITEM
Enter item setting.
Refer to Base Type 1 to 4
setting.
