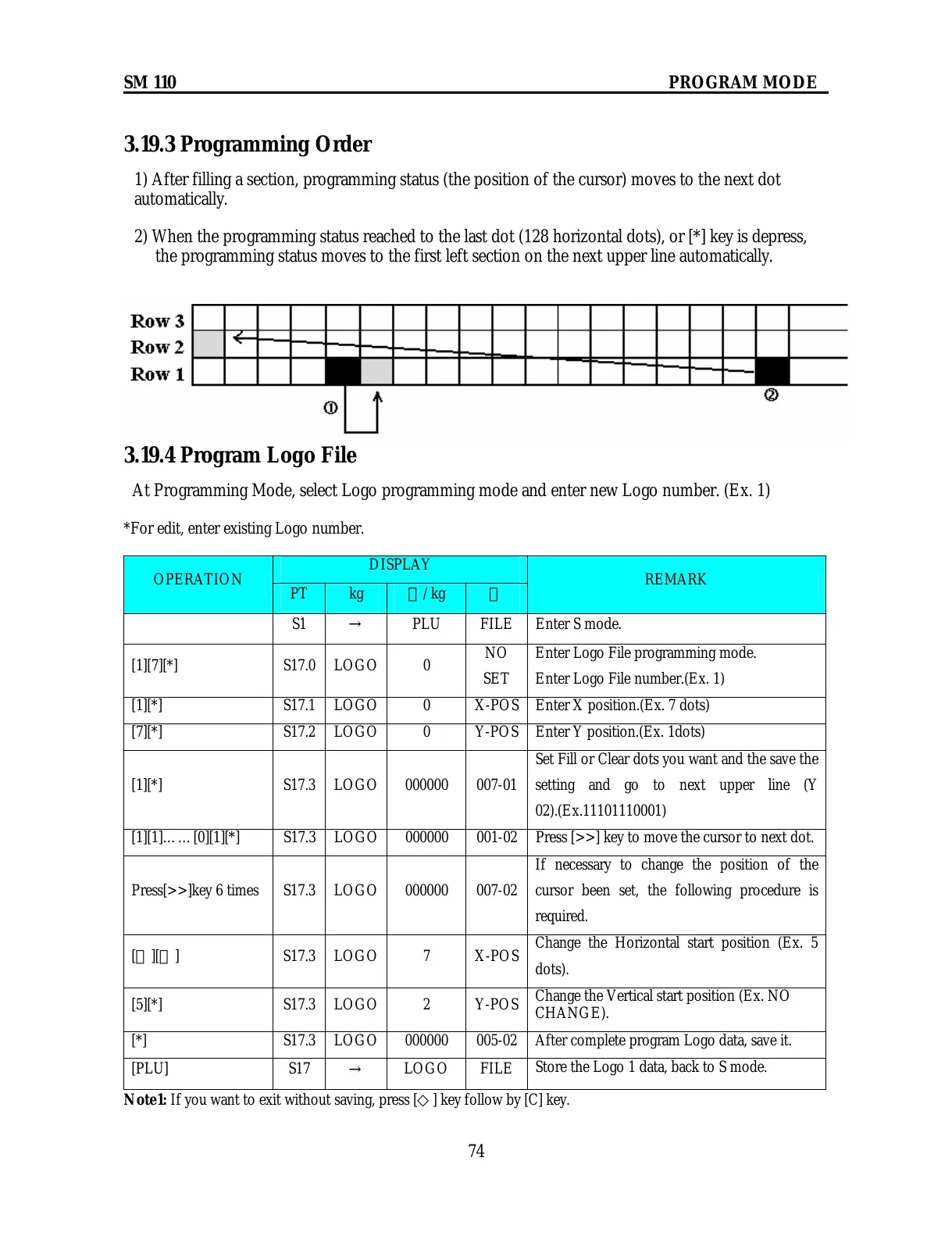

SM 110 PROGRAM MODE
74
3.19.3 Programming Order
1) After filling a section, programming status (the position of the cursor) moves to the next dot
automatically.
2) When the programming status reached to the last dot (128 horizontal dots), or [*] key is depress,
the programming status moves to the first left section on the next upper line automatically.
3.19.4 Program Logo File
At Programming Mode, select Logo programming mode and enter new Logo number. (Ex. 1)
*For edit, enter existing Logo number.
DISPLAY
OPERATION
PT kg
＄/kg ＄
REMARK
S1
→
PLU FILE Enter S mode.
[1][7][*] S17.0 LOGO 0
NO
SET
Enter Logo File programming mode.
Enter Logo File number.(Ex. 1)
[1][*] S17.1 LOGO 0 X-POS Enter X position.(Ex. 7 dots)
[7][*] S17.2 LOGO 0 Y-POS Enter Y position.(Ex. 1dots)
[1][*] S17.3 LOGO 000000 007-01
Set Fill or Clear dots you want and the save the
setting and go to next upper line (Y
02).(Ex.11101110001)
[1][1]……[0][1][*] S17.3 LOGO 000000 001-02 Press [>>] key to move the cursor to next dot.
Press[>>]key 6 times S17.3 LOGO 000000 007-02
If necessary to change the position of the
cursor been set, the following procedure is
required.
[－][－]
S17.3 LOGO 7 X-POS
Change the Horizontal start position (Ex. 5
dots).
[5][*] S17.3 LOGO 2 Y-POS
Change the Vertical start position (Ex. NO
CHANGE).
[*] S17.3 LOGO 000000 005-02 After complete program Logo data, save it.
[PLU] S17
→
LOGO FILE
Store the Logo 1 data, back to S mode.
Note1: If you want to exit without saving, press [◇] key follow by [C] key.
To Next Page
