SM 110 PROGRAM MODE
57

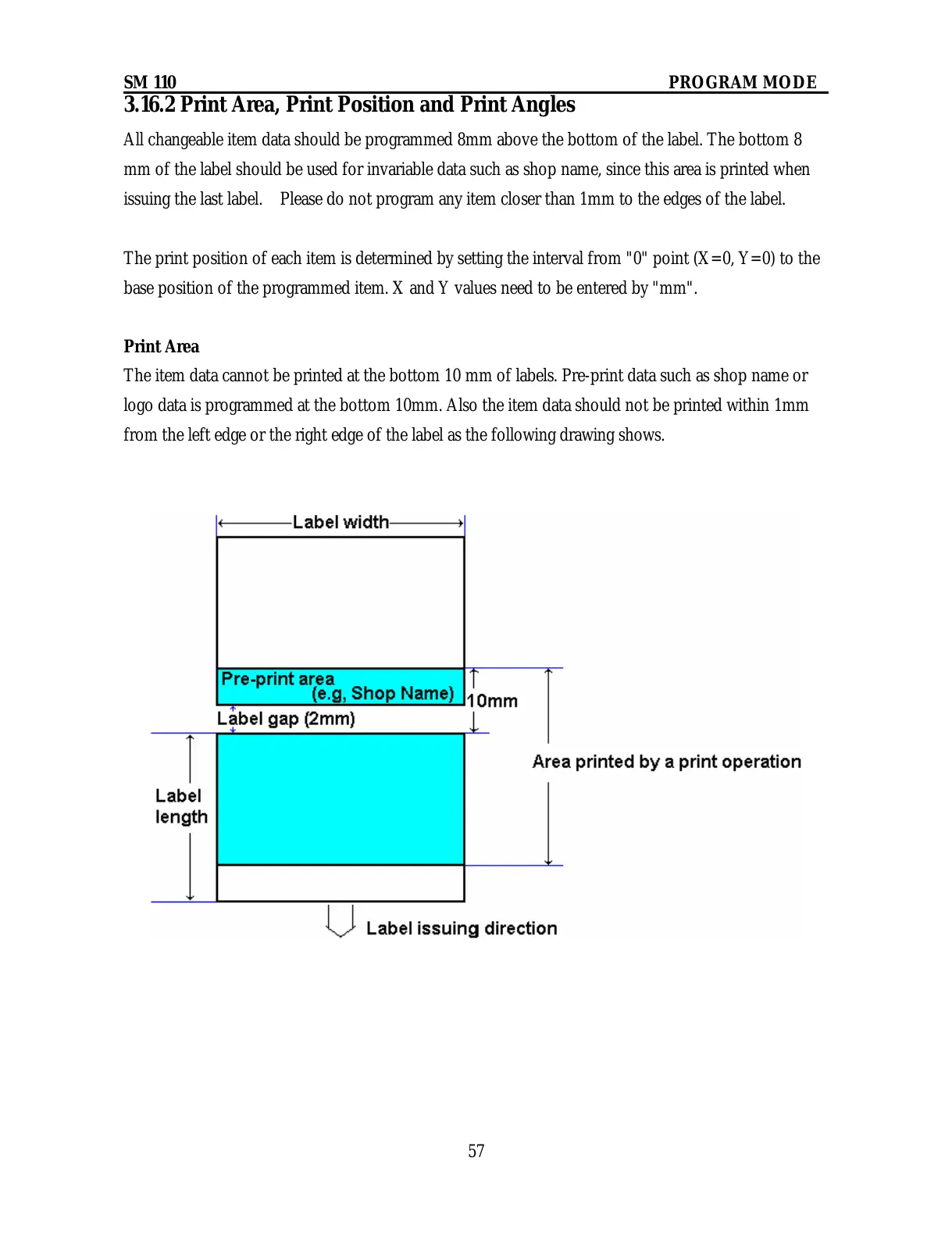

3.16.2 Print Area, Print Position and Print Angles
All changeable item data should be programmed 8mm above the bottom of the label. The bottom 8
mm of the label should be used for invariable data such as shop name, since this area is printed when
issuing the last label. Please do not program any item closer than 1mm to the edges of the label.
The print position of each item is determined by setting the interval from "0" point (X=0, Y=0) to the
base position of the programmed item. X and Y values need to be entered by "mm".
Print Area
The item data cannot be printed at the bottom 10 mm of labels. Pre-print data such as shop name or
logo data is programmed at the bottom 10mm. Also the item data should not be printed within 1mm
from the left edge or the right edge of the label as the following drawing shows.
