SM 110 PROGRAM MODE
21

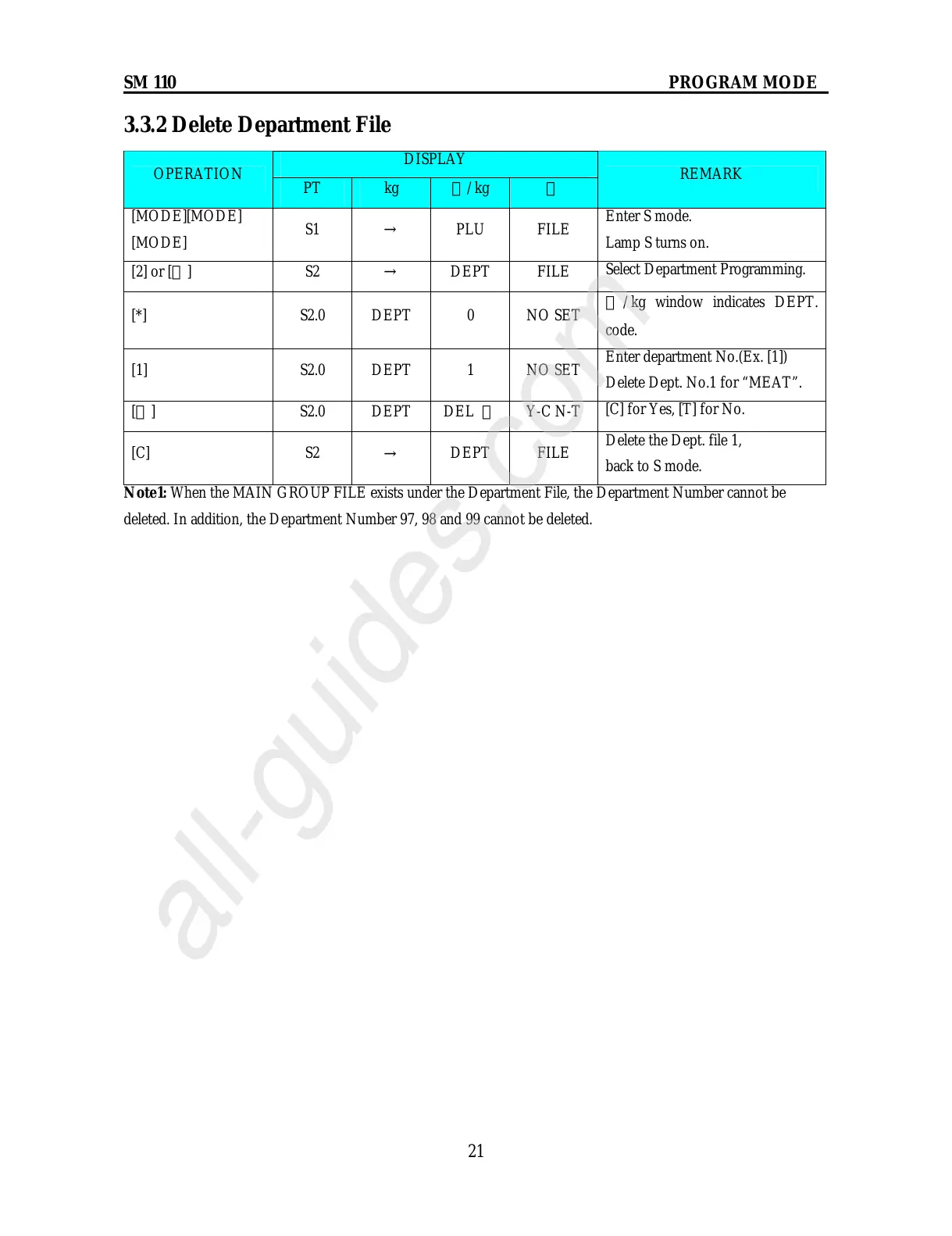

3.3.2 Delete Department File
DISPLAY
OPERATION
PT kg
/kg
REMARK
[MODE][MODE]
[MODE]
S1
PLU FILE
Enter S mode.
Lamp S turns on.
[2] or []
S2
DEPT FILE
Select Department Programming.
[*] S2.0 DEPT 0 NO SET
/kg window indicates DEPT.
code.
[1] S2.0 DEPT 1 NO SET
Enter department No.(Ex. [1])
Delete Dept. No.1 for “MEAT”.
[]
S2.0 DEPT
DEL
Y-C N-T
[C] for Yes, [T] for No.
[C] S2
DEPT FILE
Delete the Dept. file 1,
back to S mode.
Note1: When the MAIN GROUP FILE exists under the Department File, the Department Number cannot be
deleted. In addition, the Department Number 97, 98 and 99 cannot be deleted.
