Geometry Engine (continued)

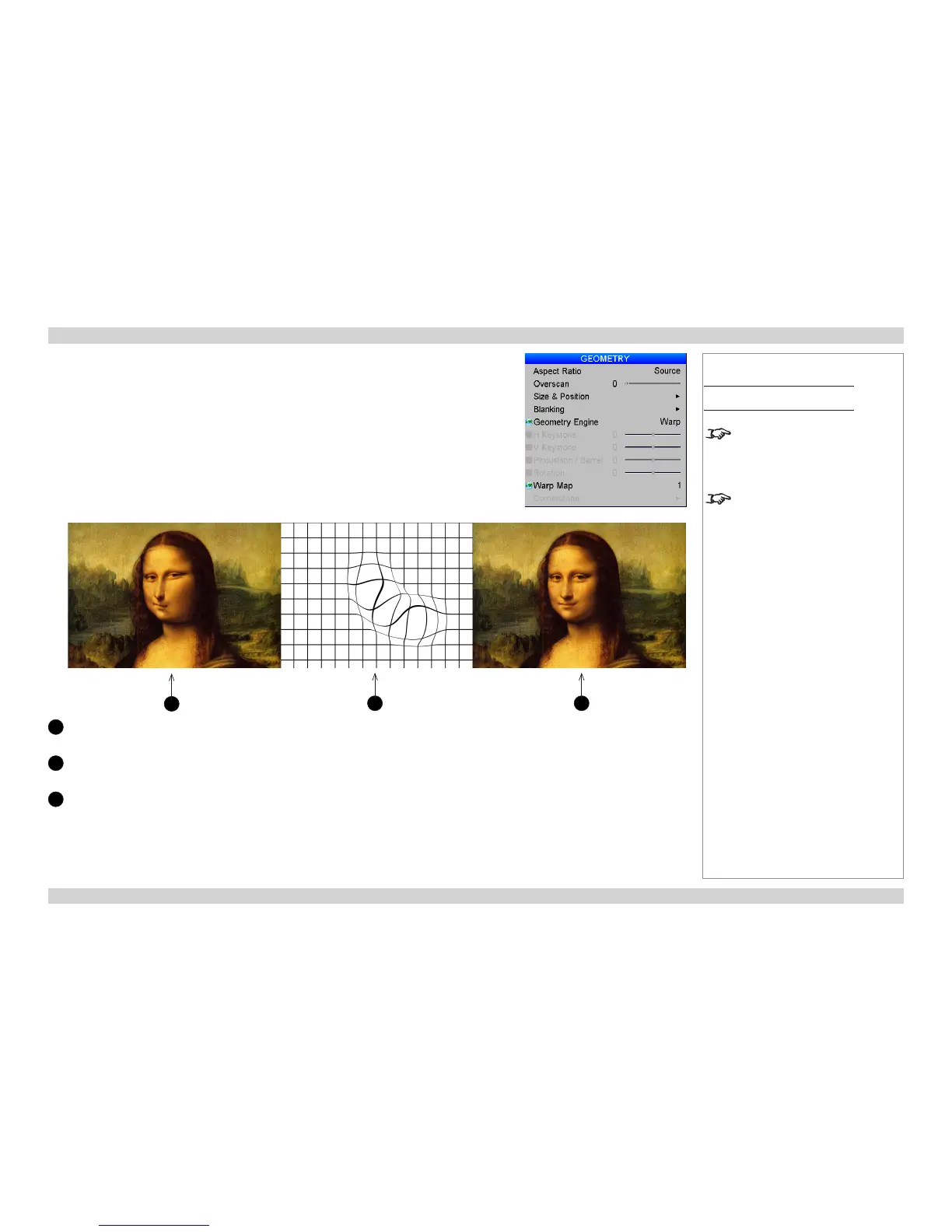

Warp Map
Using DP Warp Generator, an external Digital Projection computer application, up to eight
customised warp maps can be created and uploaded to the projector. If Geometry Engine is set to
Warp, and any warp maps have been uploaded, you can select from the drop-down list.
1
Distorted image
The image is projected on an uneven surface.
2
Warp map
The map mirrors the surface - raised areas on the surface correspond to hollow areas on the map, and vice versa.
3
Corrected image
With the warp map applied, the projector compensates for the surface and the projected image appears undistorted.
Notes
Main Menu
Geometry
Some items on this menu may
be unavailable depending on the
Geometry Engine setting.
If possible, position the projector
facing the screen at a right angle to
avoid geometry corrections.
1
2 3
