Edge Blend procedure (continued)
9. Set up segmentation (optional).
If you are feeding the same source into all the projectors and aim to have each projector reproduce a segment of the source, you can use
the Edge Blend > Segmentation function, or you can use an external processor to control the segments.
To use the Segmentation function:
1. On each projector, set Edge Blend > Segmentation to On.
2. Test with the source. If necessary, enter further corrections as described in steps 6, 7 and 8 above.
Bear in mind that using the Segmentation function brings a loss of resolution, as shown below:

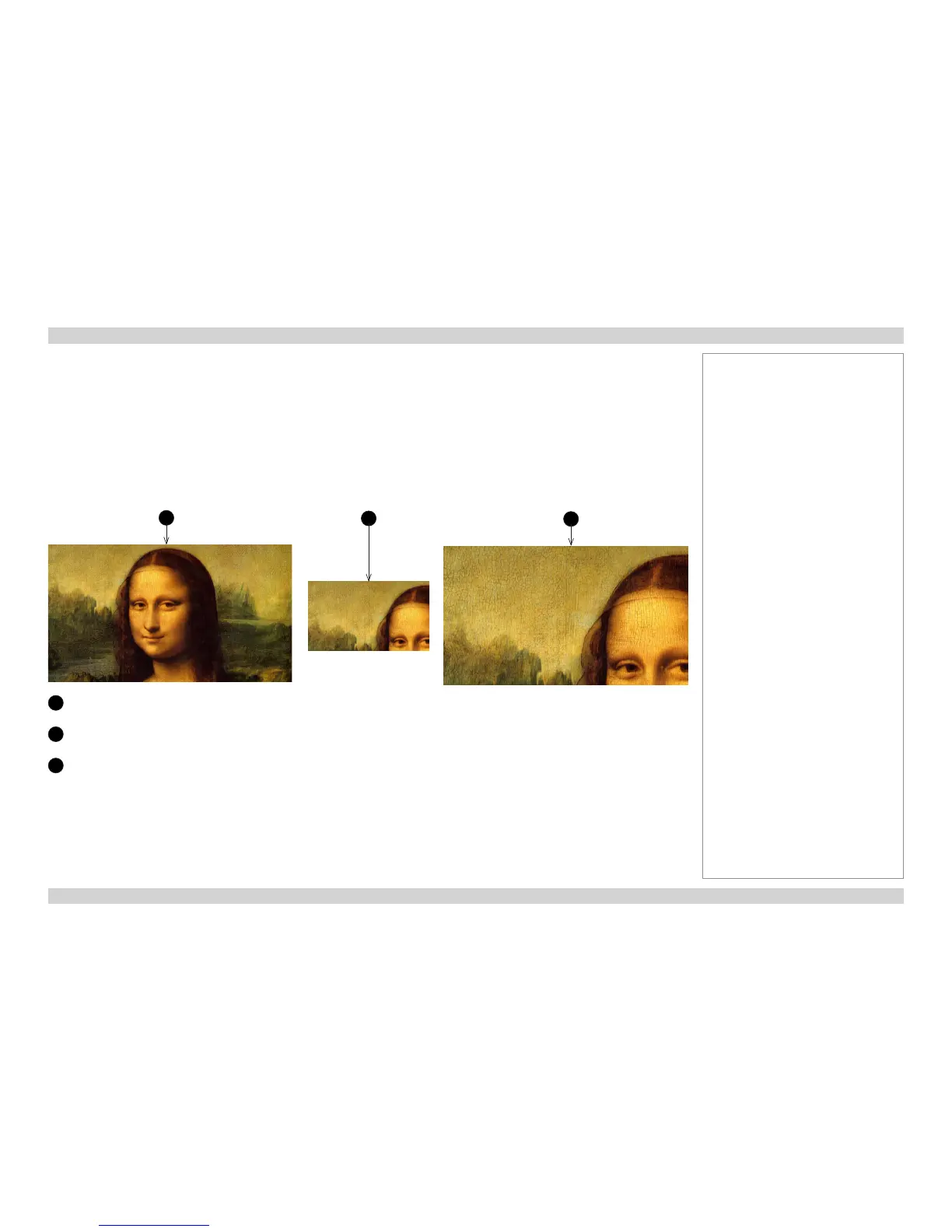

1
Whole image
This is a 1080p image and contains 2,073,600 pixels.
2
Top left segment in a 2x2 array
This segment contains 518,400 pixels, a quarter of the original image.
3
The segment projected with a 1080p DMD
The segment zoomed in to ll a 1080p DMD. The pixels are larger but not greater in number.
