DVR Server Manual

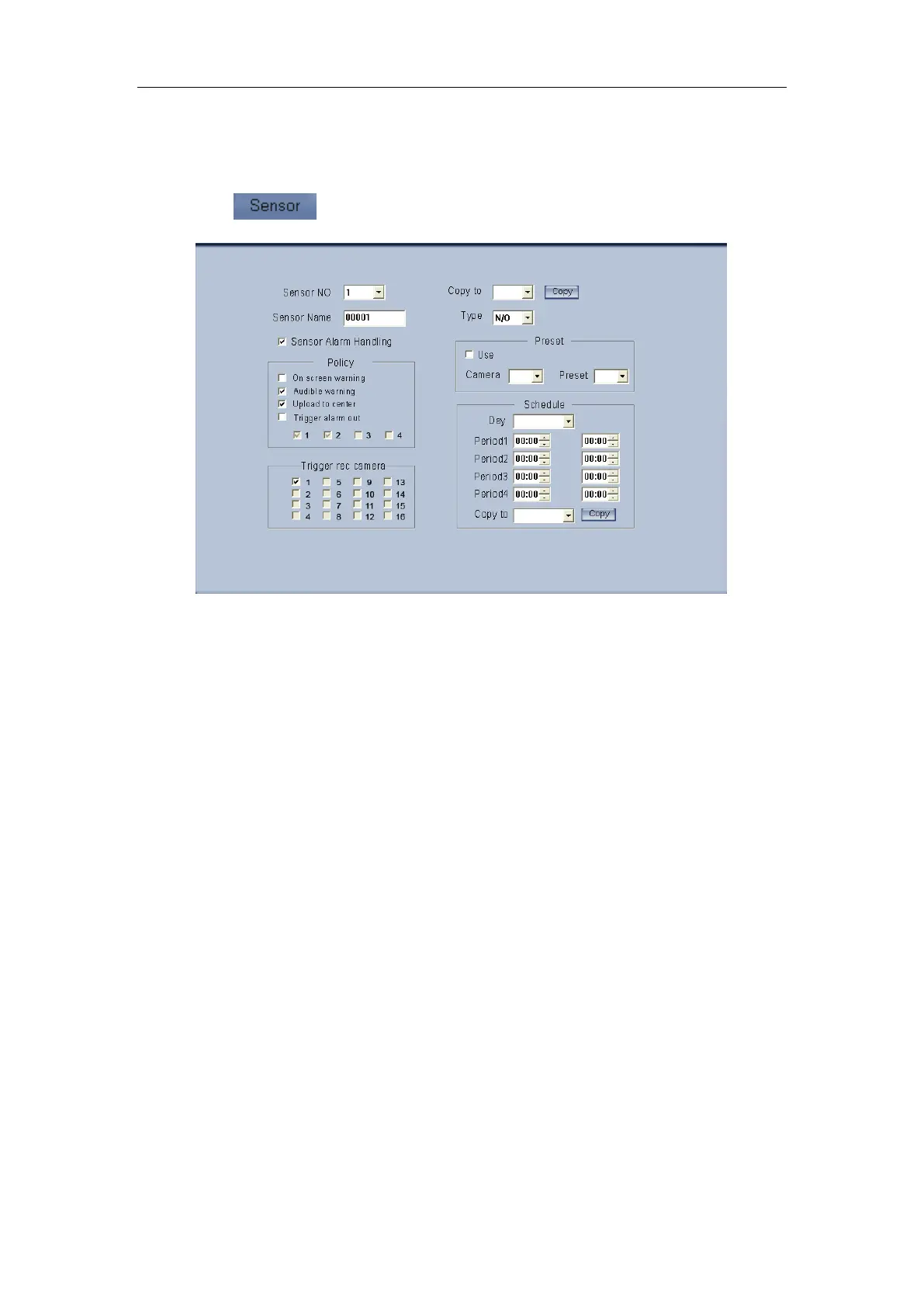

3.5 Sensor setup
Press button to set sensor parameters.
【Sensor NO】Select one sensor to be set.
【Sensor Name】Enter the name description of the sensor.
【Type】Select alarm type (sensor type) from “NO”(Normally Open) or
“NC”(Normally Close).
【Policy】Selecting “Sensor Alarm Handling” firstly, handling policies will
be available as follows:
On screen warning—Display the alarm information on the monitor.
Audio warning—Indicate the alarm with voice.
Upload to center—Update the alarm information to center.
Trigger alarm out—Trigger alarm box to output the alarm.
【Trigger record camera】Set cameras to record triggered by the alarm.
You can select one or more channels. W hen there is alarm input, the cameras
will be triggered to record (the record type of the channel is Alarm Record), and
the monitor will switch to preview the cameras (warning on monitor is enable).
【Preset】Set camera that will move to its one preset position when the
alarm happened.
【Schedule】Set alarm input precaution time firstly, then set time segment
according to the sequence. The time of each segment should not overlap the
others and no skips are allowed. After the precaution time of a certain day is
set, you can copy the parameter to other dates by select a day and press copy
button.
