DINO 210XT
30
14. With the boom slightly lifted and the telescope extended, make sure that the platform
does not lower of itself while the operating controls are not being used
15. When working under cold weather conditions, let the engine run for a while without
load to increase the hydraulic oil temperature. Start the operations by driving the
movements carefully without load back and forth from the chassis control panel.
16. Move the platform to the work object
The platform movements can be operated with continually adjustable speed from the platform
control panel (not from the chassis control panel). Only one movement can be operated at a time. If
several control levers are operated simultaneously, only the movement with the least resistance will
operate.
ATTENTION!
Lowering the platform to transport position: Always before lowering the boom onto the transport
support, retract the telescope completely and turn the platform perpendicular to the boom.
DO NOT DAMAGE THE TOW-BAR JOCKEY WHEEL!
DO NOT TAKE ADDITIONAL LOAD IN THE UPPER POSITION!

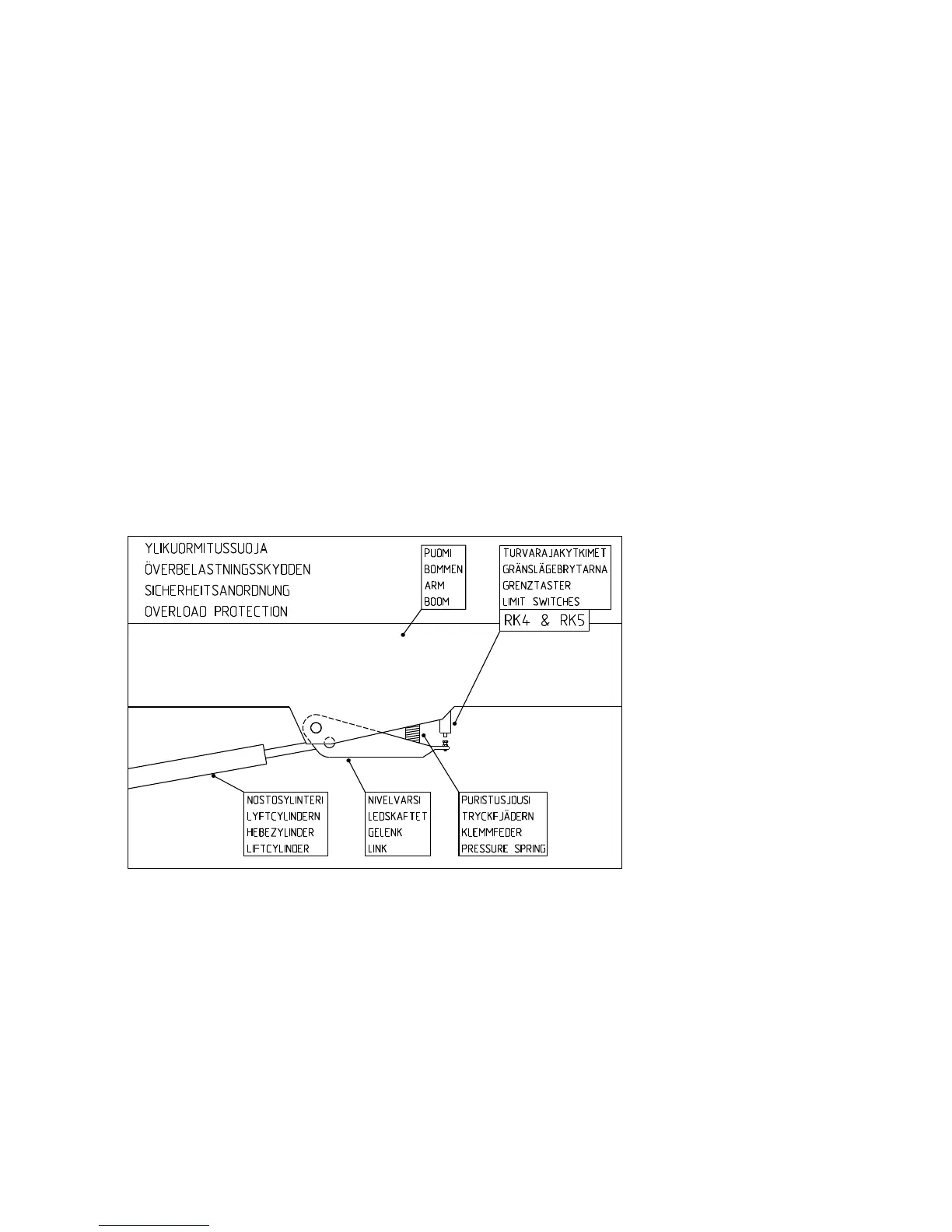

17. Observe when lifting the platform
- the operating range of the platform depends on the load (see Technical Data) and is
monitored by the safety limit switches RK4 and RK5, which are located under the
protecting cover
The limit switches must not be adjusted or modified. The inspection and adjustment may
only be carried out by an authorized serviceman.
18. Working a long time in the same position
- there are pushbuttons for both stopping and starting on both the platform and the chassis
control panels
When the weather is warm and the platform is kept for a longer period in the same position,
it is not necessary to let the engine run continuously.
