1592025400 – Vers. 1.0 - 19 -

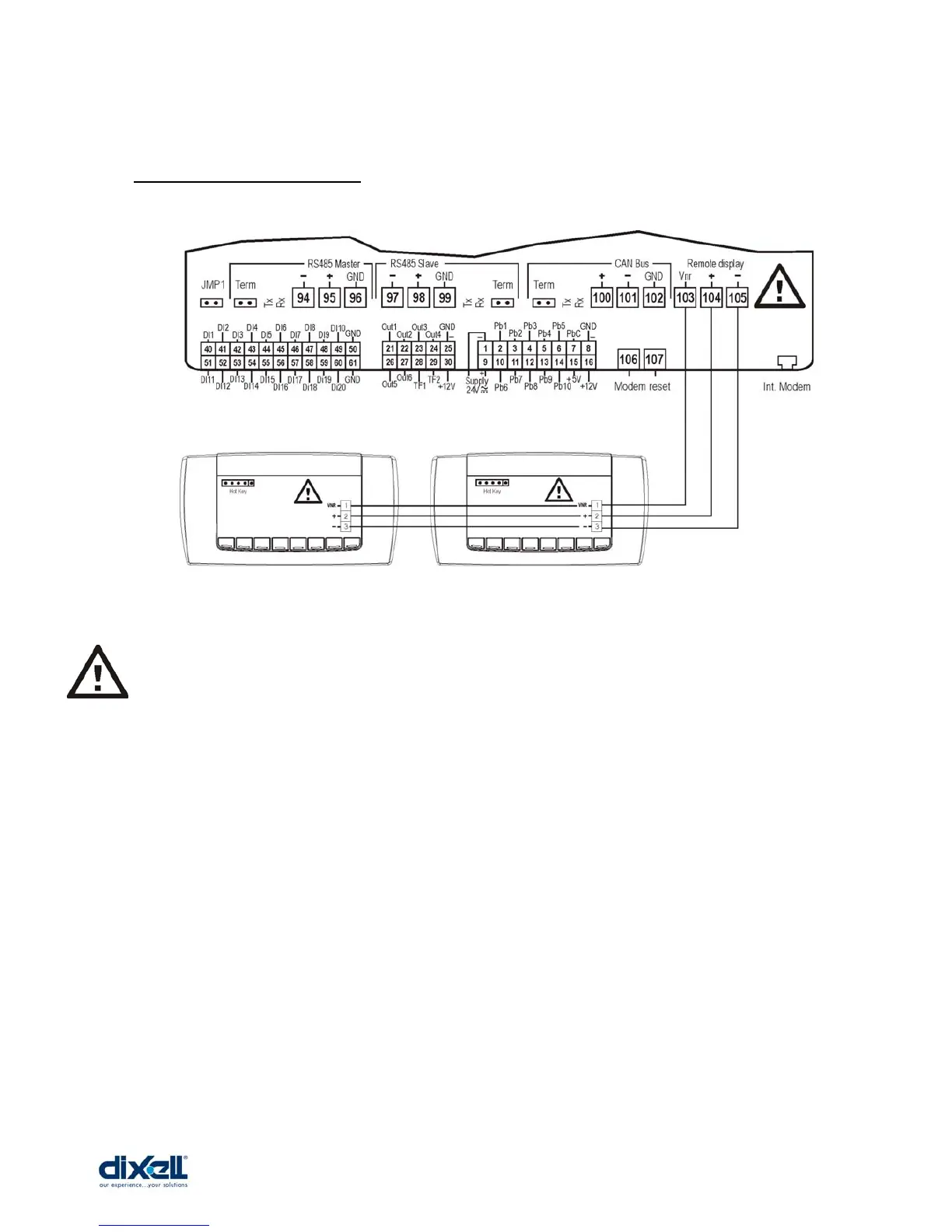

4.12 Visograph connection
IT IS VERY IMPORTANT TO RESPECT THE POLARITY OF CONNECTIONS TO AVOID
THE DAMAGING OF THE VISOGRAPH.
