8.2.1 FBD example – ON/OFF regulator
The purpose of this example is to develop the same example of before but with the FBD
language.

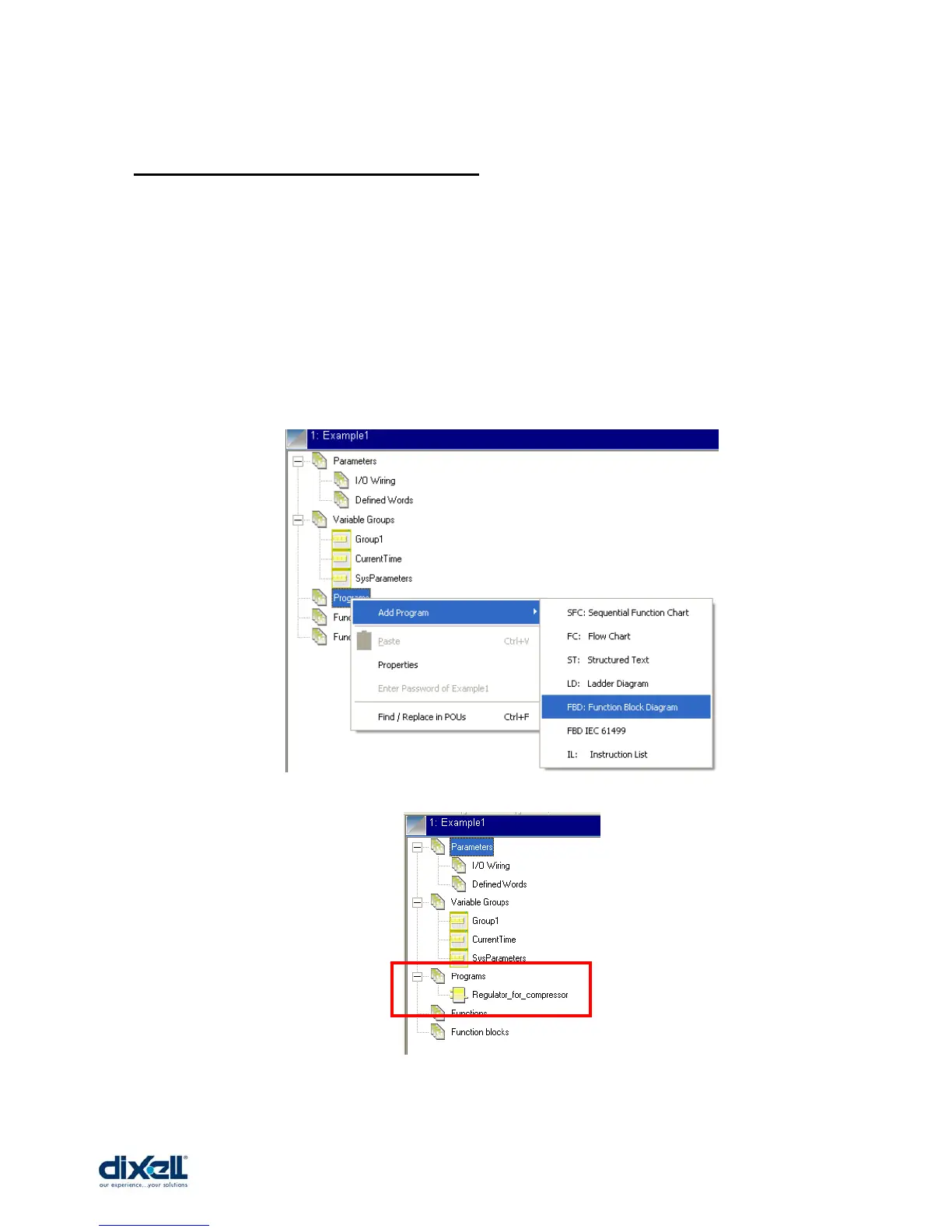

The steps are the same of example No.1 except for the step when you have to add the
program; in this case you have to add the FBD program.
Pay attention because in this example we have called the FBD program with the same
name of the ST program; inside one project is not possible to have different program with
the same name
The next step is to write the program (double click on Regulator_for_compressor):
