12. VISOGRAPH

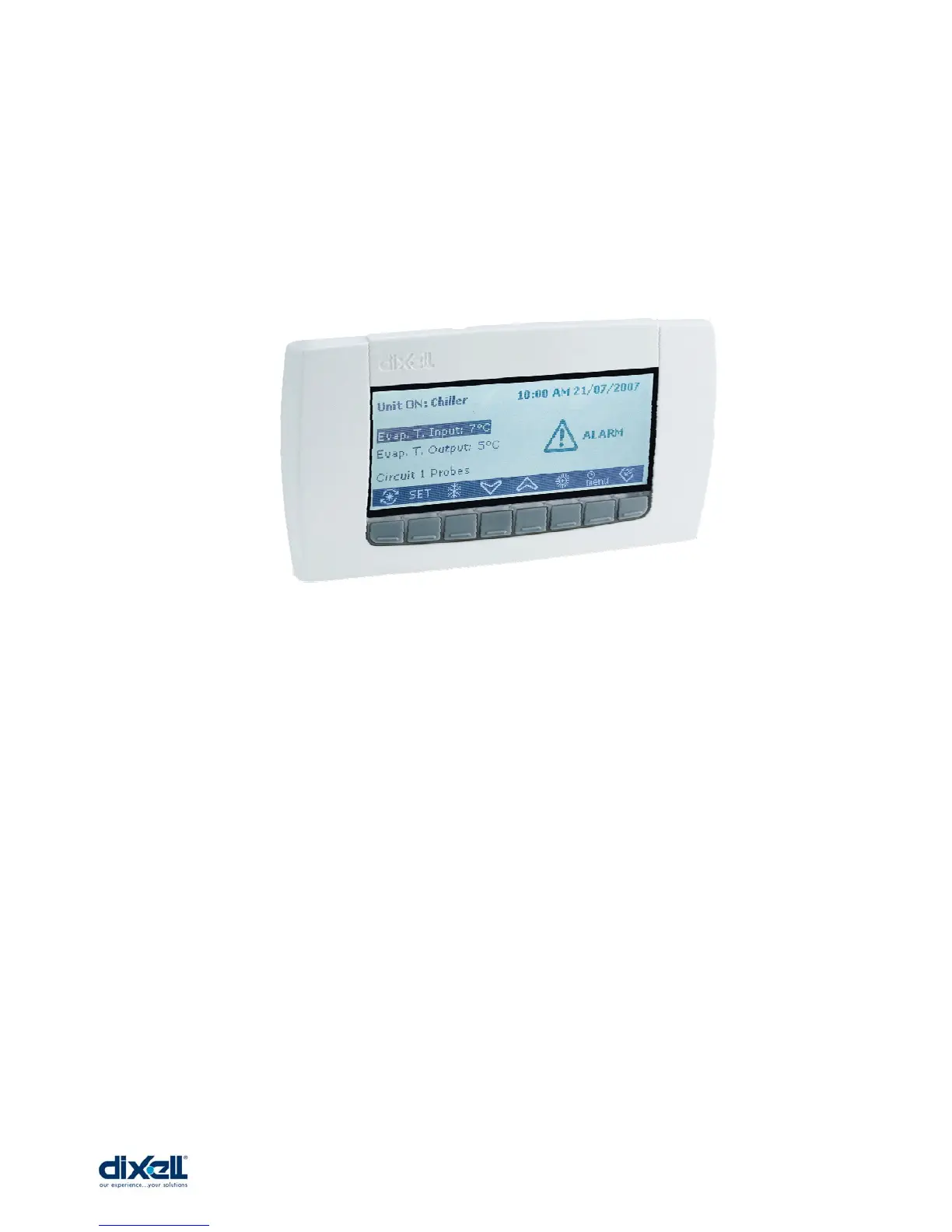

The VISOGRAPH Human Interface is a graphic lcd display necessary to visualize all the
variables defined in the iPRO (remember that only the variables with an address defined in
the ISaGRAF project can be visualized).
The main characteristics are:
• Graphic Lcd 240x96 pixel
• 8 full programmable keys
• Multi-languages
• Processor 32bit
• 3 wires bus
• Panel and wall mounting
• Optional NTC probe on board
• Software updating from USB (through the iPRO)
The Graphic Lcd and the Keys are programmable by the user; this is possible using the
software tool VISOPROG made by Dixell.
