1592025400 – Vers. 1.0 - 45 -
The physical input and output are defined inside the Variable Groups “SysParameters”.
The AI are the analog inputs, the DI are the digital inputs, the AO are the analog outputs
and the DO are the digital outputs.
The ConfAI is the value to configure the probe type; for example if your AI01 is a PTC
probe, ConfAI01 = 1.

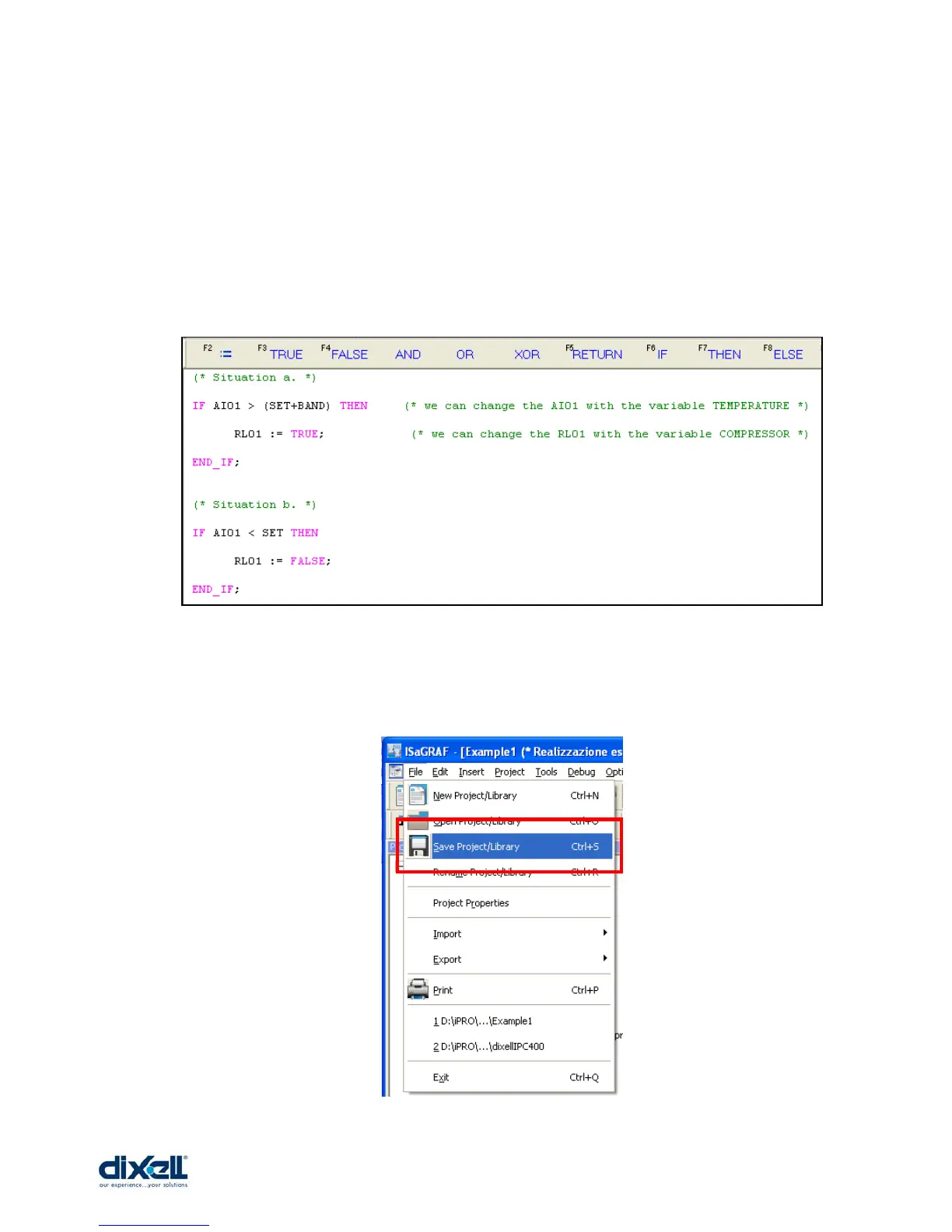

It is also possible to define immediately the physical I/O; in this case the program will be:
We have substitute the logical variables with the physical variables.
Now we can “SAVE” the project and……..
