MATRICE 30 SERIES User Manual
Vision System and Infrared Sensing System
Introduction
Rear View Bottom View

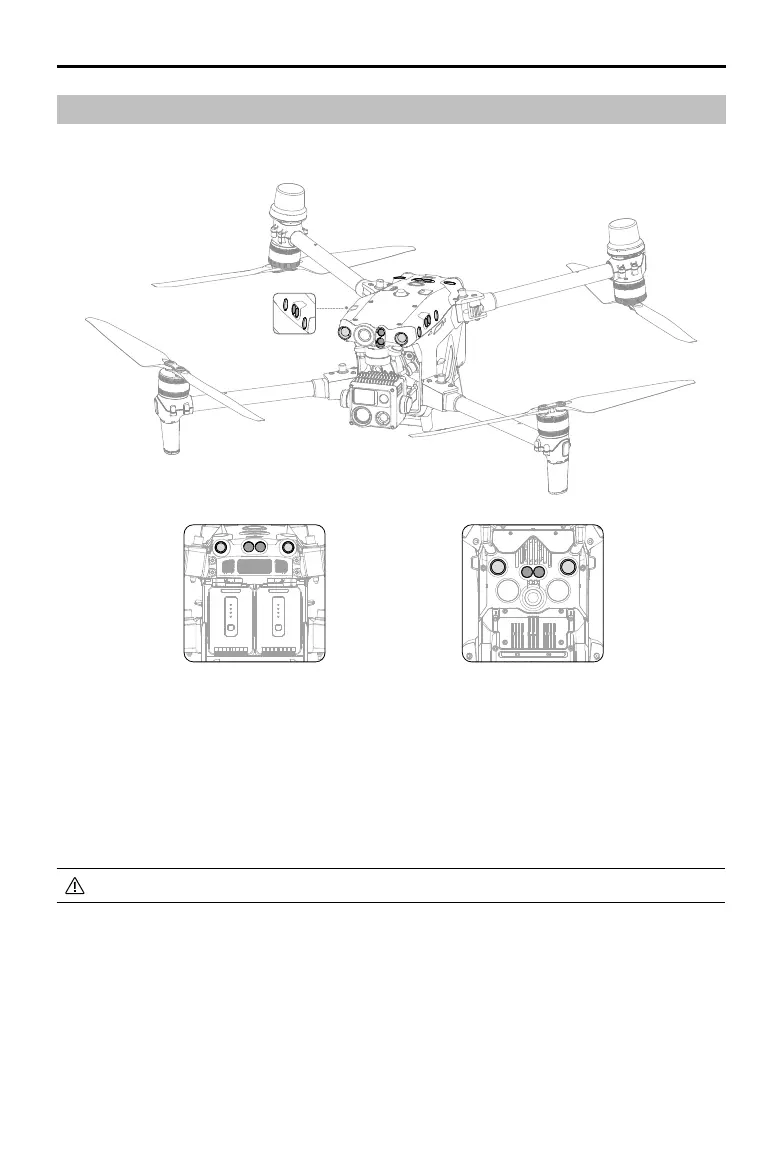

The main components of the vision system (cameras with stereo vision sensors) are located on the front,
rear, left, right, top and bottom of the aircraft. The infrared sensing system has two infrared sensors on
each side of the aircraft (front, rear, left, right, top, and bottom).
The vision system constantly scans for obstacles and uses image data to calculate the aircraft position,
and the infrared sensing system uses infrared sensors to detect obstacles and determine the flight
altitude. Both systems work together to position the aircraft and sense obstacles during ight.
To ensure a safe and steady ight, DO NOT block the vision and infrared sensors.
