dji M30 T - Gimbal Mechanics and Operation

41
©
2022 DJI All Rights Reserved.
MATRICE 30 SERIES User Manual
Ground
+45°
-90°
+90°
+35°-35°
-120°
0°
Gimbal

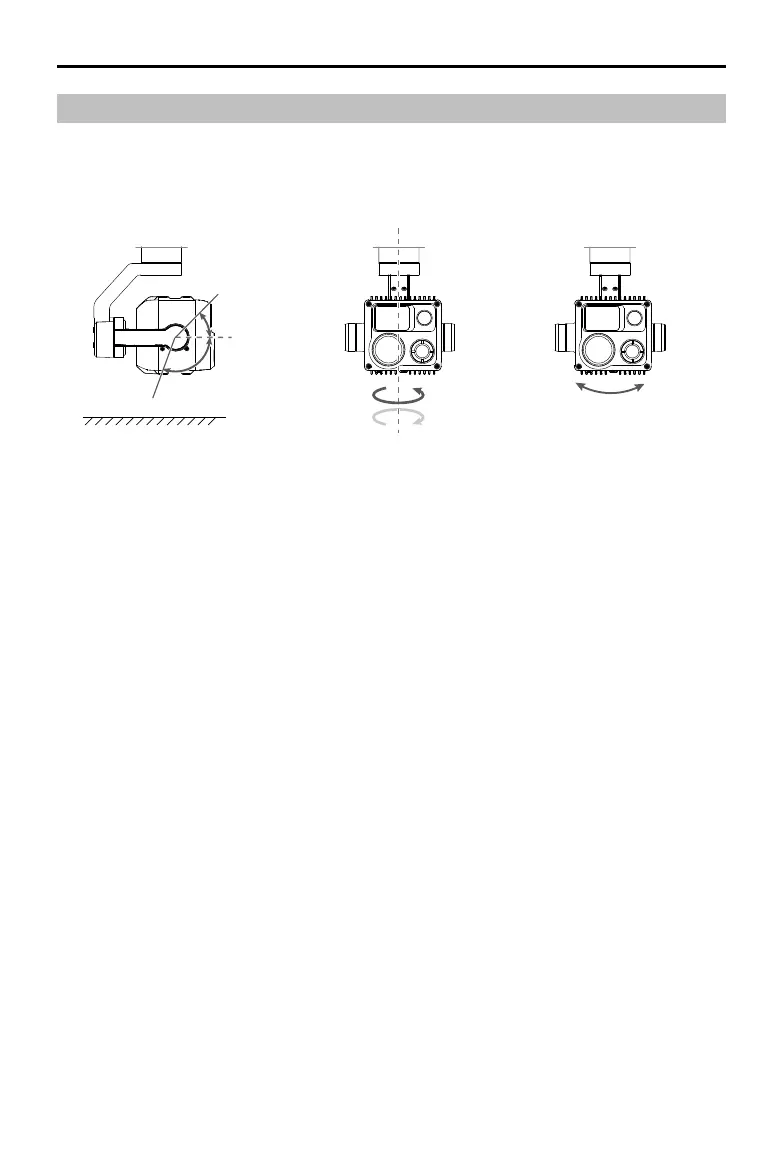

The 3-axis gimbal stabilizes the camera, allowing the aircraft to capture clear and steady images and
videos when in ight. Refer to the gure below for the tilt, pan, and roll range of the gimbal.
Tilt Pan Roll
Controllable Rotating Range
