Primary Flight Display (PFD)

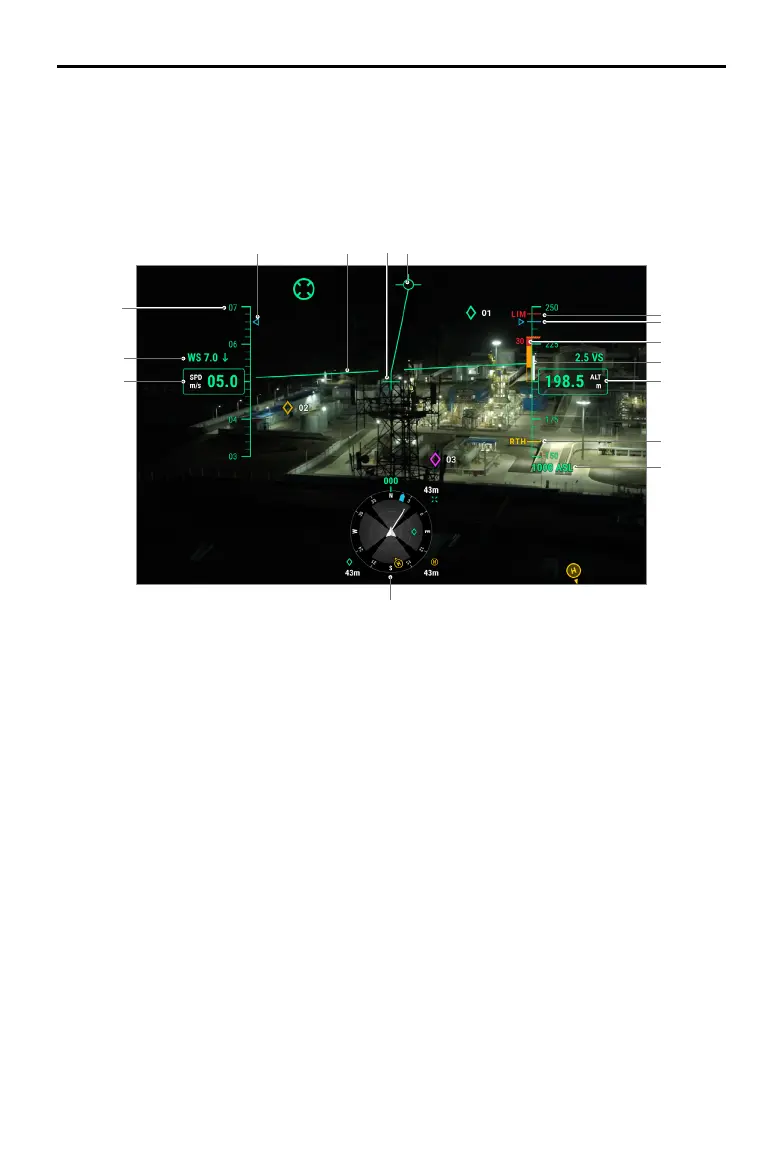

Primary Flight Display (PFD) makes ying easier and more intuitive, enabling users to see and avoid
obstacles around the aircraft, as well as stop and adjust the ight trajectory if necessary.
Primary Flight Display may appear dierently when the main view is through an FPV camera or gimbal
camera (zoom camera/wide camera/thermal camera).
1
2
3
4 5 6 7
8
9
10
11
12
13
14
15
1. Speed wheel.
2. Wind speed and direction. The wind direction is relative to the aircraft.
3. Aircraft horizontal speed.
4. Preset speed of the ight route during the mission ight.
5. Articial Horizon: reects the attitude of the aircraft, which is opposite to its tilt angle.
6. Aircraft Heading Indicator: always in the middle of the camera view.
7. Flight Path Vector: the position the aircraft is about to reach.
8. Altitude Limit (LIM): congured by the ight controller setting.
9. Preset height of the ight route during the mission ight.
10. Vertical Obstacle Indicator: displays the vertical obstacle information of the aircraft. When there
is an obstacle above or below the aircraft, the information can be compared with the height of
the obstacle to detect any imminent collision and avoid accidents. When upward and downward
sensing are disabled, OFF will be displayed to remind the user that vertical obstacle sensing is
turned o.
11. Vertical Speed: displays the vertical speed of the aircraft when ascending or descending. The white
line shows the position of the aircraft in three seconds. The higher the vertical speed, the longer the
white line.
12. Altitude (ALT): displays the altitude of the aircraft relative to the takeo point.
