c. When the compass of the remote controller is working normally, the blue dot shows the

direction of the remote controller. If the signal is poor is during ight, point the arrow of the

remote controller in Navigation Display to the direction of the aircraft.

6. Home Point Distance: displays the horizontal distance between the Home Point and the aircraft.

7. PinPoint Information: displays the name of the PinPoint and the horizontal distance from the aircraft

to the PinPoint, when PinPoint is enabled.

8. Waypoint Information: displays the name of the waypoint, the horizontal distance from the aircraft to

the waypoint, and the ascending or descending trajectory of the ight route, during a mission ight.

9. RNG Target Point Information: displays the horizontal distance from the aircraft to the target point,

when the RNG laser rangender is enabled.

10. Vertical Obstacle Sensing Information: Once an obstacle is detected in the vertical direction, an

obstacle bar icon will appear. When the aircraft reaches the warning distance, the icon will glow

red and orange, and the remote controller will emit long beeping sounds. When the aircraft reaches

the obstacle braking distance, the icon will glow red, and the remote controller will emit short beep

sounds. Both the obstacle braking distance and the warning distance can be set in DJI Pilot 2.

Follow the prompted instructions in the app to set them.

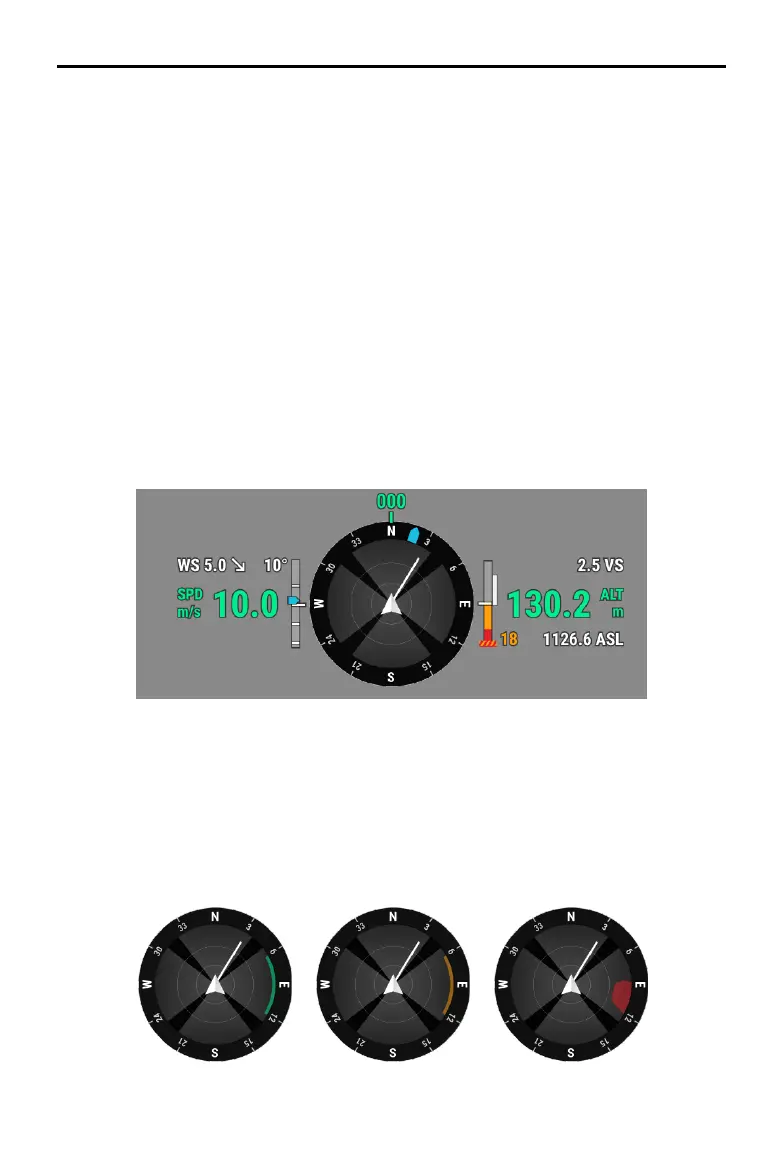

Horizontal Obstacle Sensing Information: The light areas are the obstacle sensing areas of the

aircraft, while the dark areas are the blind spots. During ights, keep the aircraft speed vector line

out of the obstacle-sensing blind spots.

a. If the warning distance set in the app is from 16 m to 33 m, once an obstacle is detected, a

green arc will appear in the direction of the obstacle; when the obstacle reaches the warning

distance, it turns orange; when the obstacle approaches the obstacle breaking distance, it

changes to a red frame.
