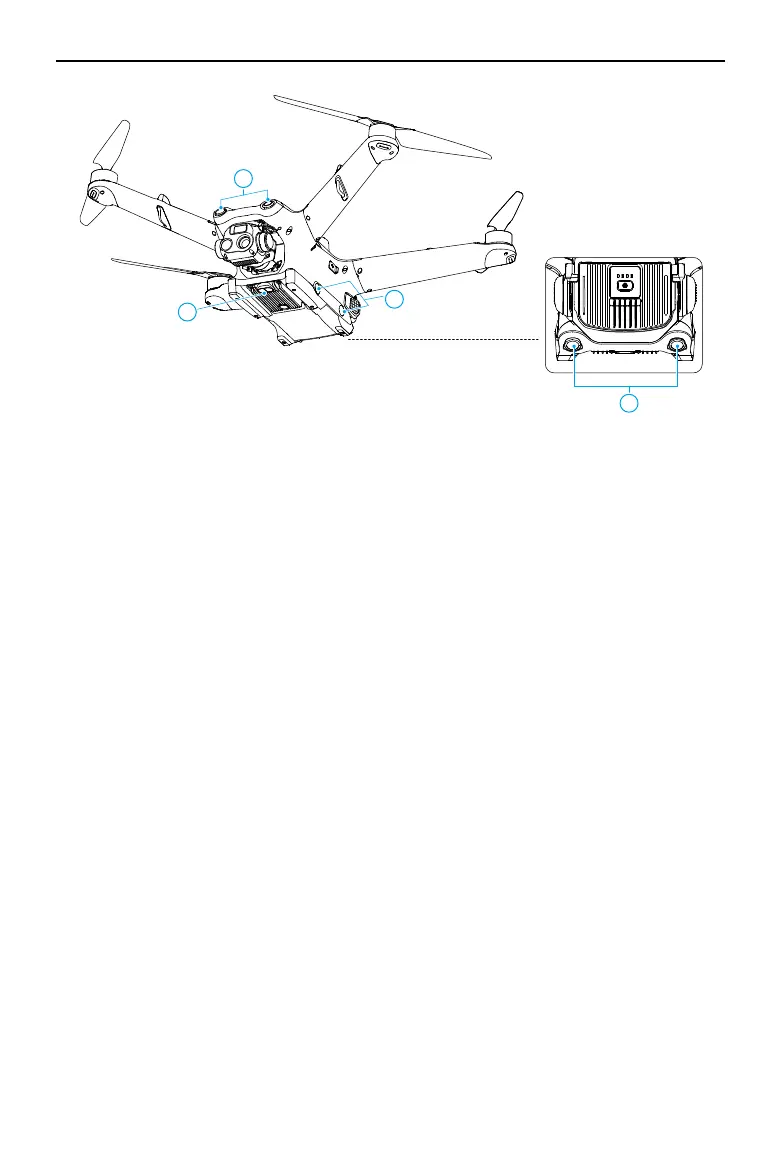

1. Forward and Upward Vision System
2. Lateral Vision System
3. Backward and Downward Vision System
4. Infrared Sensing System
Detection Range
Forward Vision System
Precision Measurement Range: 0.5-21 m; FOV: 90° (horizontal), 90° (vertical)
Backward Vision System
Precision Measurement Range: 0.5-23 m; FOV: 90° (horizontal), 90° (vertical)
Lateral Vision System
Precision Measurement Range: 0.5-15 m; FOV: 104° (horizontal), 90° (vertical)
Upward Vision System
Precision Measurement Range: 0.5-21 m; FOV: 90° (front and back), 90° (left and right)
Downward Vision System
Precision Measurement Range: 0.5-14 m; FOV: 95° (front and back), 110° (left and right) The
downward vision system works best when the aircraft is at an altitude of 0.5 to 30 m.
Infrared Sensing System
Precision Measurement Range: 0.1-8 m (>10% reectivity); FOV: 60° (front and back), 60° (left
and right)
