Simga2N Traction Advanced Manual– V1.3 Page 28 (166) ©2021 DMC GmbH Herten Germany
Wiring of a wig-wag type accelerator

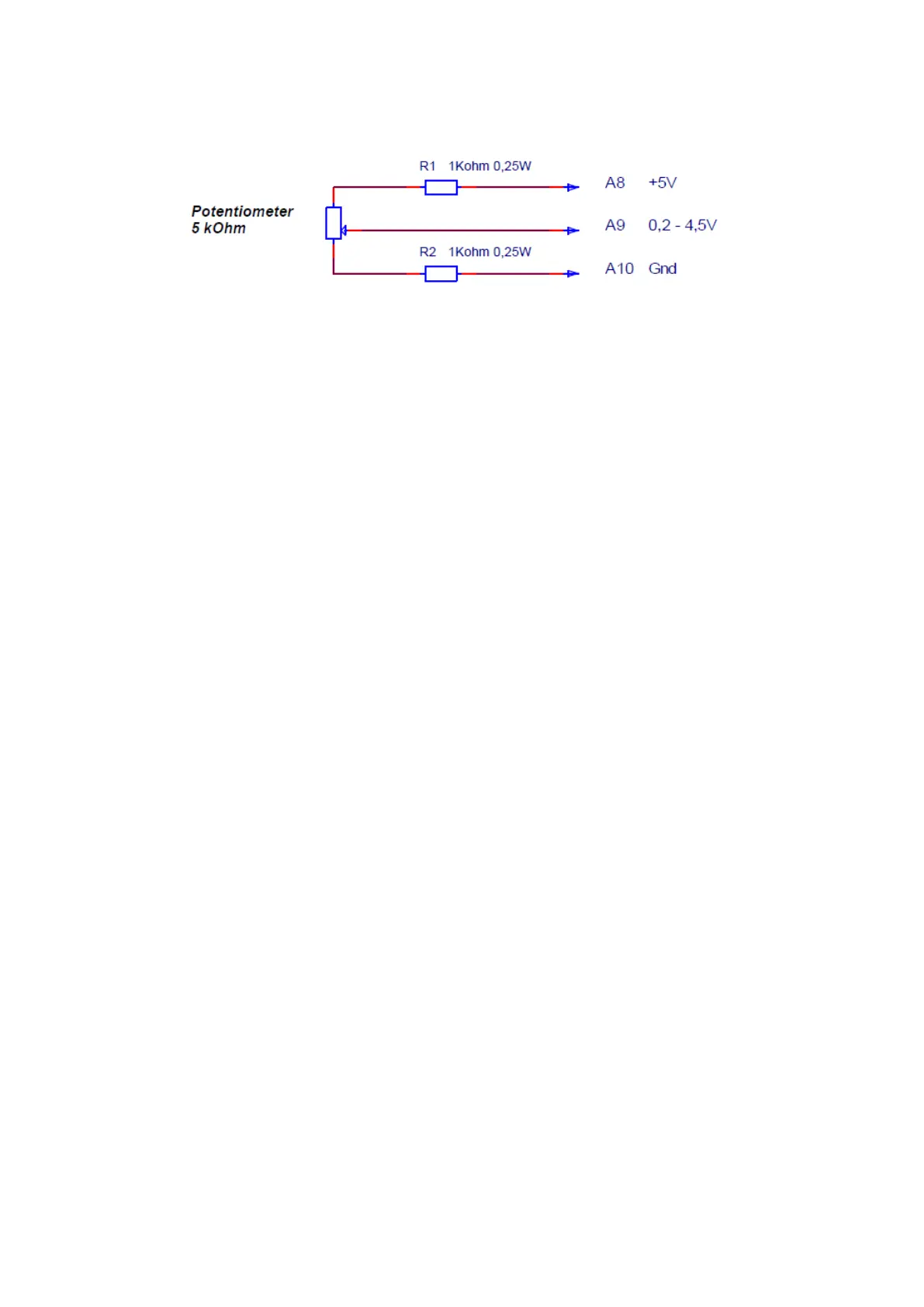

In case a wig-wag has to be wired, it is suggested to add two 1Kohm resistances:
Please notice that the slider voltage has to be >0.2V and <4.8V. The resistances are placed to this mean.
If the voltage exceeds this range, wireoff is detected and F28 S004 happens.
For more information about the wig-wag type potentiometer refer to “M1.6-2 Accelerator type ”AccelTyp””.
