DMC Sigma2N - Menu 1.6 Accelerator

Simga2N Traction Advanced Manual– V1.3 Page 62 (166) ©2021 DMC GmbH Herten Germany
Menu 1.6 “Accelerator”
Cal.
Ref.
Parameter name “Calibrator text”
Range
Step
size
Default
Index
Sub-
index
1
Accelerator characteristic “Lin/Curv”
0 – 1
1
0
0x2009
0x1
2
Accelerator type ”AccelTyp”
0 – 1
1
0
0x2009
0x2
3
Accelerator Damping Factor ”AccDamp”
1 - 120
1
1
0x2009
0x3
4
Accelerator pot minimum voltage level “AccMin”
0.0V – 10V
0.1V
0.4V
0x200A
0x1
5
Accelerator pot maximum voltage level “AccMax”
0.0V – 10V
0.1V
4.6V
0x200A
0x2
6
Accelerator/Neutral braking threshold “AccNBThr”
0.0% - 15.0%
0.1%
0.5%
0x2009
0x4
7
Wig/Wag forward threshold ”FwdTH”
0.0V – 10V
0.1V
3.0V
0x2009
0x5
8
Wig/Wag reverse threshold ”RevTH”
0.0V – 10V
0.1V
2.0V
0x2009
0x6
M1.6-1 Accelerator characteristic “Lin/Curv”
This parameter defines the accelerator pedal characteristic: Linear or Curved.
• If set to 0, the controller will apply a linear accelerator input.
• If set to 1, the controller will apply a curved accelerator input.

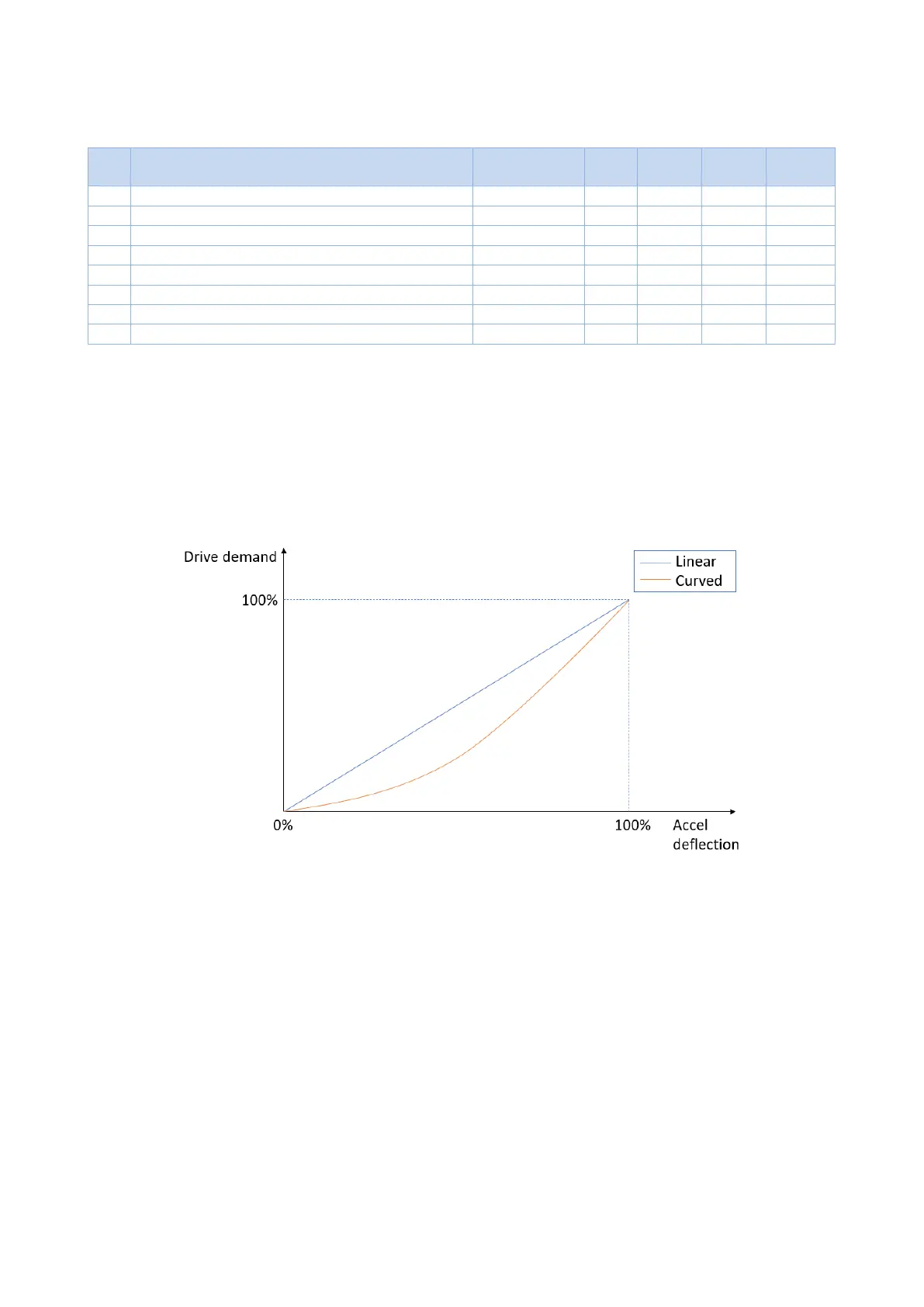

The definition of each type is detailed below:
Linear: For input values of 0%, 50% and 100%, the output will be 0%, 50% and 100%.
Curved: For input values of 0%, 50% and 100%, the output will be 0%, 25% and 100%.
•
M1.6-2 Accelerator type ”AccelTyp”
This set the acceleration type.
• If set to 0 (normal), a normal accelerator that can operate with direction switches is selected.
• If set to 1 (wig-wag), a Wig Wag accelerator is selected and no direction switch is required. The voltage
admitted range is from 0.2V to 4.5V. For a proper operation, the wig-wag potentiometer connected
to “Pin A9 Analogue AD1 i/p Accelerator -- Potentiometer” has to operate within this range. Also
parameter “M1.6-4 Accelerator pot minimum voltage level “AccMin”” has to be higher than 0.2V and
parameter “M1.6-5 Accelerator pot maximum voltage level “AccMax”” has to be lower than 4.5V. Both
have to correspond to the actual wig wag potentiometer accelerator range.
The wig-wag behavior is represented in the following image:
