SuperSigma2 AM PMS – V1.5.6 17-1-2020 Page 16 (97) ©2019 DMC GmbH Herten Germany

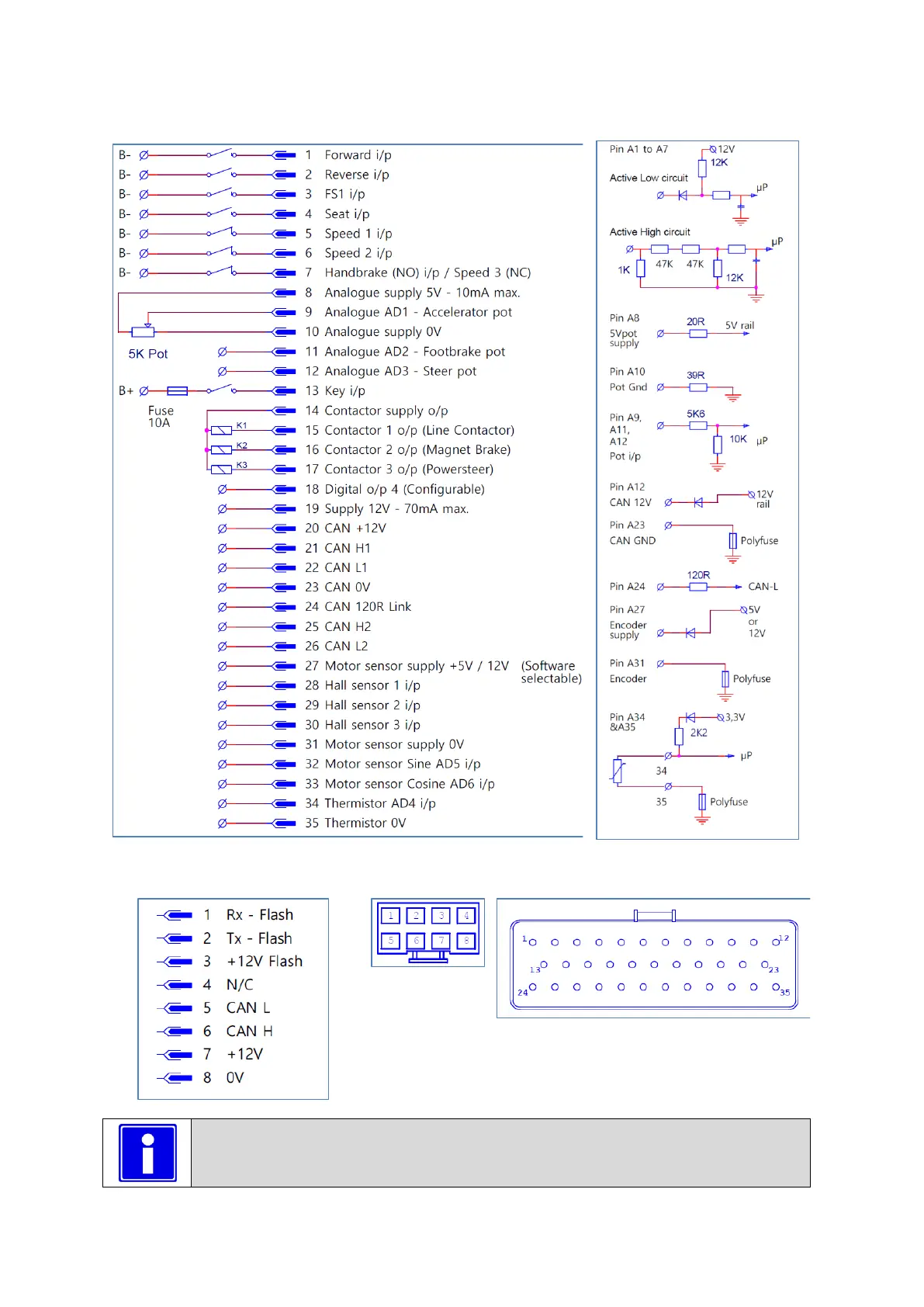

2.1 Light Wiring of PMS controller
2.1.1 Connectors’ pin assignment for Traction
Connector A - Vehicle Interface - 35 Way (AMP SEAL Series):
Connector B - Communications - 8
Way:
8 Way pin
layout:
35 Way pin layout:
Most inputs are Normally Open (NO) except for the speed inputs, these are Normally Closed
(NC)
