2.1.3 Connectors’ pin assignment for Pump

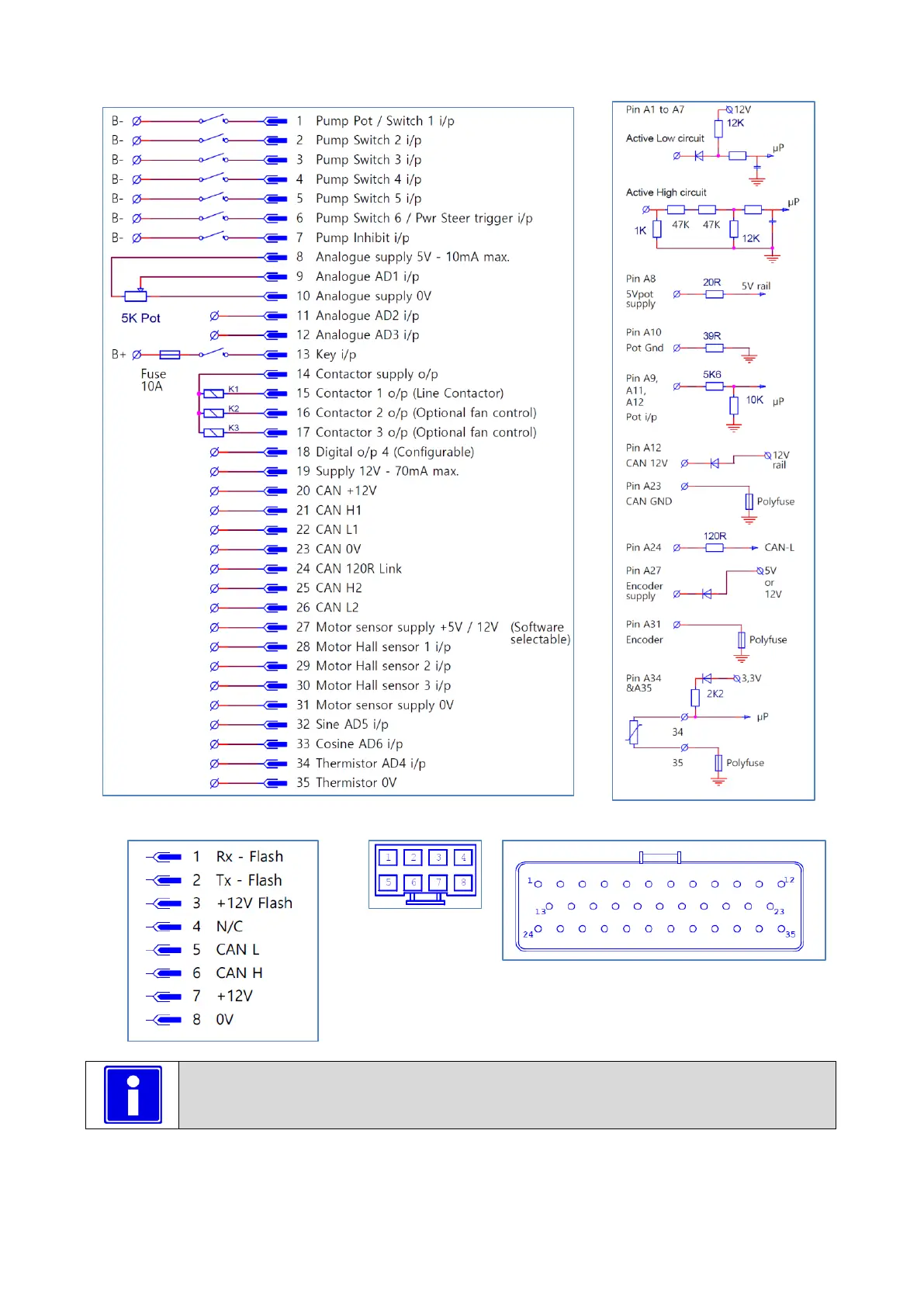

Connector A - Vehicle Interface - 35 Way (AMP SEAL Series):

Internal circuits:

Connector B - Communications - 8 Way:

8 Way pin layout:

35 Way pin layout:

For pump controllers “Pump switch 6” and “Pump inhibit” are active low. In “Menu 3 “Controller

Setup for Pump”” it is possible to change them to active high.
