Installation
XR2400F Installation
Guide
2500 N. Partnership Boulevard Springfield, MO 65803 www.dmpnet.com Digital Monitoring Products
Telephone RJ Connector
7.1 Description
Connect the XR2400F system to two lines of the public telephone network by installing two DMP 356 RJ Cables
between the RJ31X or RJ38X phone jacks and the 893's J4 connector (for main line) and J5 (for backup line).
Set the 3-pin headers labeled J11 and J12 on the XR2400F to DD for digital dialer, Contact ID, or Modem IIe
operation. See 893A Dual Phone Line Module.

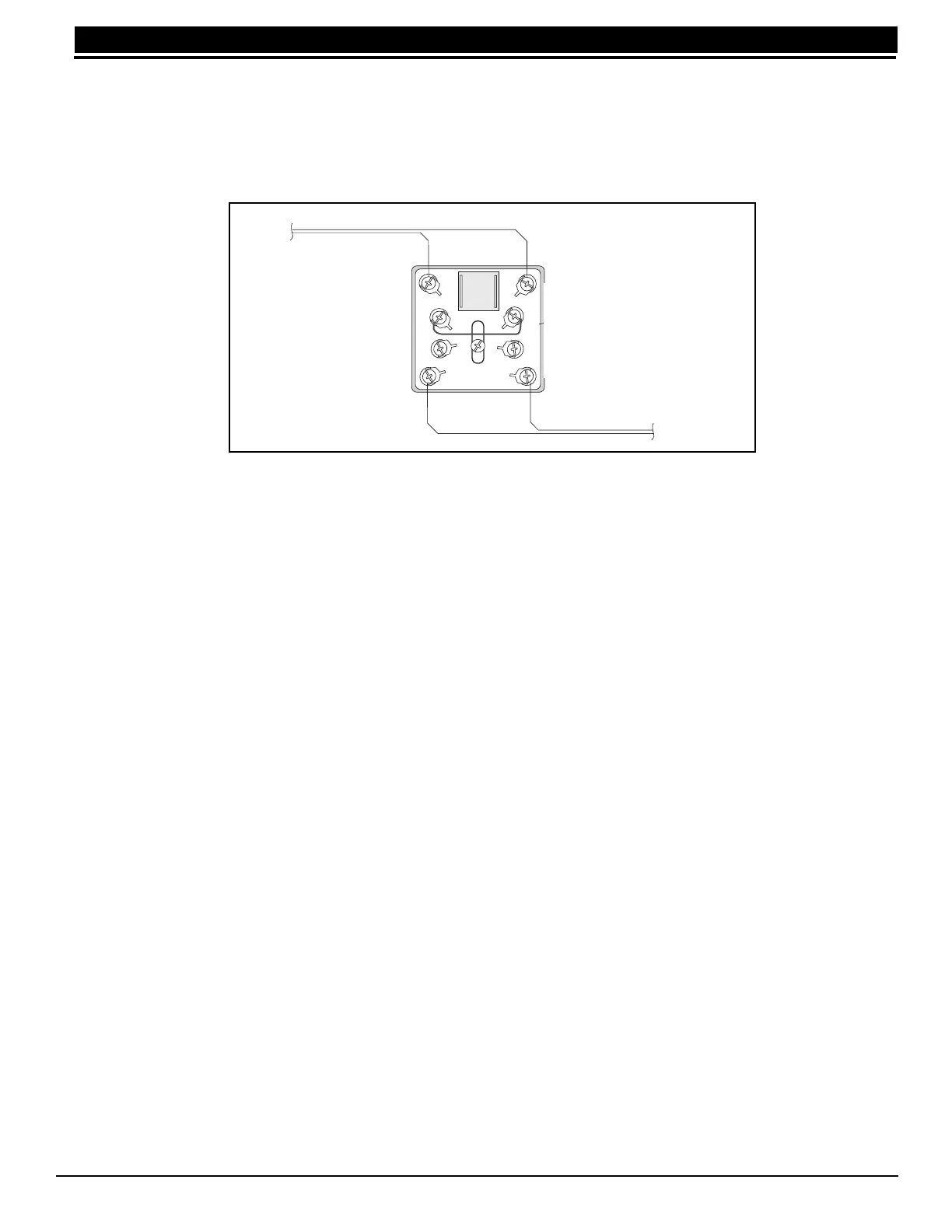

Figure 7: Phone Jack Wiring
7.2 FCC registration
The Model XR200/XR2400F complies with FCC part 68 and is registered with the FCC. Registration number:
CCKUSA-18660-AL-R / Ringer Equivalence: 1.1B
7.3 Notification
Registered terminal equipment must not be repaired by the user. In case of trouble, the device must be
immediately unplugged from the telephone jack. The factory warranty provides for repairs. Registered terminal
equipment may not be used on party lines or in connection with coin telephones. Notification must be given to
the telephone company of:
a. The particular line(s) the service is connected to
b. The FCC registration number
c. The ringer equivalence
d. The make, model, and serial number of the device
7.4 Ground start
Ground start phones cannot be used on commercial or residential fire applications.
893A Dual Phone Line Module
8.1 Description
The 893A is a dual telephone line supervision module that allows the panel to indicate a phone line failure to the
premises and the central monitoring station. After the 893A senses a failure on the main line, it switches to the
backup, or secondary, phone line. The 893A is installed on the left side of the XR2400F enclosure.
8.2 Connection
The 893A connects the panel to the public telephone network by installing a DMP 356 RJ Cable between the
XR2400F panel's J3 connector and the 893's J3 connector labeled PANEL. The two communication jumpers
must be set to either DD or MPX.
1
2
3
4
5
6
7
8
Tip 1
Tip
Ring
Ring 1
To TELCO Line
To Premises Phone
Place a jumper across
terminals 2 and 7 to provide
phone jack supervision. Loss
of the jumper shows as a
phone trouble on the
Security Command keypad
display.
RJ31X or RJ38X
phone jack
