Installation
XR2400F Installation Guide
Digital Monitoring Products www.dmpnet.com 2500 N. Partnership Boulevard Springfield, MO 65803
Expansion
14.1 Expansion zones
Up to 232 additional fire and burglary zones are available on the XR2400F using the remote zone capability of
keypads and zone expander modules. The panel's keypad data bus supports up to eight supervised device
addresses with each address supporting up to four programmable expansion zones.
Up to 200 zones are available using the Model 460 Interface Adaptor, 462N, 462P, 472, or 481 Interface Cards,
and any combination of sixteen, eight, four, and single point zone expander modules and single point LX-Bus™
detectors.
Combined current requirements of additional modules may require an additional 504-24 or 502-12 power supply.
See section Standby Battery Calculations when calculating power requirements.
14.2 Output (relay) expansion
In addition to the two SPDT relays and eight voltage outputs on board the XR2400F, you can also connect up to
25 Model 716 Output Expanders to each card's LX-Bus™. These modules can provide an additional 200
programmable SPDT relays. The XR2400F provides 50 Output Schedules you can use for programming the 716
to perform a variety of annunciation and control functions. You can also assign the 716 outputs to any of the
panel's Output Options such as Fire Alarm, Communication Fail, or Phone Trouble Outputs.
The LX-Bus also supports the Model 717 Graphic Annunciator Module. Each 717 module supplies 20 switched
ground outputs that follow the state of their assigned zones.

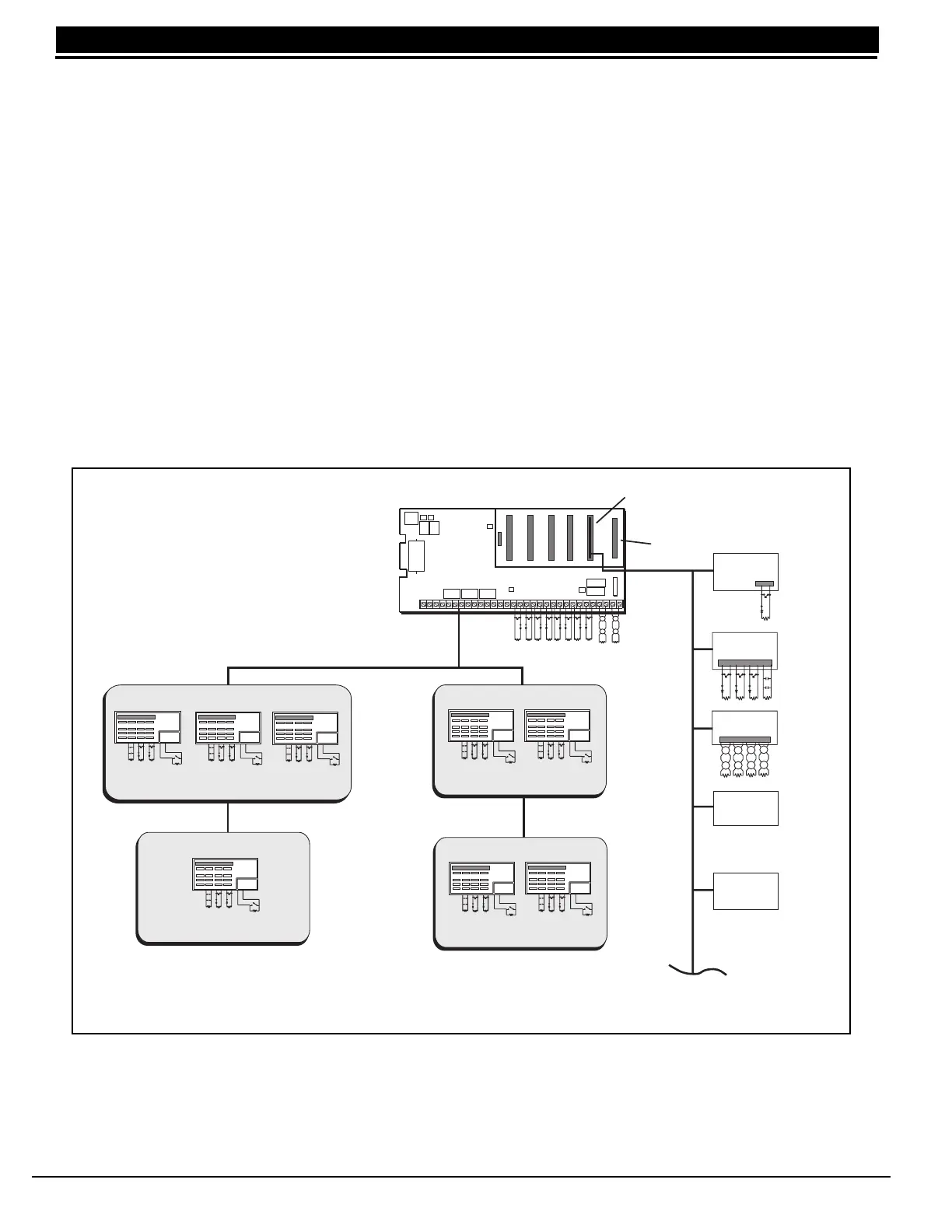

Figure 12: Typical XR2400F Expansion
AC BELL
AC
1
2
34567 89
10
11
12
13
14 15
16
17 18 19
GND
YEL GRN BLKB + B - SMK L5+ L5- L1 L2 L3 L4GNDGND
XR200 Command Processor System
Partition 1
Up to eight areas
Partition 2
Up to four areas
ARM
DISARM
ARM
DISARM
Partition 4
Up to four areas
ARM
DISARM
ARM
DISARM
Partition 3
Up to four areas
ARM
DISARM
ARM
DISARM
ARM
DISARM
ARM
DISARM
MODEL 717
ANNUNCIATOR
MODULE
MODEL 714
ZONE
EXPANDER
MODEL 715
ZONE
EXPANDER
MODEL 711
ZONE
EXPANDER
460
Interface
Adaptor
Up to 200 zones and outputs when
using two LX-Busª cards
462N, 462P, 472, or 481
Expansion Interface Card
MODEL 716
OUTPUT
EXPANDER
XR2400F System
