Installation
XR2400F Installation Guide
Digital Monitoring Products www.dmpnet.com 2500 N. Partnership Boulevard Springfield, MO 65803
Mounting
2.1 Mounting the enclosure
The XR2400F must be mounted in a secure, dry location to protect the unit from damage due to tampering and
the elements. The enclosure can be either flush mounted or surface mounted and includes a hinged door with
lock. A hole has been cut in the enclosure door to allow access to the Fire Command Center without opening
the door. Below are the mounting hole locations for the panel's enclosure.

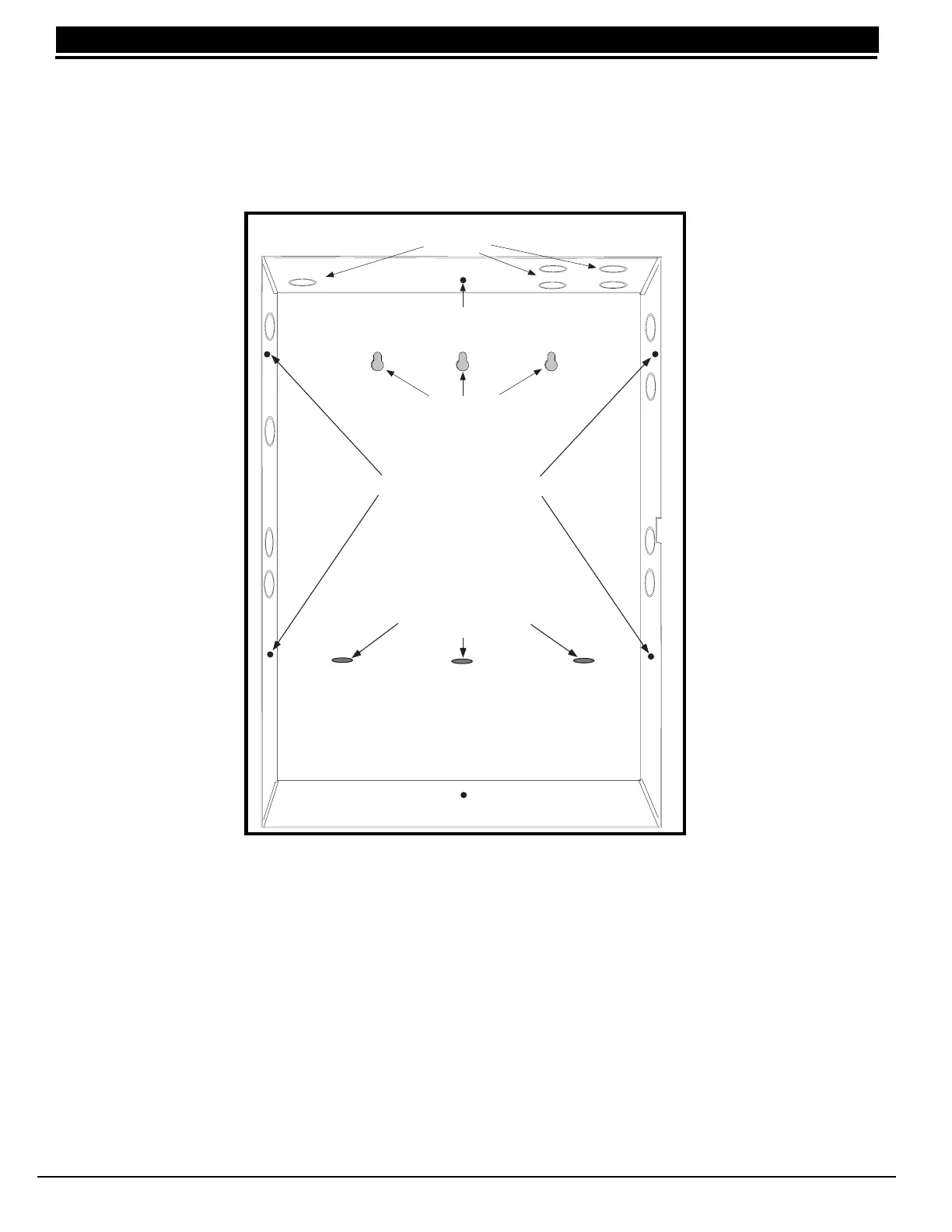

Figure 1: Enclosure Mounting Diagram
2.2 Surface mounting
The center hole of the enclosure should be attached to a stud in the wall. Due to the weight of the enclosure,
especially the batteries, it is extremely important to mount the enclosure on the stud. Attach the two holes
beside the center hole to sheetrock to secure enclosure. When mounting the enclosure, be sure to leave room
for the panel door to swing open. The door's lock should be in an easily accessible place.
2.3 Flush mounting
The enclosure can also be flush mounted (recessed in the wall). 1" screws should be used to secure the
enclosure between two studs using the two sets of holes on the sides of the enclosure.
2.4 The Fire Command Center LCD Keyboard
A Fire Command Center has been factory installed in the XR2400F panel. The keyboard is mounted on a metal
backplate. A hole has been cut into the enclosure door to allow users to control the XR2400F without opening
the enclosure door. Also, a keyswitch has been installed and pre-wired to the left of the keyboard. The user
can turn the keyswitch to enable the four functions keys without opening the enclosure door.
3/4" x 1/2"
Knockouts
Holes for 1" screws when
Flush mounting the enclosure
Additional mounting holes
for Surface mounting
Mounting holes for
Surface mounting.
Hole for Flush mounting
Hole for Flush mounting
