Installation
26
XR2400F Installation Guide
Digital Monitoring Products www.dmpnet.com 2500 N. Partnership Boulevard Springfield, MO 65803
Reset and Tamper Headers
24.1J16 Reset Header
The reset header is located just above the terminal strip on the right side of the circuit board and is used to reset
the microprocessor of the XR2400F. To reset the panel when first installing the system, install the reset jumper
before applying power to the panel. After connecting the AC and battery, remove the reset jumper.
To reset the panel while the system is operational (for example, prior to reprogramming), install the reset jumper
without powering down the system. Remove the reset jumper after one or two seconds.
After resetting the panel, you must begin programming within 30 minutes. If you wait longer than 30 minutes,
you will have to reset the panel again.
24.2J4 Tamper Header
The J4 header is for use with the optional DMP 306 Tamper Harness. The harness connects to one or more
tamper switches mounted inside the panel enclosure to supervise against unauthorized opening or removal of
the enclosure. Refer to the wiring diagram on the enclosure door for correct tamper switch wiring.
How the tamper works
If the enclosure is opened or removed while one or more of the system's areas are armed, a panel tamper alarm
is indicated. If all areas are disarmed, a panel tamper trouble is indicated.

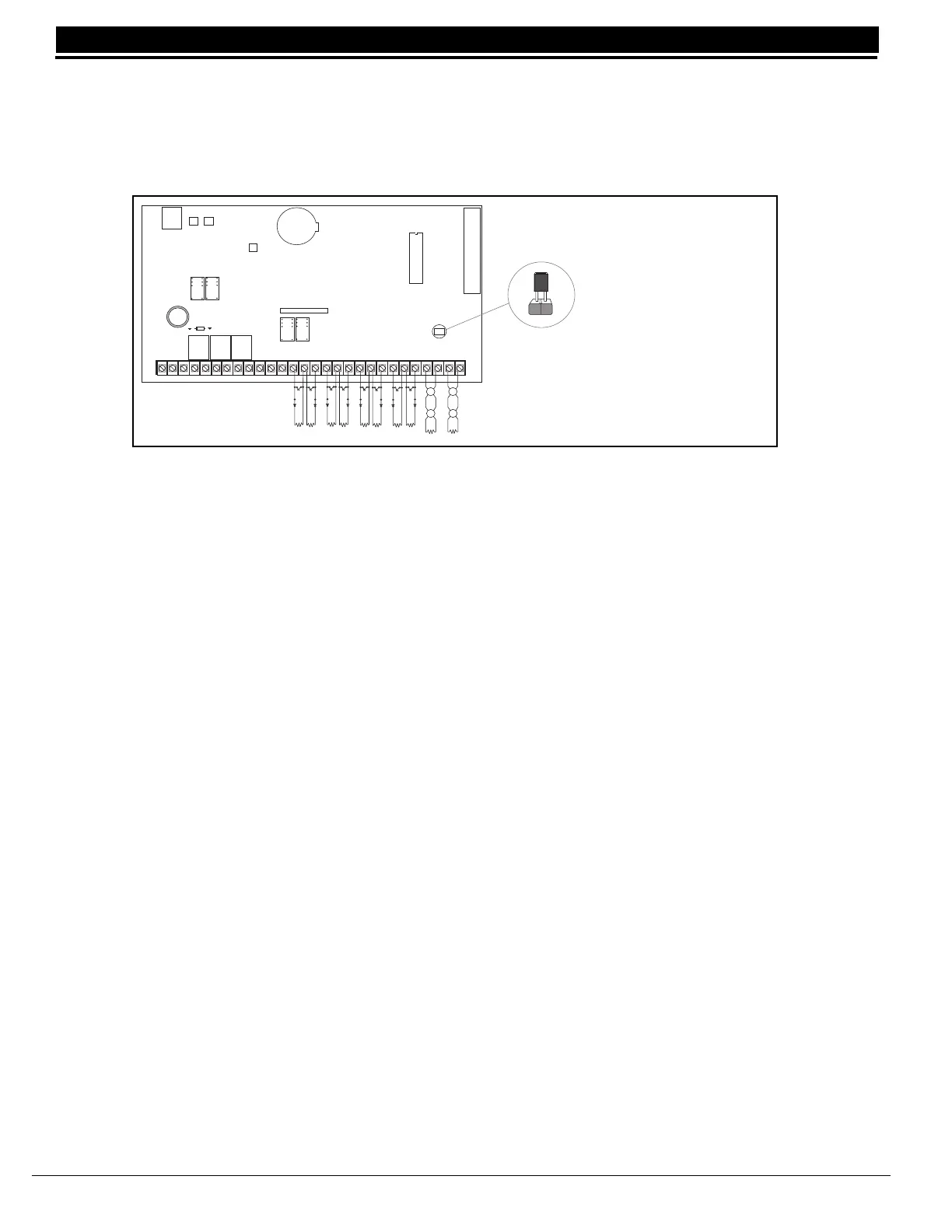

Figure 15: XR2400F panel showing reset
J16
Command Processor Reset
AC
1
234
56
78
10 11 12
13
14
15
16
17
18
19
AC +B -B
BELL
GNDSMK
GND
9
RED
YELGRN BLK
20
21
22 23 24 25
26
27 28
L1 L2
GND
GND
GND
GND
L3
L4 L5 L6 L7 L8 L9- L9+ L10-L10+
Momentarily place the Reset
Jumper over the J16 pins to
reset the panel.
