CAUTION: The propeller shaft universal joint straps
must be replaced. The straps slightly deform when
torqued in place. Reuse of the straps may result in
reduced clamp load on the universal joint cap.

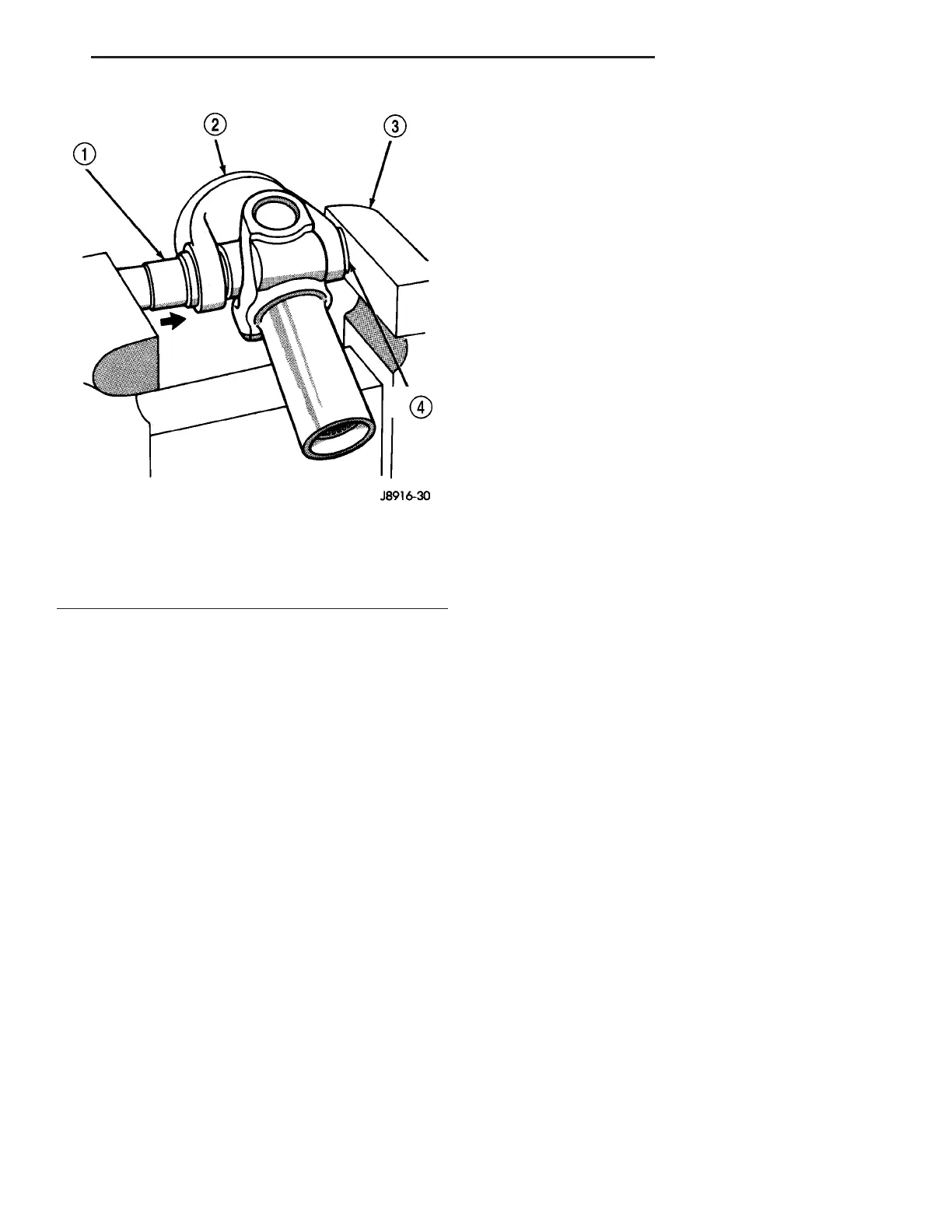

Fig. 11 BEARING CAP INSTALLATION
1 - DRIVER SOCKET WRENCH
2 - YOKE
3 - VISE
4 - BEARING CAP
ZB PROPELLER SHAFT 3 - 7
SINGLE CARDAN UNIVERSAL JOINTS (Continued)
