REMOVAL
(1) Remove the air cleaner housing (Refer to 9 -
ENGINE/AIR INTAKE SYSTEM/AIR CLEANER
HOUSING - REMOVAL).
(2) Release the belt tension by rotating the ten-
sioner counterclockwise with a 15 mm wrench on
the tensioner pulley bolt. Rotate belt tensioner until
belt can be removed from pulleys (Fig. 1).
(3) Remove belt.
(4) Gently release tensioner.
(5) If belt tensioner removal is necessary, remove
tensioner mounting nut (Fig. 2).
INSPECTION
Satisfactory performance of the belt driven accesso-
ries depends on belt condition and proper belt ten-
sion.
Belt replacement under any or all of the following
conditions is required:
• Excessive wear.
• Frayed cords.
• Severe glazing.
The Poly-V belt with a back driven pulley may
develop minor cracks across the ribbed side (due to
reverse bending). These minor cracks are considered
normal and acceptable. Parallel cracks are not (Fig.
3).

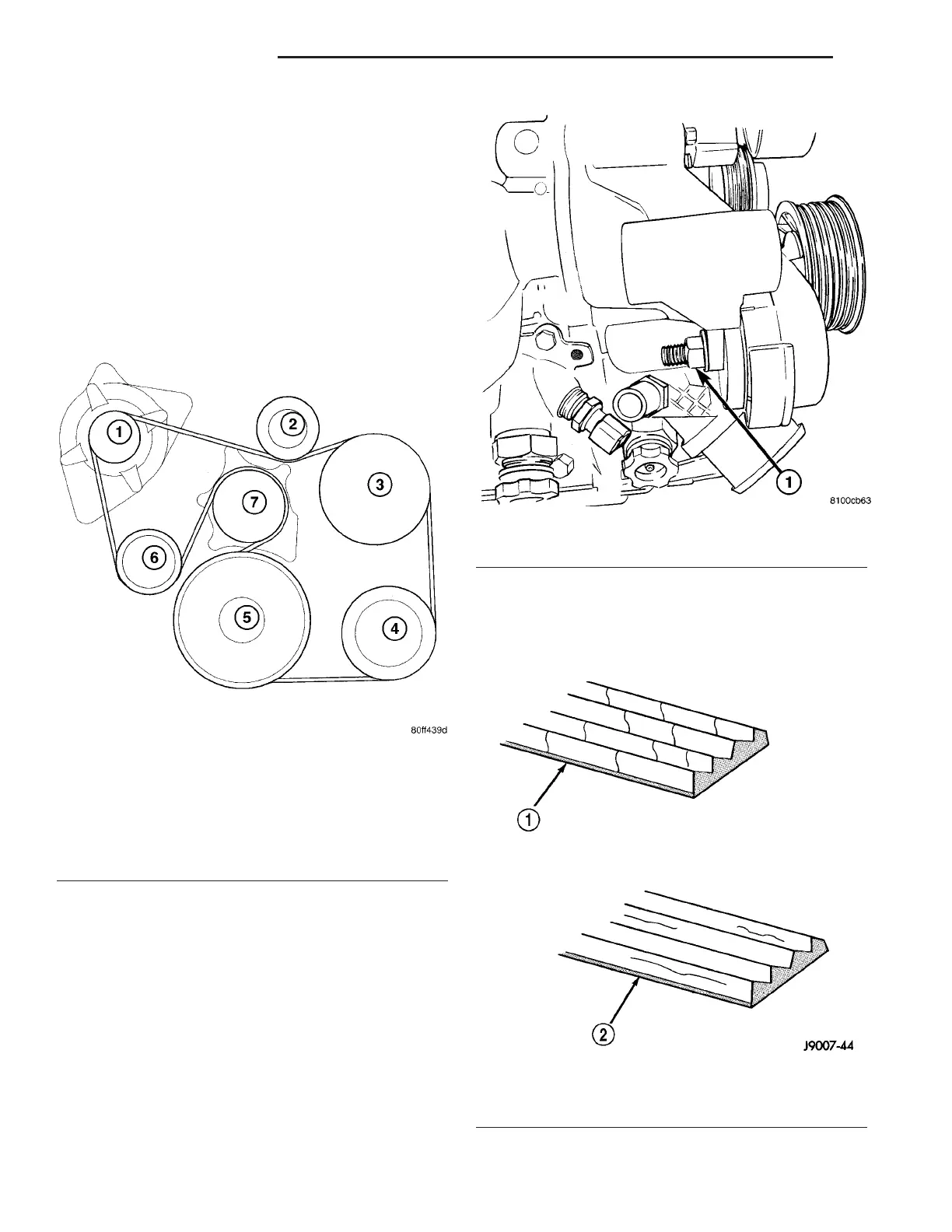

Fig. 1 Accessory Drive Belt Routing
1 - GENERATOR
2 - IDLER PULLEY
3 - POWER STEERING PUMP
4 - A/C COMPRESSOR
5 - CRANKSHAFT
6 - BELT TENSIONER
7 - WATER PUMP
Fig. 2 Accessory Drive Belt Tensioner Mounting Nut
1 - MOUNTING NUT
Fig. 3 Drive Belt Inspection
1 - NORMAL CRACKS BELT OK
2 - NOT NORMAL CRACKS REPLACE BELT
