Dodge ZB 2005 - Page 231

REMOVAL
DOOR SPEAKER
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the speaker grill fasteners (Fig. 8).
(3) Remove the speaker fasteners.
(4) Disconnect the wire harness connector and
remove speaker.
INSTRUMENT PANEL SPEAKER
(1) Disconnect and isolate the battery negative
cable.
(2) Using a trim stick, remove the speaker grill
(Fig. 9).
(3) Remove the speaker fasteners.
(4) Disconnect the wire harness connector and
remove speaker.
REAR SPEAKER
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the bulkhead quarter trim panel (Refer
to 23 - BODY/INTERIOR/BULKHEAD TRIM PANEL
- REMOVAL).
(3) Remove the mounting fasteners.
(4) Disconnect the electrical harness connector and
remove speaker (Fig. 10).
SUB WOOFER
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the bulkhead quarter trim panel (Refer
to 23 - BODY/INTERIOR/BULKHEAD TRIM PANEL
- REMOVAL).
(3) Remove the mounting fasteners (Fig. 11).
(4) Disconnect the electrical harness connector and
remove subwoofer.
INSTALLATION
DOOR SPEAKER
(1) Connect wire harness connector and position
speaker.
(2) Install mounting fasteners. Tighten to 3 N·m
(24 in. lbs.).
(3) Install the speaker grill mounting fasteners.
(4) Connect the battery negative cable.

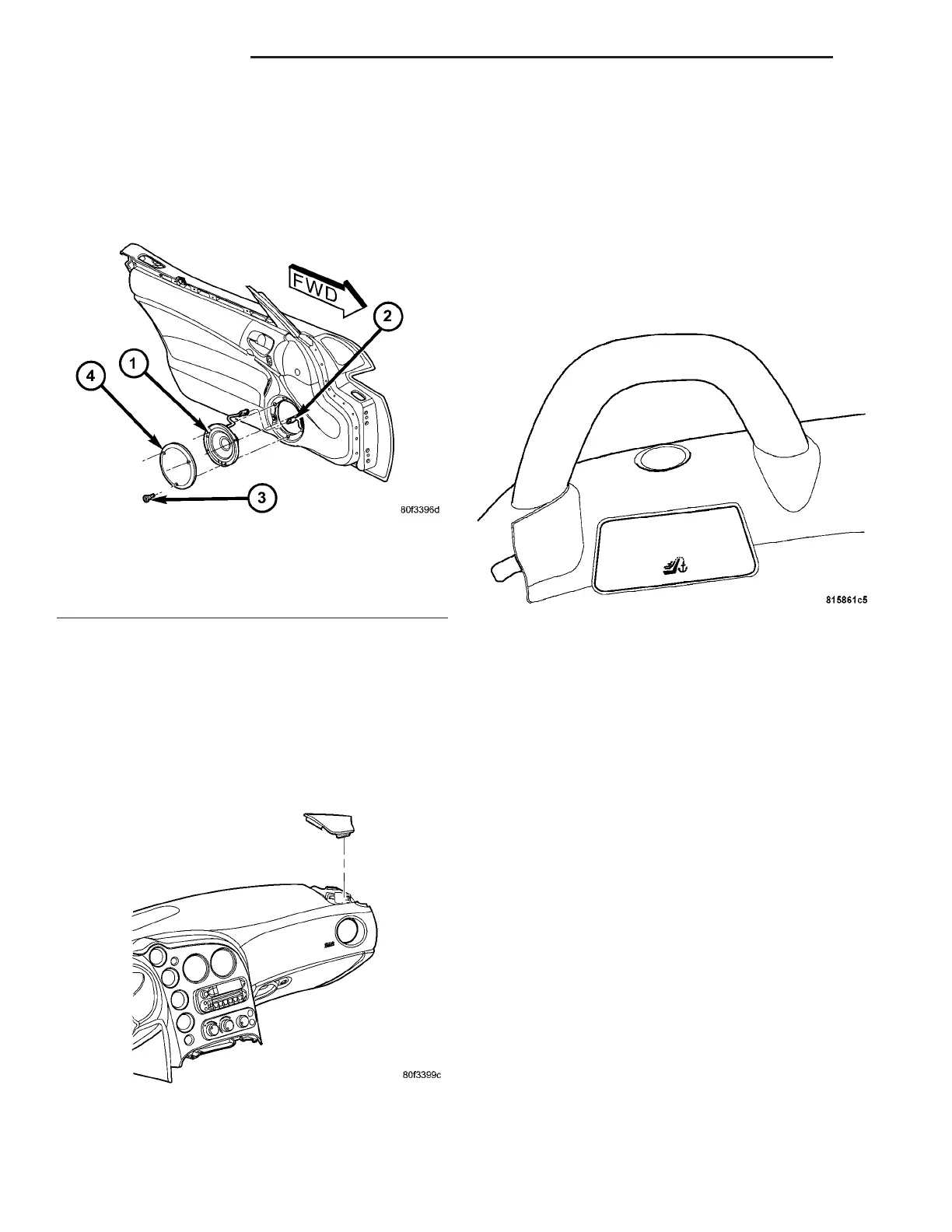

Fig. 8 DOOR SPEAKER
1 - DOOR SPEAKER
2 - ELECTRICAL HARNESS CONNECTOR
3 - MOUNTING SCREW
4 - SPEAKER GRILL
Fig. 9 INSTRUMENT PANEL SPEAKER
Fig. 10 REAR SPEAKER
8A - 10 AUDIO/VIDEO ZB
SPEAKER (Continued)
