BATTERY TRAY
DESCRIPTION
The battery is placed in a stamped metal tray
located in the trunk. (Fig. 11). The battery tray is
welded in place and cannot be removed from the
vehicle.
OPERATION
The battery tray provides a secure mounting loca-
tion and supports the battery. The battery tray also
provides the anchor point for the battery holddown
hardware. The battery tray and the battery hold-
down hardware combine to secure and stabilize the
battery in its mounting location, which prevents bat-
tery movement during vehicle operation. Unre-
strained battery movement during vehicle operation
could result in damage to the vehicle, the battery, or
both.

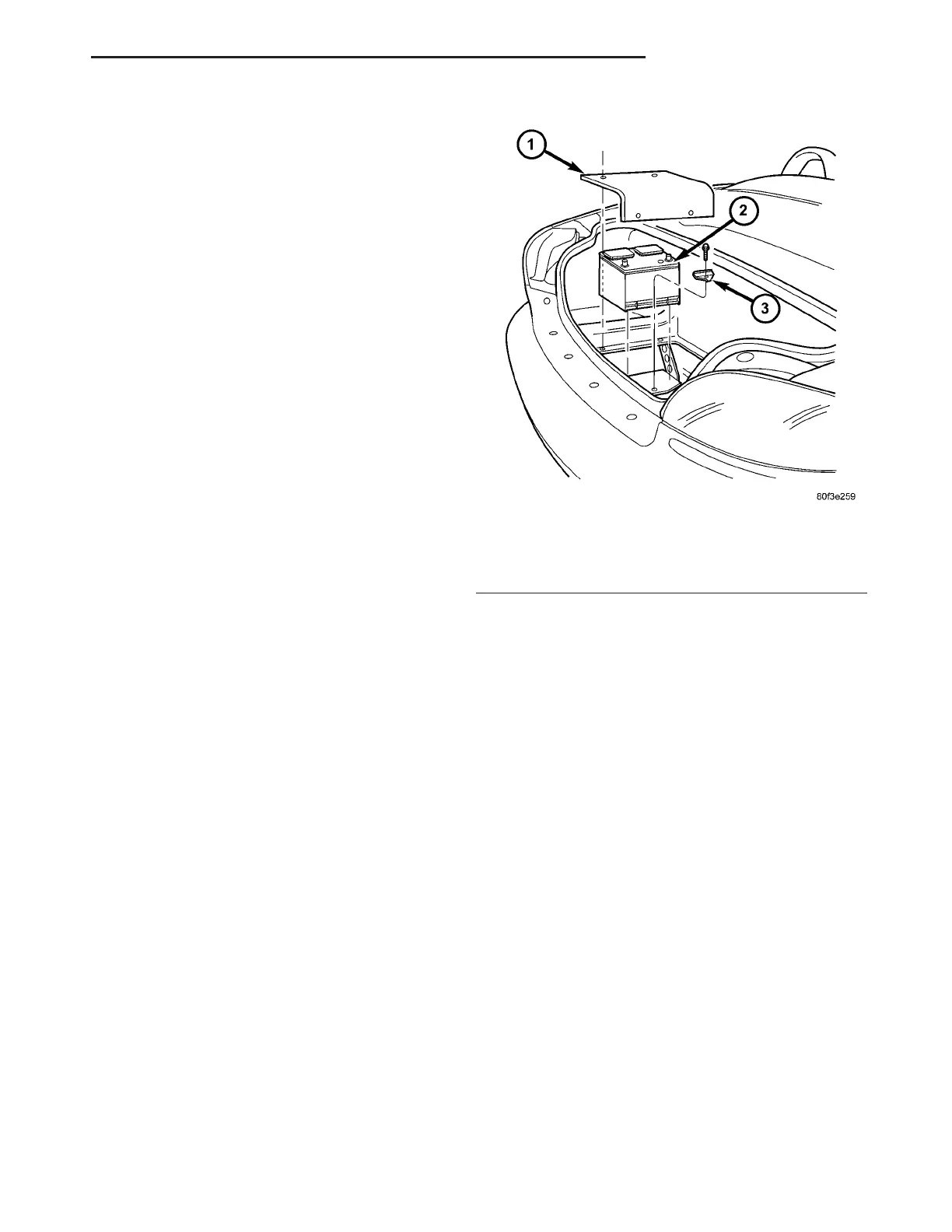

Fig. 11 BATTERY LOCATION
1 - BATTERY COVER
2 - BATTERY
3 - HOLDDOWN BRACKET
