CHARGING
TABLE OF CONTENTS
page page
BATTERY TEMPERATURE SENSOR
OPERATION ...........................16
REMOVAL .............................16
INSTALLATION .........................16
GENERATOR
DESCRIPTION .........................16
OPERATION ...........................17
REMOVAL .............................17
INSTALLATION .........................18
VOLTAGE REGULATOR
DESCRIPTION .........................18
OPERATION ...........................18
BATTERY TEMPERATURE
SENSOR
OPERATION
The battery temperature sensor is used to deter-
mine the battery temperature and control battery
charging rate. This temperature data, along with
data from monitored line voltage, is used by the PCM
to vary the battery charging rate. System voltage will
be higher at colder temperatures and is gradually
reduced at warmer temperatures.
The sensor is located on the inboard side of the
battery tray, and makes contacts with the side of the
battery.
REMOVAL
(1) Make sure ignition switch is in the OFF posi-
tion and all accessories are OFF.
(2) Refer to the Battery section for removal of bat-
tery (Fig. 1) to access the battery temperature sensor.
(Fig. 2)
(3) Disconnect electrical connector.
(4) Remove Battery Temperature Sensor from bat-
tery tray.
INSTALLATION
(1) Install Battery Temperature Sensor to battery
tray.
(2) Connect electrical connector
(3) Install Battery refer to the Battery section for
battery installation.
GENERATOR
DESCRIPTION
The generator is belt-driven by the engine. It is
serviced only as a complete assembly. If the genera-
tor fails for any reason, the entire assembly must be
replaced. The generator produces DC voltage.

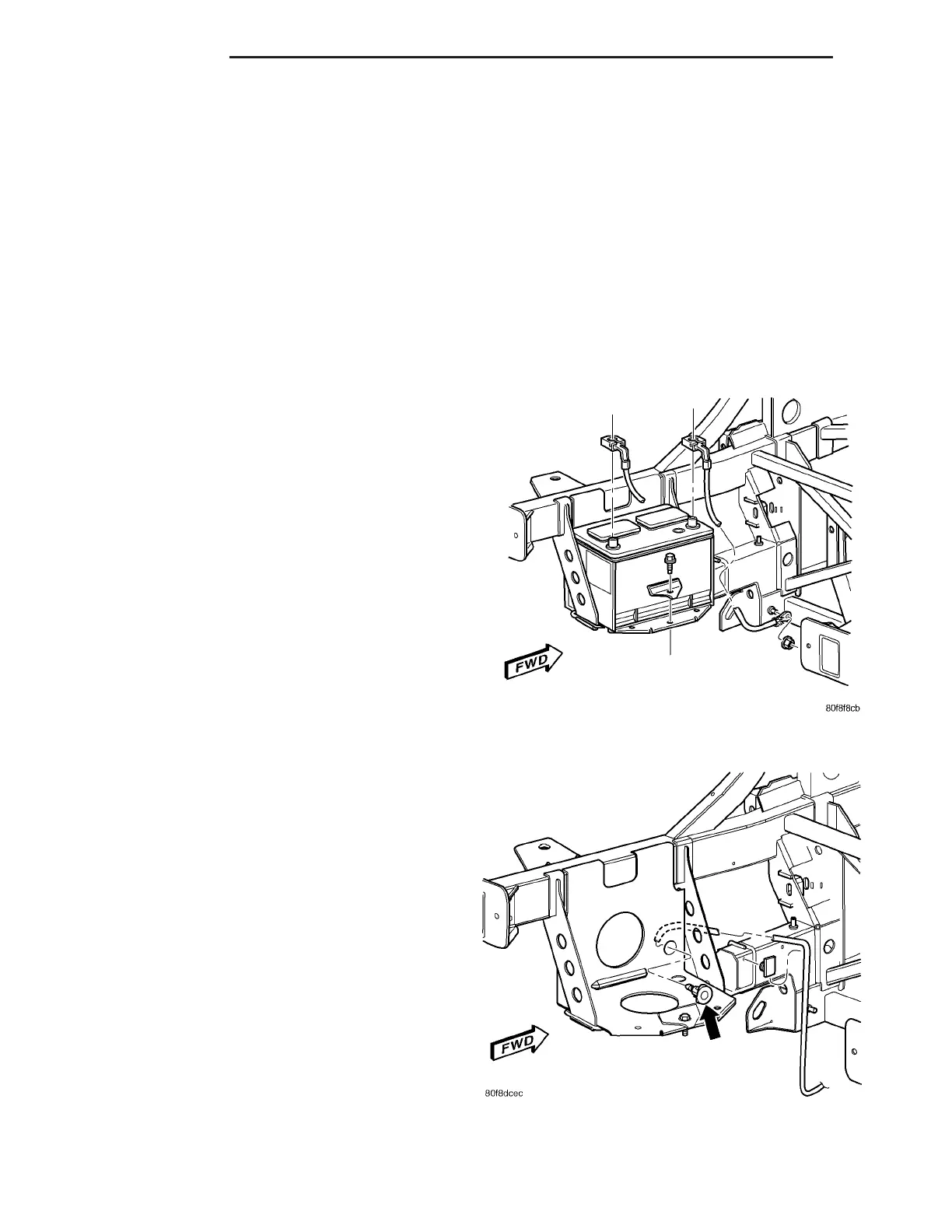

Fig. 1 BATTERY HOLD DOWN
Fig. 2 BATTERY TEMPERATURE SENSOR
8F - 16 CHARGING ZB
