(6) Twist and remove the ignition cables from the
ignition coil.
(7) Remove the 4 bolts (Fig. 9).
(8) Remove ignition coil.
INSTALLATION
The system uses two epoxy filled coil packs
mounted on engine block post (Fig. 10) under the
intake manifold. The rear coil pack, contains 3 sepa-
rate coils and fires cylinders 1, 2, 3, 4, 6, and 7. The
front coil pack, contains 2 individual coils and fires
cylinders 5, 8, 9, and 10.
(1) Install coil packs. Tighten mounting screws to
11 N·m (95 in. lbs.) torque.
(2) Install ignition cables to ignition coil.
(3) Connect and lock the electrical connector at the
ignition coils (Fig. 7) and (Fig. 8).
(4) Install Intake Manifold, refer to the Engine/
Manifolds/Intake Manifold for more information.
(5) Install Air Cleaner Assembly, refer to the
Engine/Air Intake section for more information.
(6) Connect the negative battery cable.
(7) Use the DRBIIIt Scan Tool ASD Fuel System
Test to pressurize the fuel system. Check for leaks.

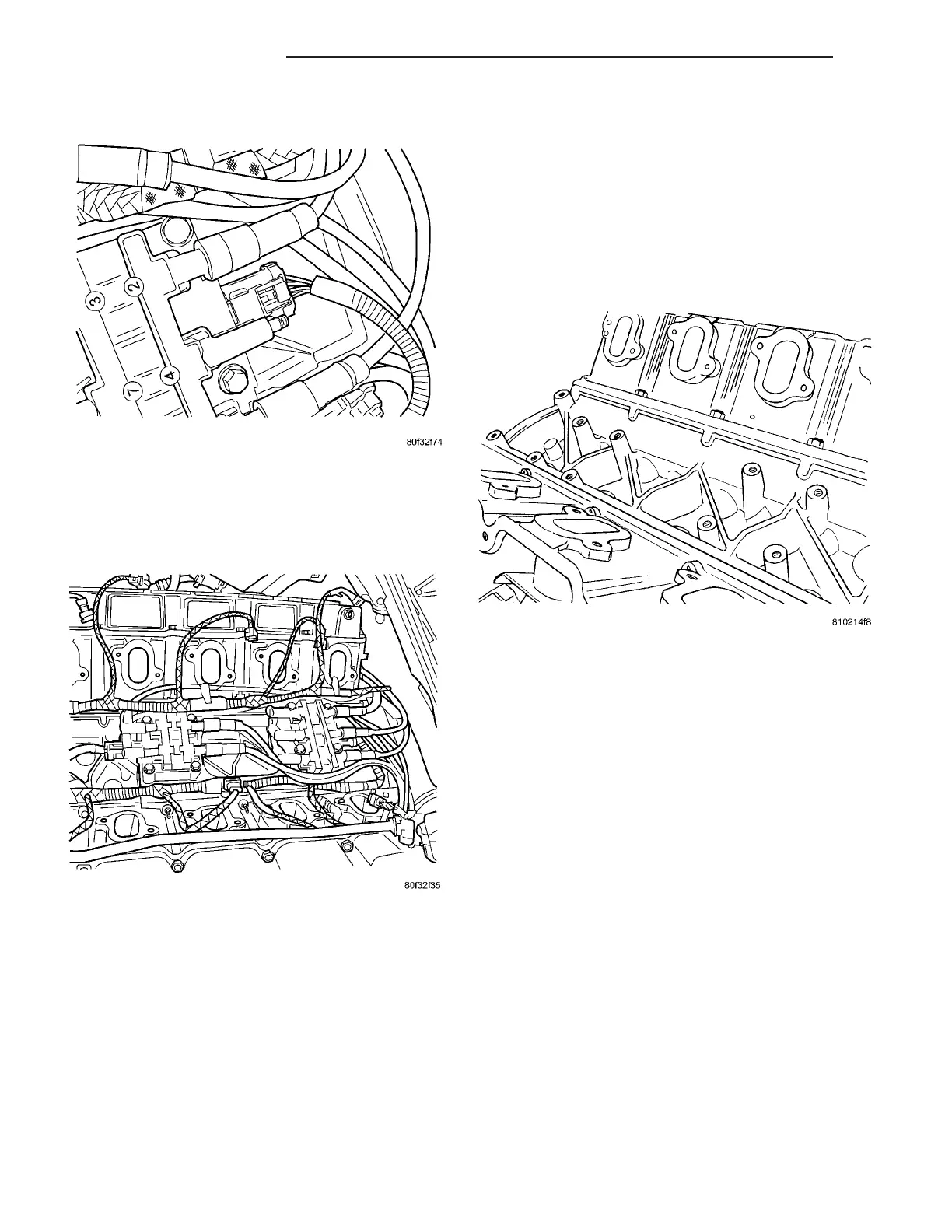

Fig. 8 REAR COIL ELECTRICAL CONNECTOR
Fig. 9 IGNITION COILS
Fig. 10 COIL MOUNTING POST
8I - 6 IGNITION CONTROL ZB
IGNITION COIL (Continued)
