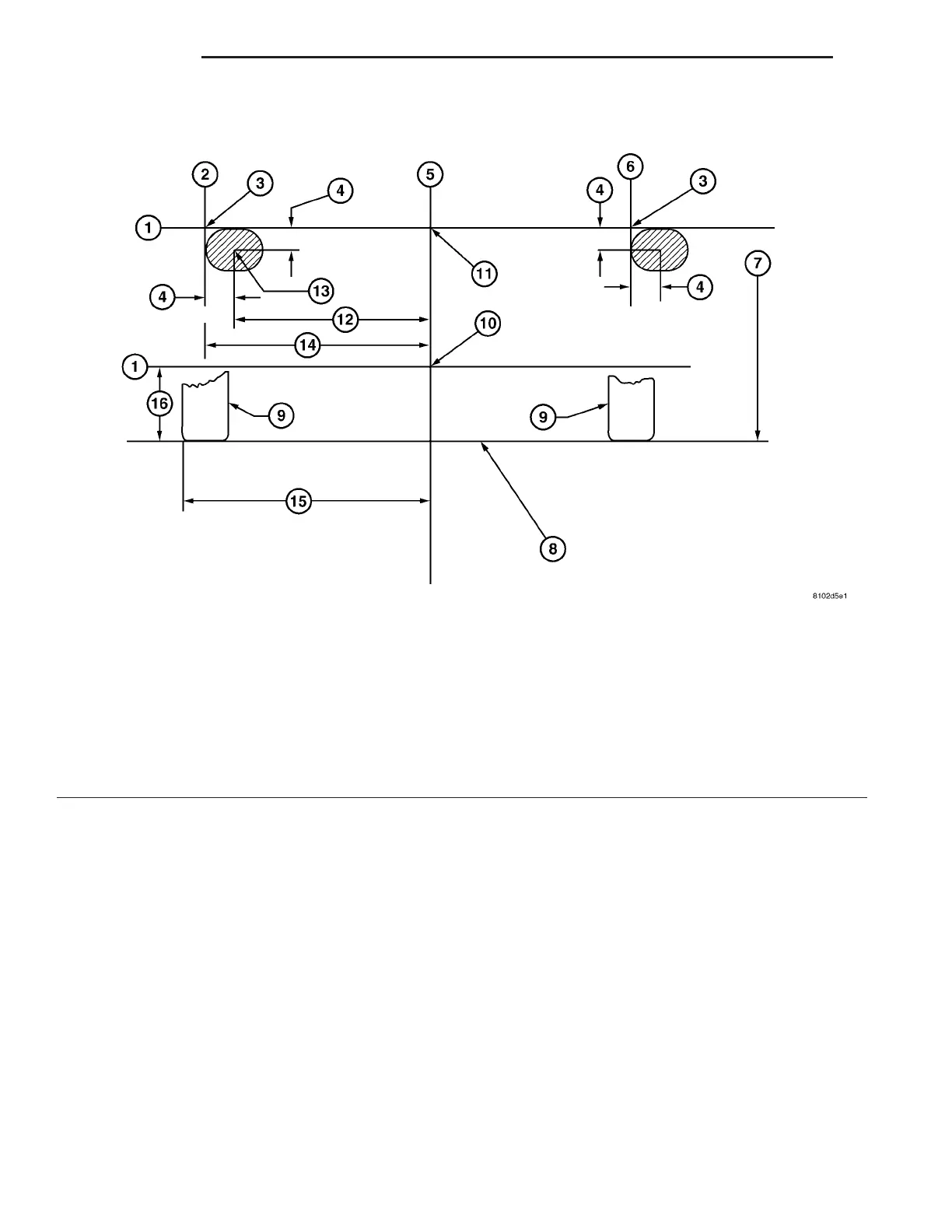

Fig. 12 HEADLAMP/FOG LAMP UNIT AIMING
1 - HORIZONTAL CENTERLINE OF HEADLAMP ON VEHICLE 9 - RIGHT TIRE
2 - VERTICAL CENTERLINE OF LEFT HEADLAMP 10 - FOG LAMP HORIZONTAL ALIGNMENT LINE
3 - CENTER OF VEHICLE HEADLAMP UNIT 11 - CENTER OF HORIZONTAL HEADLAMP LINE AND VEHICLE
CENTERLINE
4 - 4 INCHES 12 - 21.50 INCHES
5 - VERTICAL CENTERLINE OF VEHICLE 13 - CENTER OF LOW BEAM HIGH INTENSITY
6 - VERTICAL CENTERLINE OF RIGHT HEADLAMP 14 - 25.25 INCHES
7 - HEIGHT TO FLOOR OF HEADLAMP FILAMENT - 25.12
INCHES ± 2 INCHES
15 - 35.50 INCHES TO OUTSIDE OF FRONT TIRE
8 - FLOOR LEVEL 16 - 11.125 INCHES
8L - 12 LAMPS ZB
HEADLAMP UNIT (Continued)
