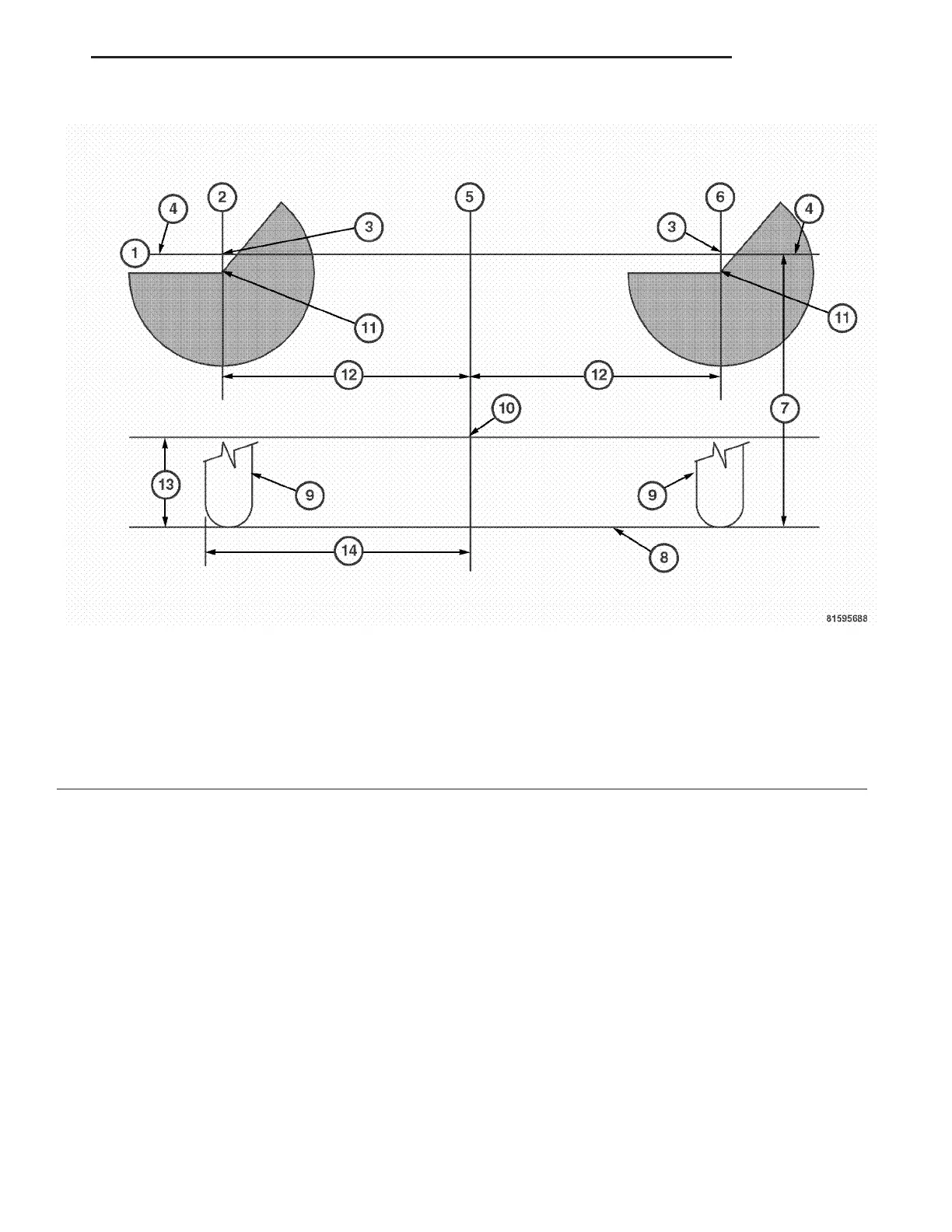

Fig. 13 HEADLAMP AIMING - EXPORT
1 - HORIZONTAL CENTERLINE OF HEADLAMP ON VEHICLE 8 - FLOOR LEVEL
2 - VERTICAL CENTERLINE OF LEFT HEADLAMP 9 - TIRES
3 - CENTER OF VEHICLE HEADLAMP UNIT 10 - FOG LAMP HORIZONTAL ALIGNMENT LINE
4 - 100 MM (4 IN.) 11 - IMAGE BREAK POINT
5 - VERTICAL CENTERLINE OF VEHICLE 12 - 628 MM (27.72 IN.)
6 - VERTICAL CENTERLINE OF RIGHT HEADLAMP 13 - 902 MM (35.50 IN.) TO OUTSIDE OF FRONT TIRE
7 - HEIGHT TO FLOOR OF HEADLAMP FILAMENT - 614 MM
(24.17 IN.)
14 - 282 MM (11.13 IN.)
ZB LAMPS 8L - 13
HEADLAMP UNIT (Continued)
To Next Page
