Dodge ZB 2005 - Page 563

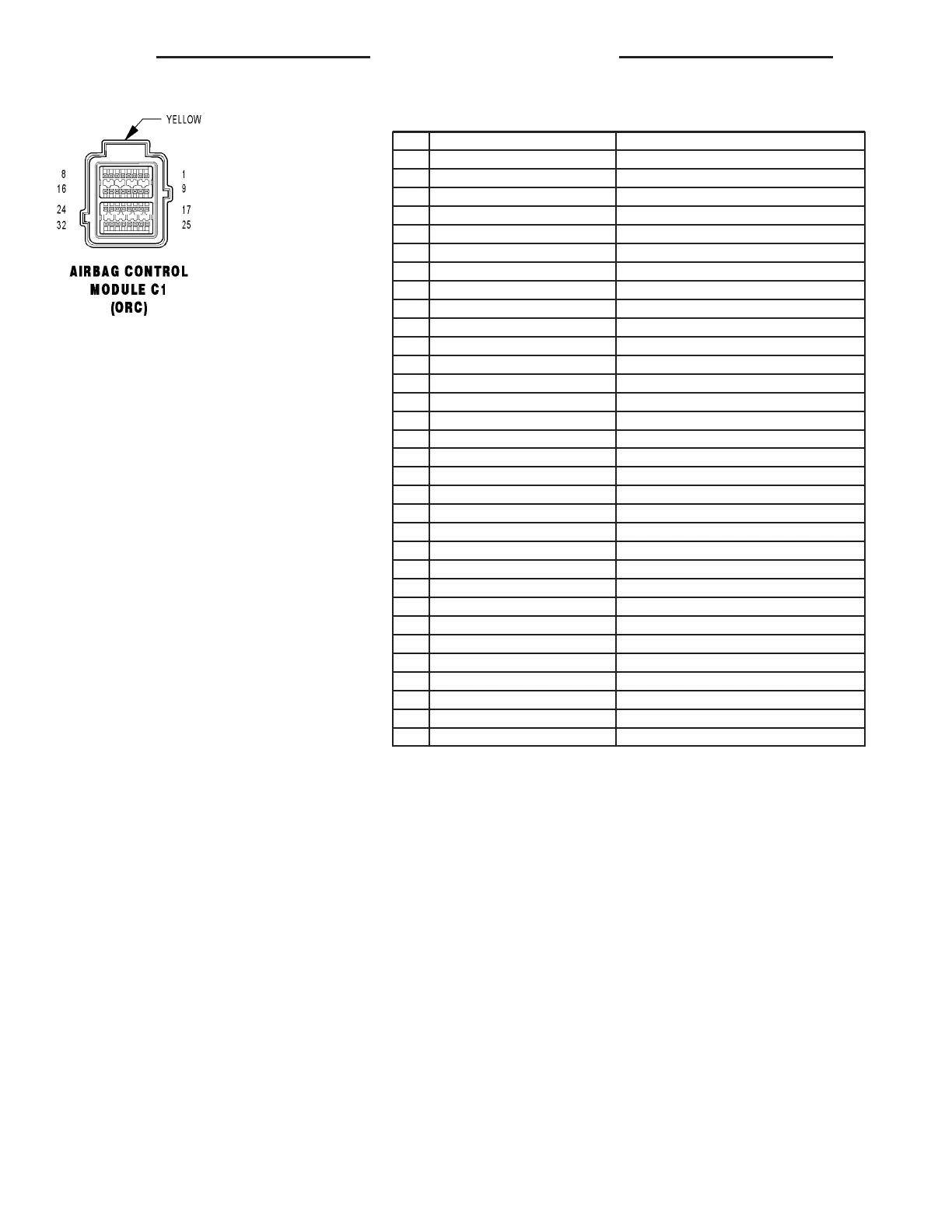

AIRBAG CONTROL MODULE C1 (ORC) - YELLOW 32 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 R56 20LB/DG PASSENGER SEAT BELT TENSIONER LINE 1
4 R54 20LB/YL PASSENGER SEAT BELT TENSIONER LINE 2
5- -
6- -
7- -
8- -
9 R58 20LB/GY PASSENGER SEAT BELT SWITCH SENSE
10 R60 20LB/TN PASSENGER SEAT BELT SWITCH GROUND
11 - -
12 - -
13 - -
14 - -
15 - -
16 - -
17 - -
18 - -
19 - -
20 - -
21 - -
22 - -
23 R59 20LG/TN DRIVER SEAT BELT SWITCH GROUND
24 R57 20LG/GY DRIVER SEAT BELT SWITCH SENSE
25 - -
26 - -
27 R55 20LG/DG DRIVER SEAT BELT TENSIONER LINE 1
28 R53 20LG/YL DRIVER SEAT BELT TENSIONER LINE 2
29 - -
30 - -
31 - -
32 - -
8W - 80 - 6 8W-80 CONNECTOR PIN-OUTS ZB
