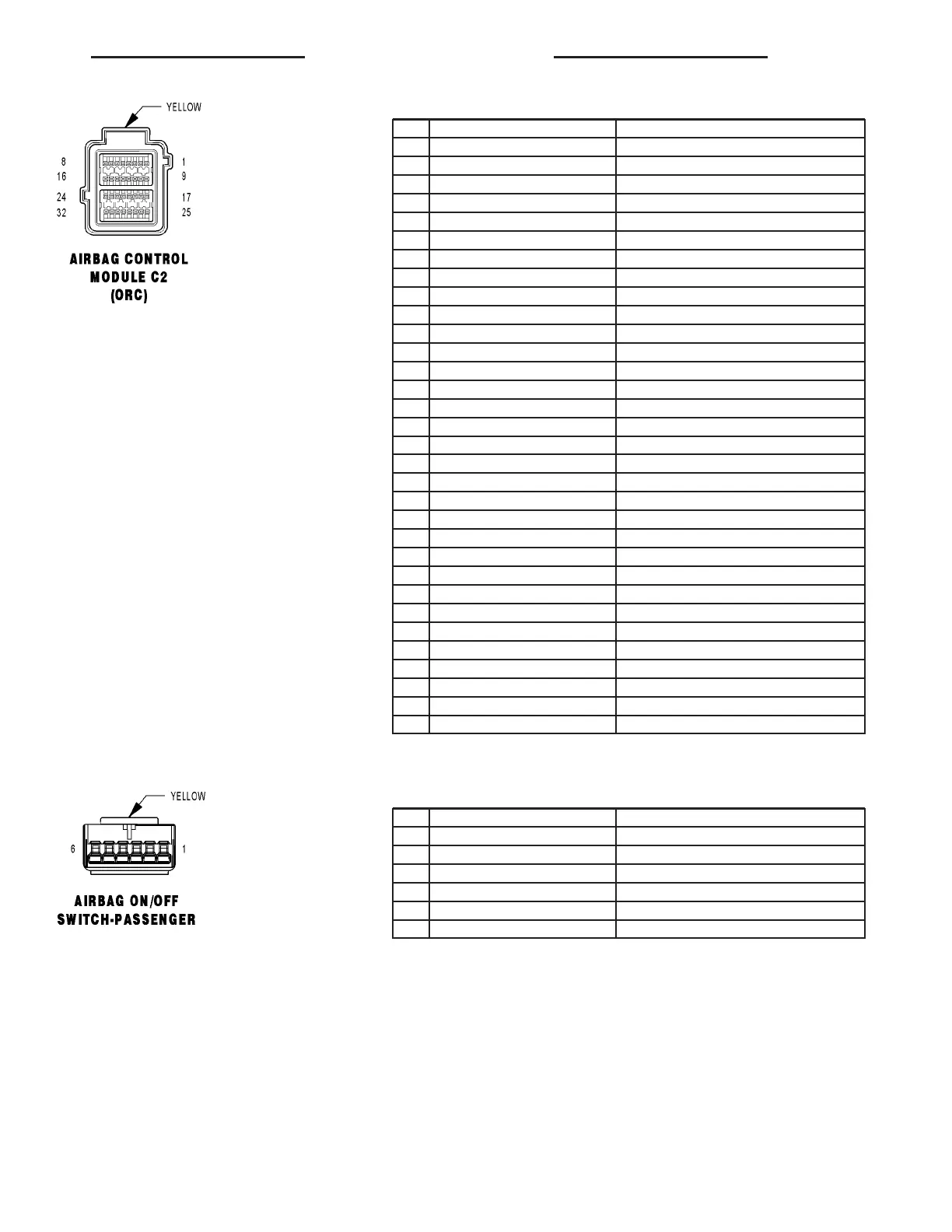

Dodge ZB 2005 - Page 564

AIRBAG CONTROL MODULE C2 (ORC) - YELLOW 32 WAY
CAV CIRCUIT FUNCTION
1 R45 20LG/OR DRIVER SQUIB 1 LINE 2
2 R43 20LG/BR DRIVER SQUIB 1 LINE 1
3 R42 20LB/BR PASSENGER SQUIB 1 LINE 2
4 R44 20LB/OR PASSENGER SQUIB 1 LINE 1
5- -
6- -
7- -
8- -
9- -
10 - -
11 - -
12 - -
13 - -
14 - -
15 - -
16 F100 20PK/VT FUSED IGNITION SWITCH OUTPUT (RUN)
17 Z12 20BK/TN GROUND
18 R6 20VT/LB PASSENGER AIRBAG MUX SWITCH RETURN
19 R4 20OR/LB PASSENGER AIRBAG MUX SWITCH SENSE
20 R166 20LG/TN PASSENGER AIRBAG INDICATOR DRIVER
21 - -
22 - -
23 D25 20WT/VT PCI BUS
24 F12 20PK FUSED IGNITION SWITCH OUTPUT (RUN-START)
25 R63 20LG/WT DRIVER SQUIB 2 LINE 2
26 R61 20LG/VT DRIVER SQUIB 2 LINE 1
27 R62 20LB/VT PASSENGER SQUIB 2 LINE 1
28 R64 20LB/WT PASSENGER SQUIB 2 LINE 2
29 - -
30 - -
31 - -
32 - -
AIRBAG ON/OFF SWITCH-PASSENGER - YELLOW 6 WAY
CAV CIRCUIT FUNCTION
1 R4 20OR/LB PASSENGER AIRBAG MUX SWITCH SENSE
2 R6 20VT/LB PASSENGER AIRBAG MUX SWITCH RETURN
3- -
4- -
5- -
6- -
ZB 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 7
