Dodge ZB 2005 - Page 565

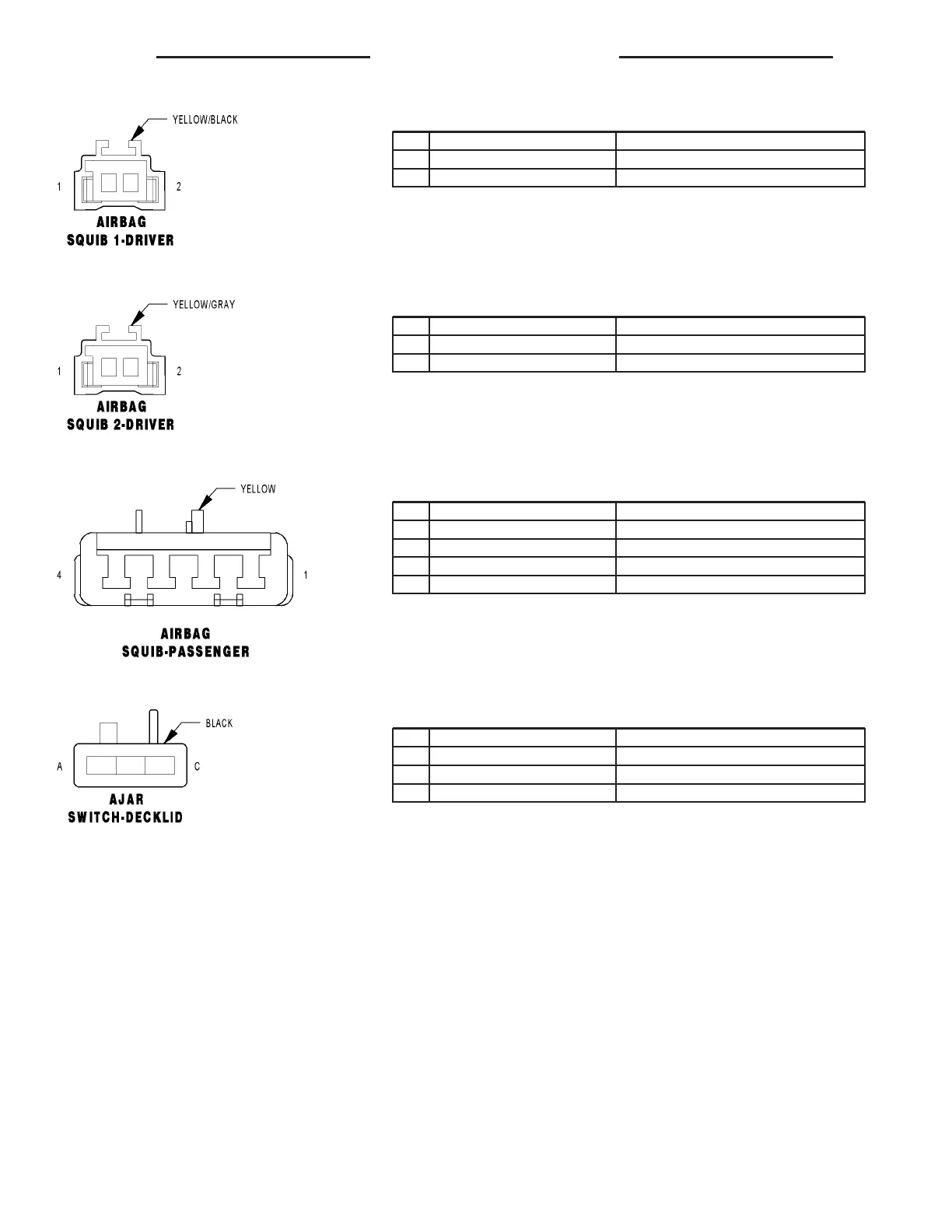

AIRBAG SQUIB 1-DRIVER - YELLOW/BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 R45 20LG/OR DRIVER SQUIB 1 LINE 2
2 R43 20LG/BR DRIVER SQUIB 1 LINE 1
AIRBAG SQUIB 2-DRIVER - YELLOW/GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 R63 20LG/WT DRIVER SQUIB 2 LINE 2
2 R61 20LG/VT DRIVER SQUIB 2 LINE 1
AIRBAG SQUIB-PASSENGER - YELLOW 4 WAY
CAV CIRCUIT FUNCTION
1 R44 20LB/OR PASSENGER SQUIB 1 LINE 1
2 R42 20LB/BR PASSENGER SQUIB 1 LINE 2
3 R64 20LB/WT PASSENGER SQUIB 2 LINE 2
4 R62 20LB/VT PASSENGER SQUIB 2 LINE 1
AJAR SWITCH-DECKLID - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A G78 20VT/OR DECKLID AJAR SWITCH SENSE
B Z1 20BK GROUND
C- -
8W - 80 - 8 8W-80 CONNECTOR PIN-OUTS ZB
