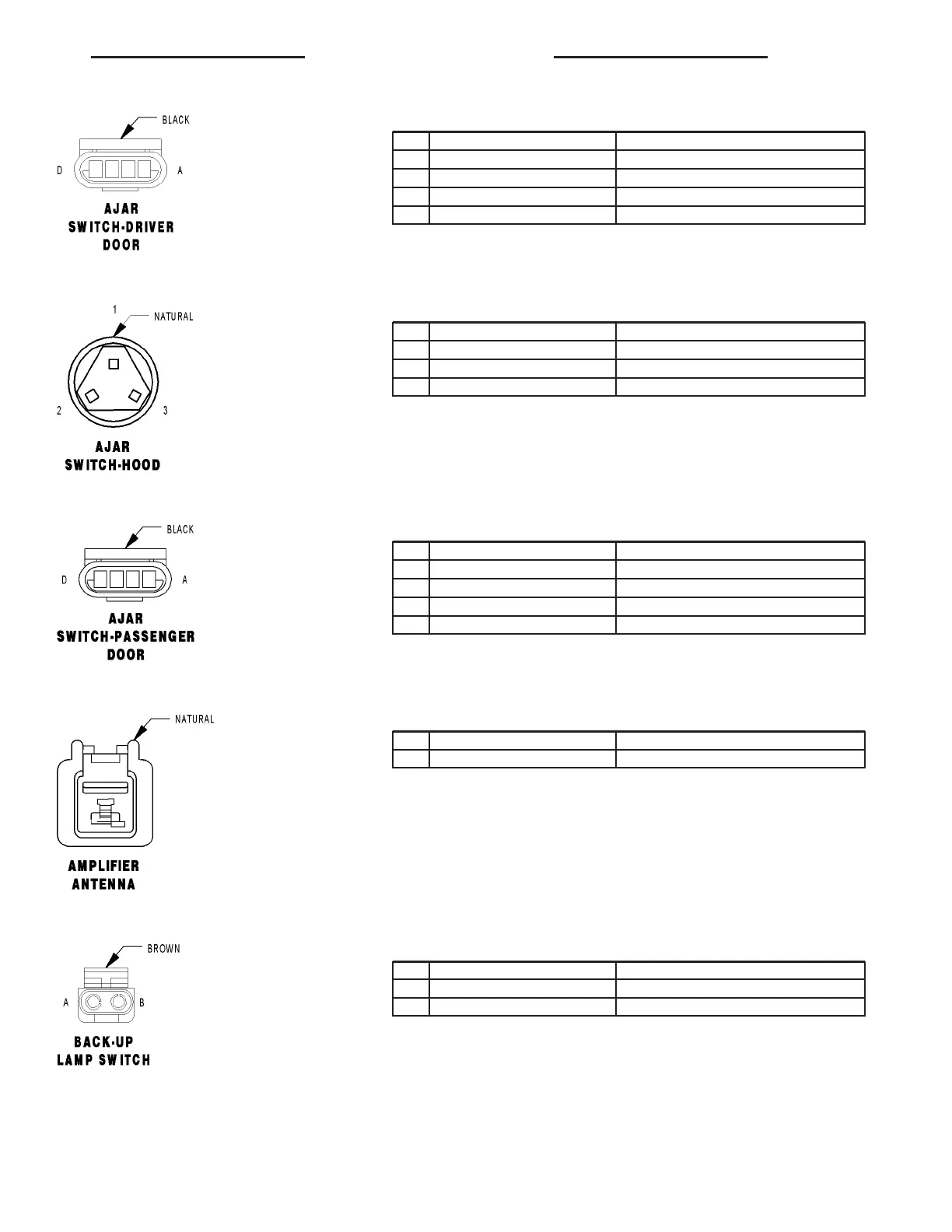

AJAR SWITCH-DRIVER DOOR - BLACK 4 WAY
CAV CIRCUIT FUNCTION
A- -
B G75 20VT DRIVER DOOR AJAR SWITCH SENSE
C- -
D Z1 20BK GROUND
AJAR SWITCH-HOOD - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 G70 20VT/LB HOOD AJAR SWITCH SENSE
2 Z1 20BK GROUND
3- -
AJAR SWITCH-PASSENGER DOOR - BLACK 4 WAY
CAV CIRCUIT FUNCTION
A G74 20VT/WT PASSENGER DOOR AJAR SWITCH SENSE
B- -
C Z1 20BK GROUND
D- -
AMPLIFIER ANTENNA - NATURAL 1 WAY
CAV CIRCUIT FUNCTION
1 X60 20DG/RD RADIO 12V OUTPUT
BACK-UP LAMP SWITCH - BROWN 2 WAY
CAV CIRCUIT FUNCTION
A F20 20PK/WT FUSED IGNITION SWITCH OUTPUT (RUN)
B L1 20WT/LG BACK-UP LAMP SWITCH OUTPUT
ZB 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 9
