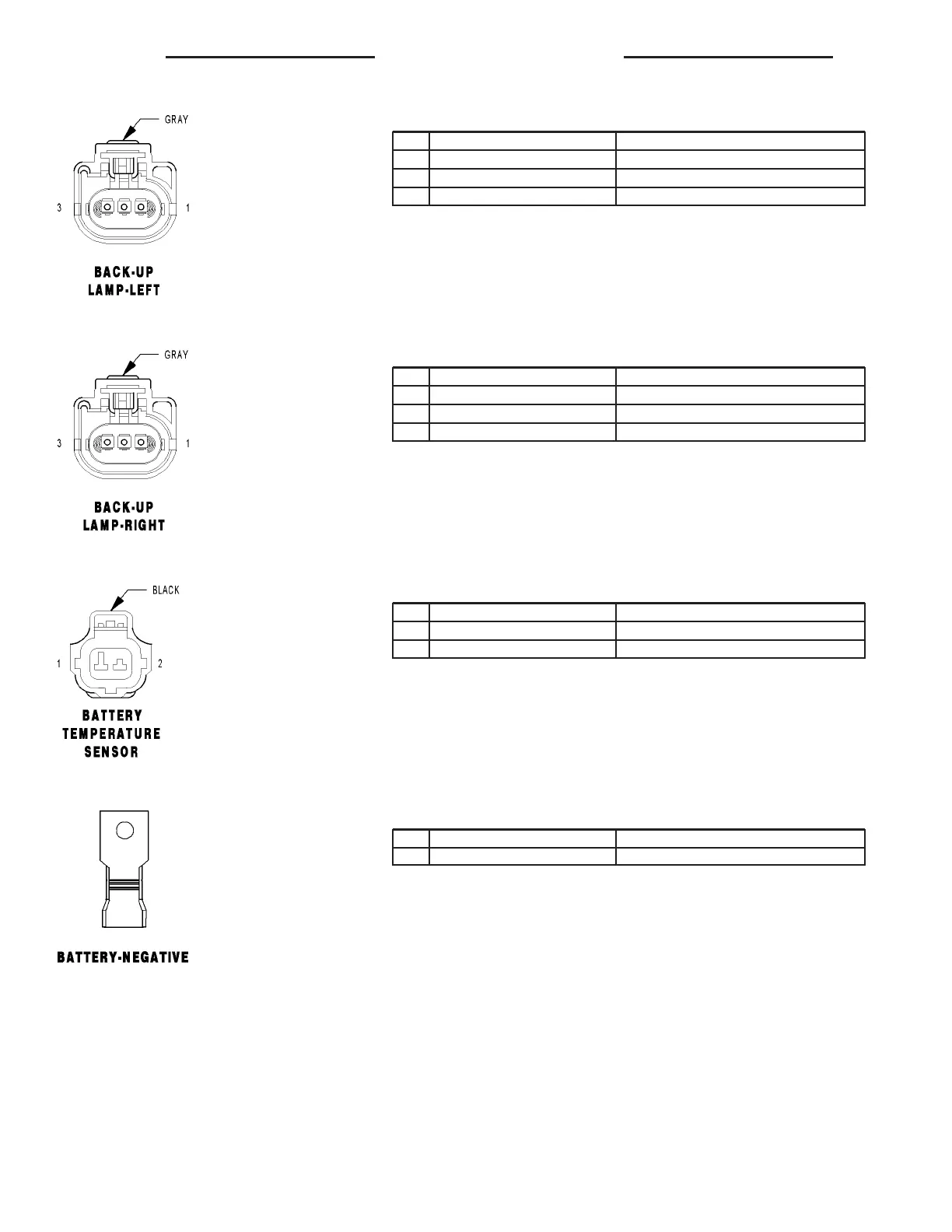

BACK-UP LAMP-LEFT - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 L1 20WT/LG BACK-UP LAMP SWITCH OUTPUT
2- -
3 Z1 20BK GROUND
BACK-UP LAMP-RIGHT - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 L1 20WT/LG BACK-UP LAMP SWITCH OUTPUT
2- -
3 Z1 20BK GROUND
BATTERY TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K25 20DB/VT BATTERY TEMPERATURE SENSOR SIGNAL
2 K900 20DB/DG SENSOR GROUND
BATTERY-NEGATIVE-1WAY
CAV CIRCUIT FUNCTION
1 Z0 4BK GROUND
8W - 80 - 10 8W-80 CONNECTOR PIN-OUTS ZB
