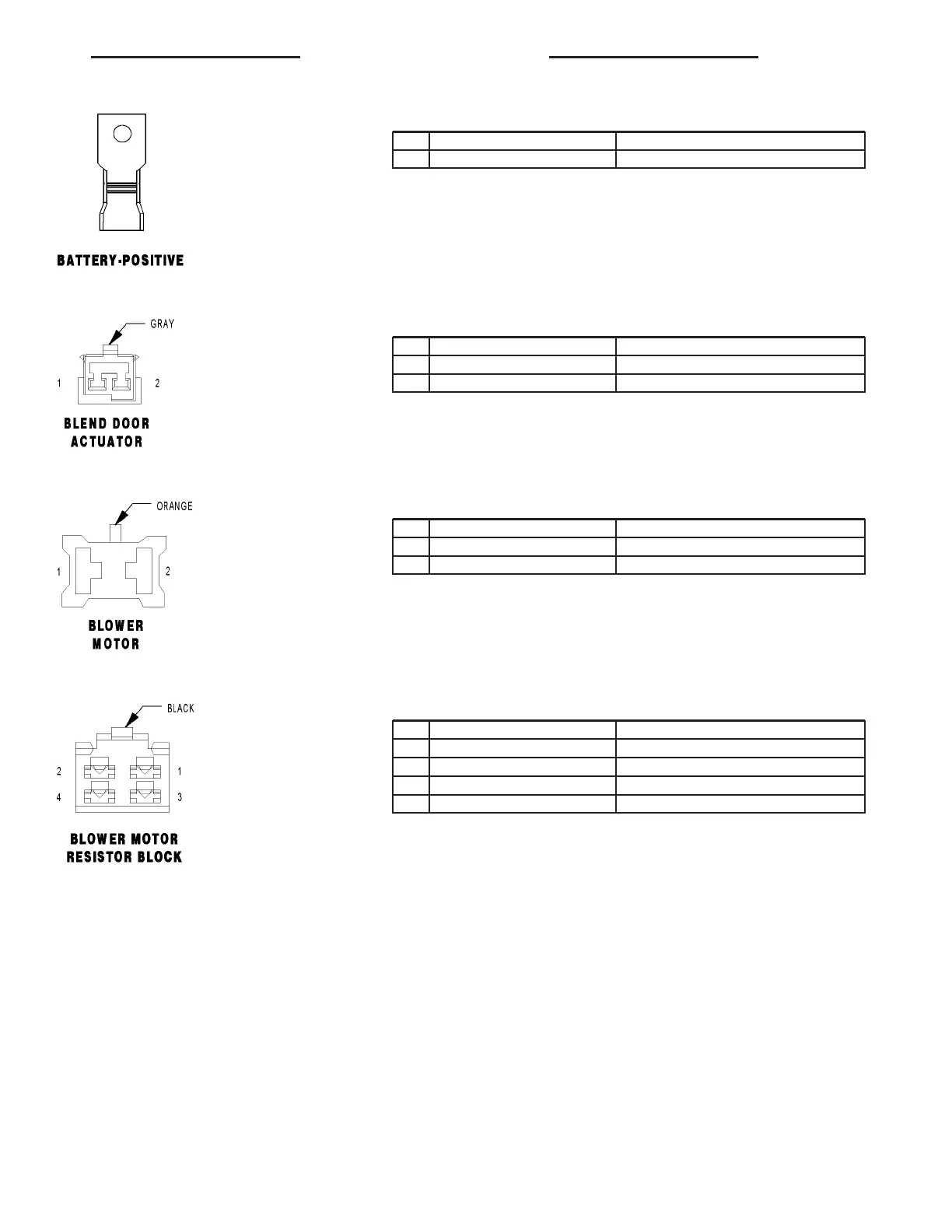

BATTERY-POSITIVE-1WAY
CAV CIRCUIT FUNCTION
1 A0 2RD B(+)
BLEND DOOR ACTUATOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C33 20LB/BR BLEND DOOR DRIVER
2 C34 20DB/LB COMMON DOOR DRIVER
BLOWER MOTOR - ORANGE 2 WAY
CAV CIRCUIT FUNCTION
1 C7 12DB BLOWER MOTOR RELAY OUTPUT
2 C75 12DB/GY BLOWER MOTOR HIGH DRIVER
BLOWER MOTOR RESISTOR BLOCK - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 C72 16OR BLOWER MOTOR M1 DRIVER
2 C75 12DB/GY BLOWER MOTOR HIGH DRIVER
3 C71 16DB/BR BLOWER MOTOR LOW DRIVER
4 C73 14DB/VT BLOWER MOTOR M2 DRIVER
ZB 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 11
