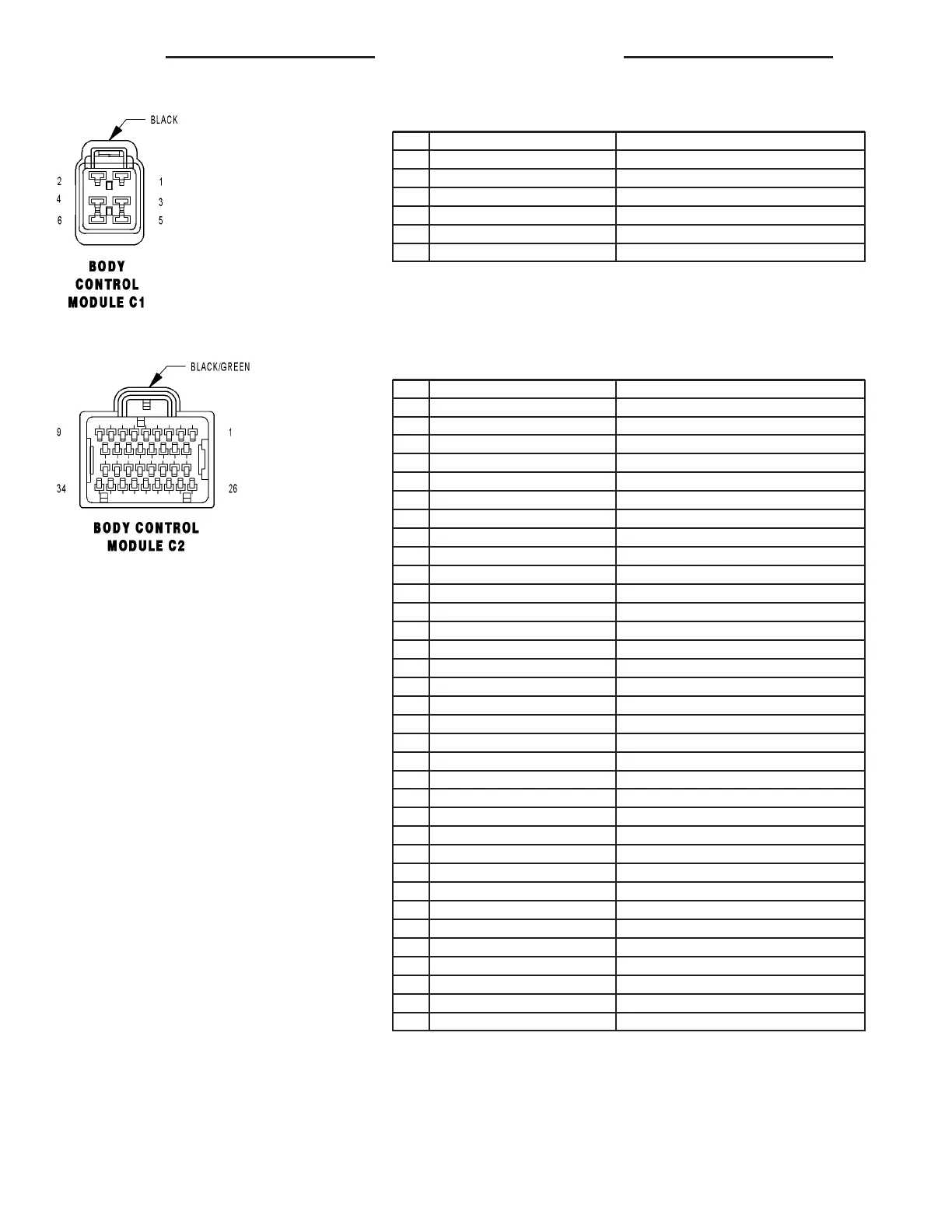

BODY CONTROL MODULE C1 - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 A101 14VT/RD FUSED B(+)
2 A102 12WT/RD FUSED B(+)
3 Z103 12BK GROUND
4- -
5 A101 14VT/RD FUSED B(+)
6- -
BODY CONTROL MODULE C2 - BLACK/GREEN 34 WAY
CAV CIRCUIT FUNCTION
1 L89 20WT LEFT FOG LAMP OUTPUT
2 L90 20WT/OR RIGHT FOG LAMP OUTPUT
3 L33 20LG/BR LEFT HIGH BEAM OUTPUT
4 L34 20WT/GY RIGHT HIGH BEAM OUTPUT
5 G5 20OR FUSED IGNITION SWITCH OUTPUT (RUN-START)
6 E19 20OR/VT PANEL LAMPS DIMMER SIGNAL
7 M1 20YL/VT IOD-B(+)
8- -
9 Q12 20BR/OR PASSENGER WINDOW UP RELAY CONTROL
10 P129 18LG/TN DRIVER DOOR UNLATCH RETURN
11 P128 18LG/DG PASSENGER DOOR UNLATCH RETURN
12 - -
13 - -
14 - -
15 Z20 18BK/WT GROUND
16 P901 20OR/LB DRIVER DOOR SWITCH RETURN
17 X4 20DG/WT HORN RELAY CONTROL
18 - -
19 Z20 18BK/WT GROUND
20 - -
21 - -
22 L37 20WT/DB HIGH BEAM SWITCH SENSE
23 - -
24 L307 20WT/BR LOW BEAM SWITCH SENSE
25 E2 20OR/BR PANEL LAMPS DRIVER
26 P126 18LG/OR PASSENGER DOOR UNLATCH DRIVER
27 - -
28 P127 18OR/LG DRIVER DOOR UNLATCH DRIVER
29 Q11 18OR/DB DRIVER WINDOW UP DRIVER
30 - -
31 Q21 18OR/WT DRIVER WINDOW DOWN DRIVER
32 Q2 18WT/TN DECKLID RELEASE DRIVER
33 L7 20WT/YL PARK LAMP SWITCH OUTPUT
34 - -
8W - 80 - 12 8W-80 CONNECTOR PIN-OUTS ZB
