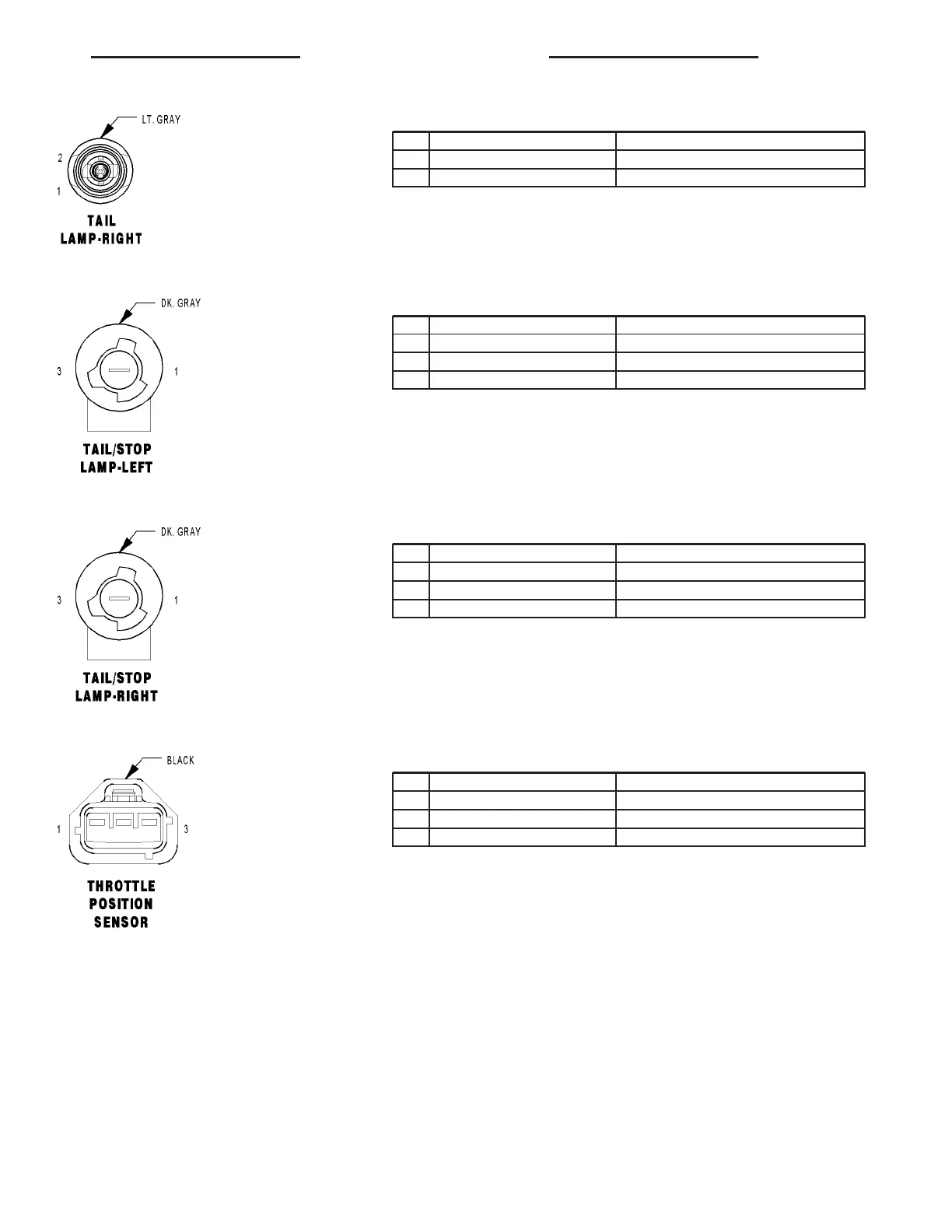

TAIL LAMP-RIGHT - LT. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 L7 20WT/YL PARK LAMP SWITCH OUTPUT
2 Z1 20BK GROUND
TAIL/STOP LAMP-LEFT - DK. GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 L7 20WT/YL PARK LAMP SWITCH OUTPUT
3 L50 20WT/TN BRAKE LAMP SWITCH OUTPUT
TAIL/STOP LAMP-RIGHT - DK. GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z1 20BK GROUND
2 L7 20WT/YL PARK LAMP SWITCH OUTPUT
3 L50 20WT/TN BRAKE LAMP SWITCH OUTPUT
THROTTLE POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K900 20DB/DG SENSOR GROUND
2 K22 18BR/OR THROTTLE POSITION SENSOR SIGNAL
3 F855 20PK/YL 5V SUPPLY
ZB 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 65
