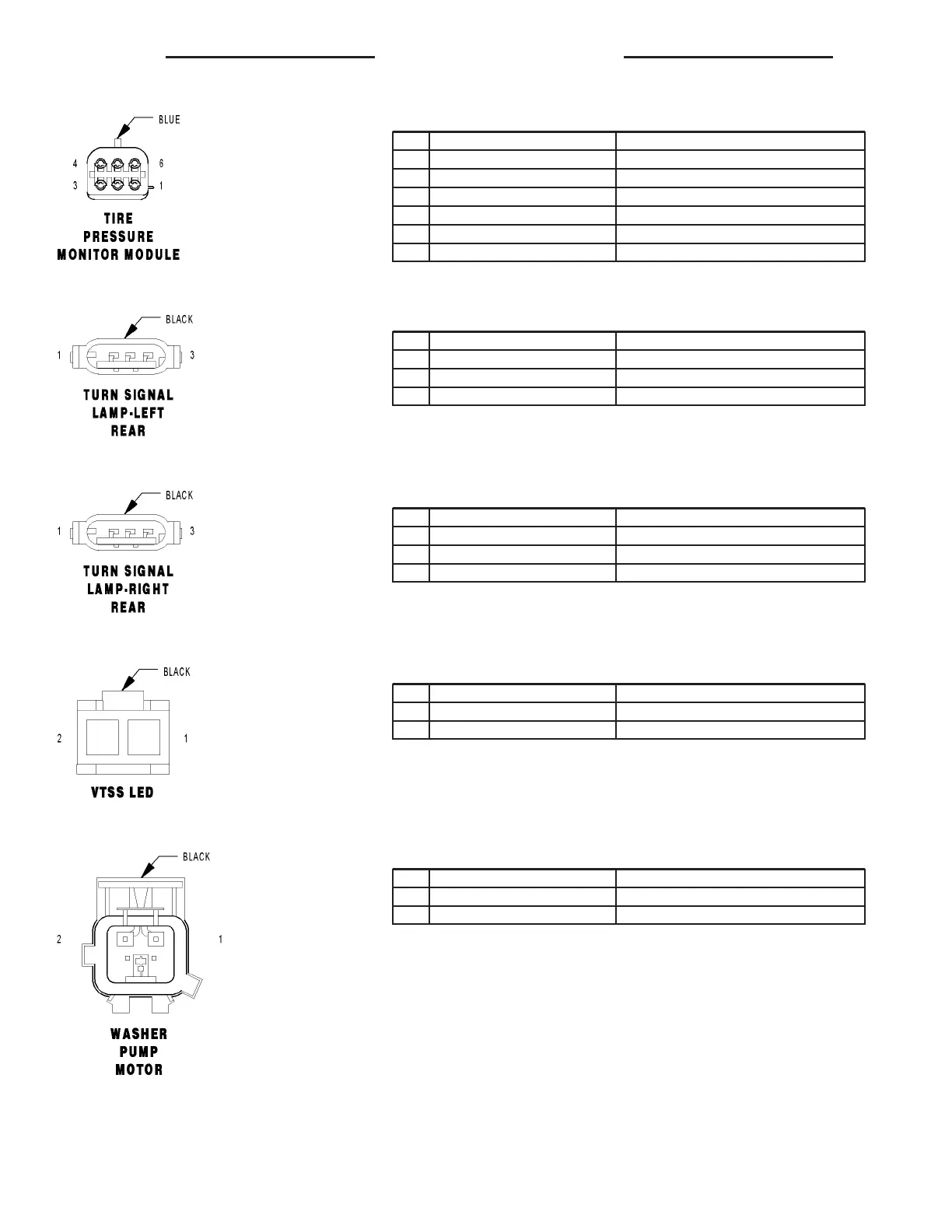

TIRE PRESSURE MONITOR MODULE - BLUE 6 WAY
CAV CIRCUIT FUNCTION
1 D21 20WT/BR SCI TRANSMIT
2- -
3 Z2 20BK/LG GROUND
4 G5 20OR FUSED IGNITION SWITCH OUTPUT (RUN-START)
5- -
6 G94 20LG LOW TIRE PRESSURE SIGNAL
TURN SIGNAL LAMP-LEFT REAR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L63 20WT/DG LEFT REAR TURN SIGNAL DRIVER
2- -
3 Z1 20BK GROUND
TURN SIGNAL LAMP-RIGHT REAR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L62 20WT/RD RIGHT REAR TURN SIGNAL DRIVER
2- -
3 Z1 20BK GROUND
VTSS LED - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G69 20BK/OR VTSS INDICATOR DRIVER
2 Z1 20BK GROUND
WASHER PUMP MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 W110 16BR/WT WASHER SWITCH SENSE
8W - 80 - 66 8W-80 CONNECTOR PIN-OUTS ZB
