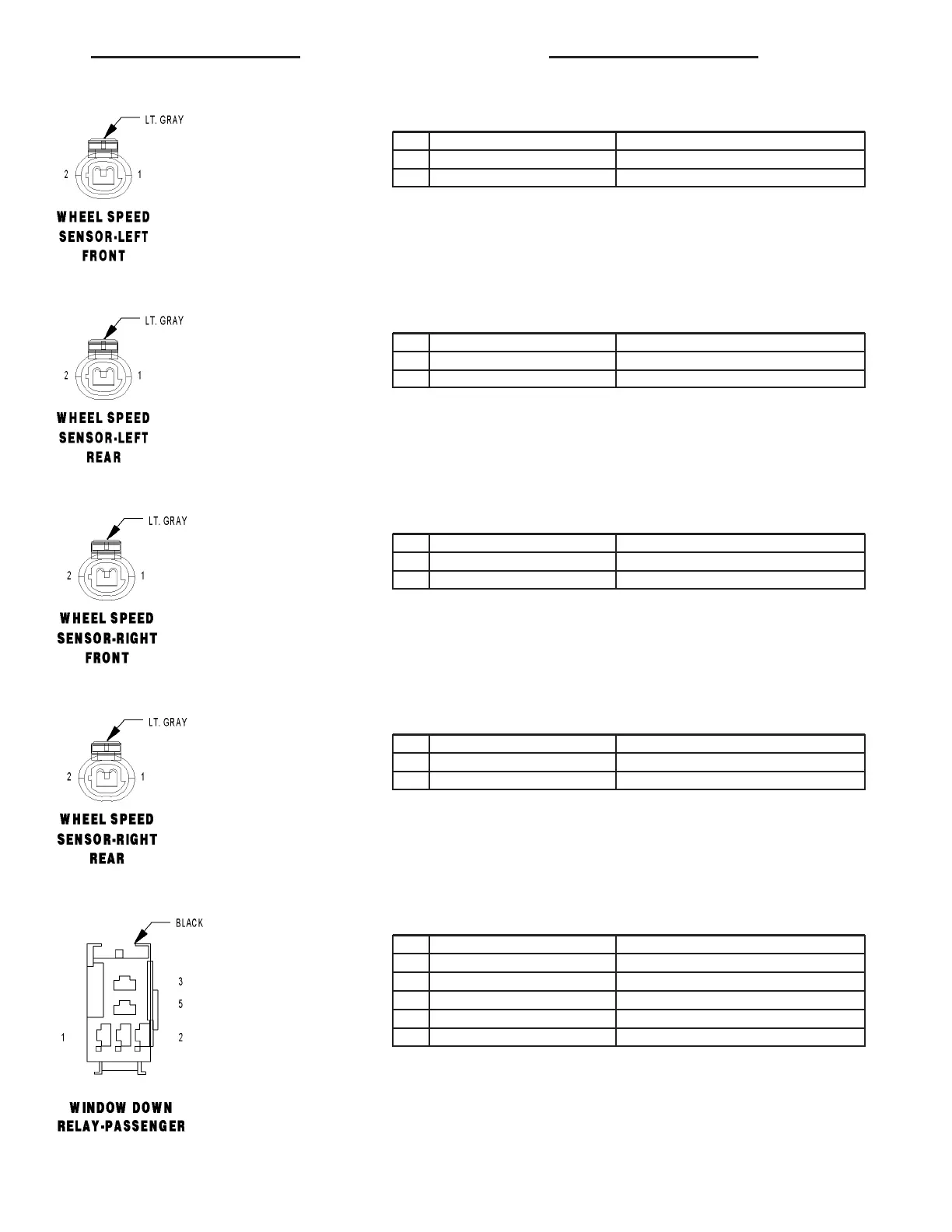

WHEEL SPEED SENSOR-LEFT FRONT - LT. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B9 18DG/LG LEFT FRONT WHEEL SPEED SENSOR 12V SUPPLY
2 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
WHEEL SPEED SENSOR-LEFT REAR - LT. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12V SUPPLY
2 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
WHEEL SPEED SENSOR-RIGHT FRONT - LT. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12V SUPPLY
2 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
WHEEL SPEED SENSOR-RIGHT REAR - LT. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12V SUPPLY
2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
WINDOW DOWN RELAY-PASSENGER - BLACK 5 WAY
CAV CIRCUIT FUNCTION
1 Q22 20OR/VT PASSENGER WINDOW DOWN RELAY CONTROL
2 A128 14RD/OR FUSED B(+)
3 Q122 14OR/YL PASSENGER WINDOW DOWN RELAY OUTPUT
4 Z1 16BK GROUND
5 A128 14RD/OR FUSED B(+)
ZB 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 67
