Dodge ZB 2005 - Page 625

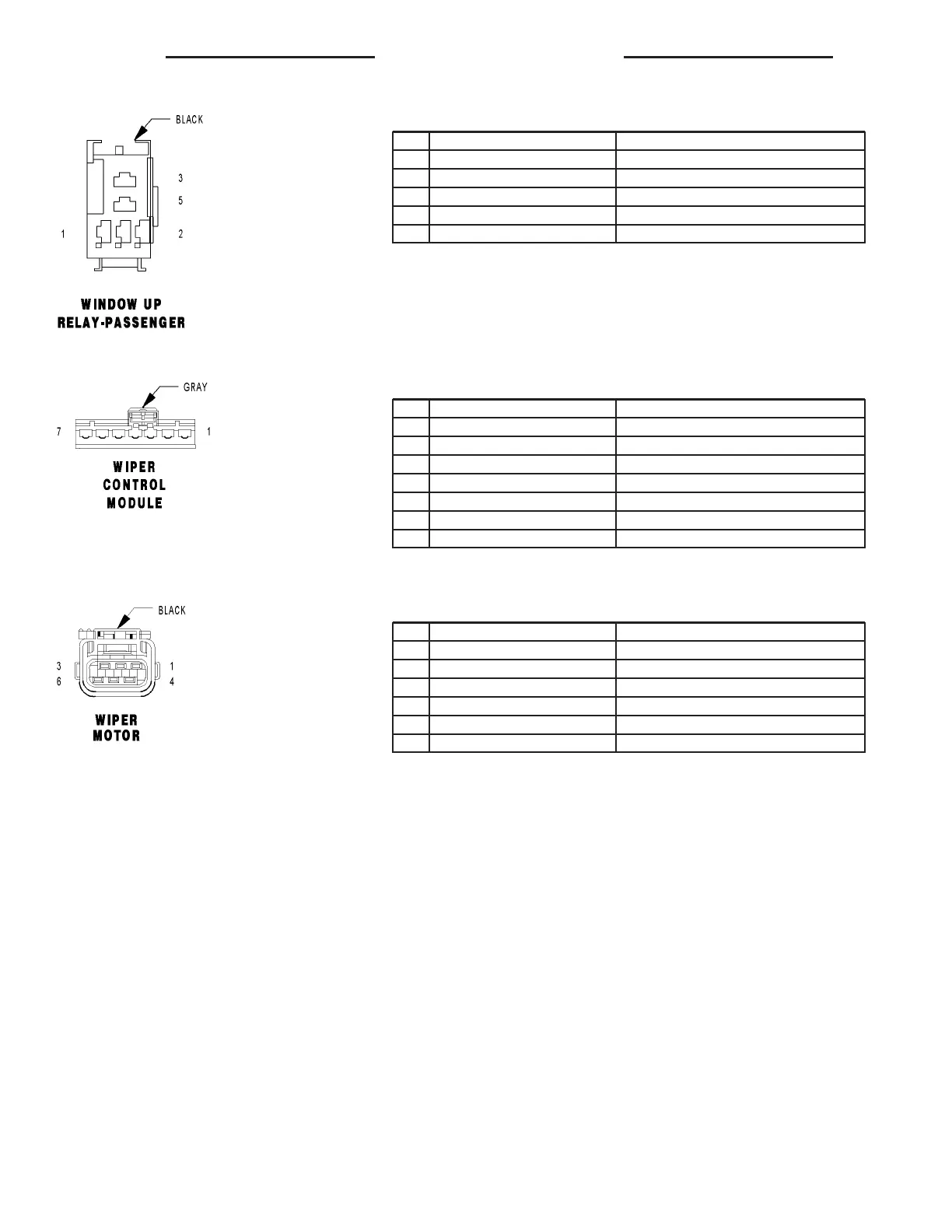

WINDOW UP RELAY-PASSENGER - BLACK 5 WAY
CAV CIRCUIT FUNCTION
1 Q12 20BR/OR PASSENGER WINDOW UP RELAY CONTROL
2 Z1 20BK GROUND
3 Q112 14OR/BR PASSENGER WINDOW UP RELAY OUTPUT
4 Z1 16BK/WT GROUND
5 A128 14RD/OR FUSED B(+)
WIPER CONTROL MODULE - GRAY 7 WAY
CAV CIRCUIT FUNCTION
1 W5 16BR/LG WIPER PARK SWITCH SENSE
2 Z1 18BK GROUND
3 W110 16BR/WT WASHER SWITCH SENSE
4 F13 18PK FUSED RUN/ACC RELAY OUTPUT
5 W4 16BR/OR WIPER SWITCH HIGH SPEED OUTPUT
6 W3 16BR WIPER SWITCH LOW SPEED OUTPUT
7- -
WIPER MOTOR - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 F13 18PK FUSED RUN/ACC RELAY OUTPUT
2 W5 16BR/LG WIPER PARK SWITCH SENSE
3- -
4 Z1 16BK GROUND
5 W3 16BR WIPER SWITCH LOW SPEED OUTPUT
6 W4 16BR/OR WIPER SWITCH HIGH SPEED OUTPUT
8W - 80 - 68 8W-80 CONNECTOR PIN-OUTS ZB
