CRANKSHAFT PILOT
BEARING
REMOVAL
(1) Remove transmission (Refer to 21 - TRANS-
MISSION/TRANSAXLE/MANUAL - REMOVAL).
(2) Remove clutch and flywheel (Refer to 6 -
CLUTCH/CLUTCH DISC - REMOVAL).
(3) Using Special Tools 8990 (1) and C-3752 (2),
remove pilot bearing from crankshaft (Fig. 124).
INSTALLATION
NOTE: New pilot bearing has special grease packed
into bearing. Do not wash grease from bearing.
Install bearing with part number markings (1) facing
out (Fig. 125).
(1) Install pilot bearing with Special Tools 9058 (1)
and C-4171 (2) (Fig. 126).
(2) Install flywheel and clutch (Refer to 6 -
CLUTCH/CLUTCH DISC - INSTALLATION).
(3) Install transmission (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/MANUAL - INSTALLATION).

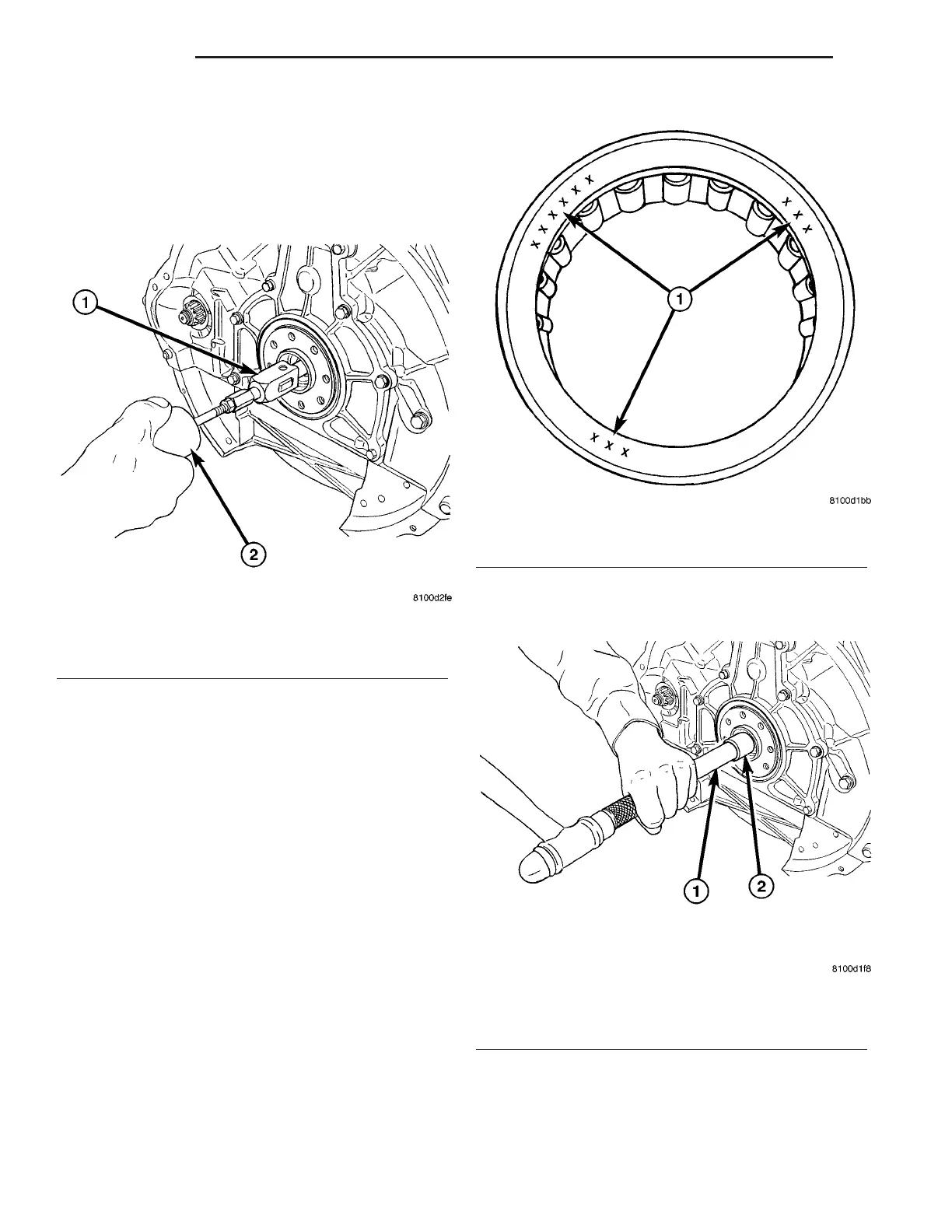

Fig. 124 Crankshaft Pilot Bearing Removal
1 - SPECIAL TOOL 8990
2 - SPECIAL TOOL C-3752
Fig. 125 Crankshaft Pilot Bearing
1 - MARKINGS ON BEARING FACE OUT FOR INSTALLATION
Fig. 126 Crankshaft Pilot Bearing Installation
1 - SPECIAL TOOL 9058
2 - SPECIAL TOOL C-4171
9 - 72 ENGINE ZB
