(7) Disconnect the electrical connector from the
fuel injectors (Fig. 7).
(8) Disconnect the fuel line quick connector (Fig.
8).
(9) Remove the bolts for the fuel rail (Fig. 9).
(10) Pull fuel rail and injectors straight up and out
of the intake manifold.
(11) Move the fuel rail forward and out from under
the intake manifold and throttle body (Fig. 10).

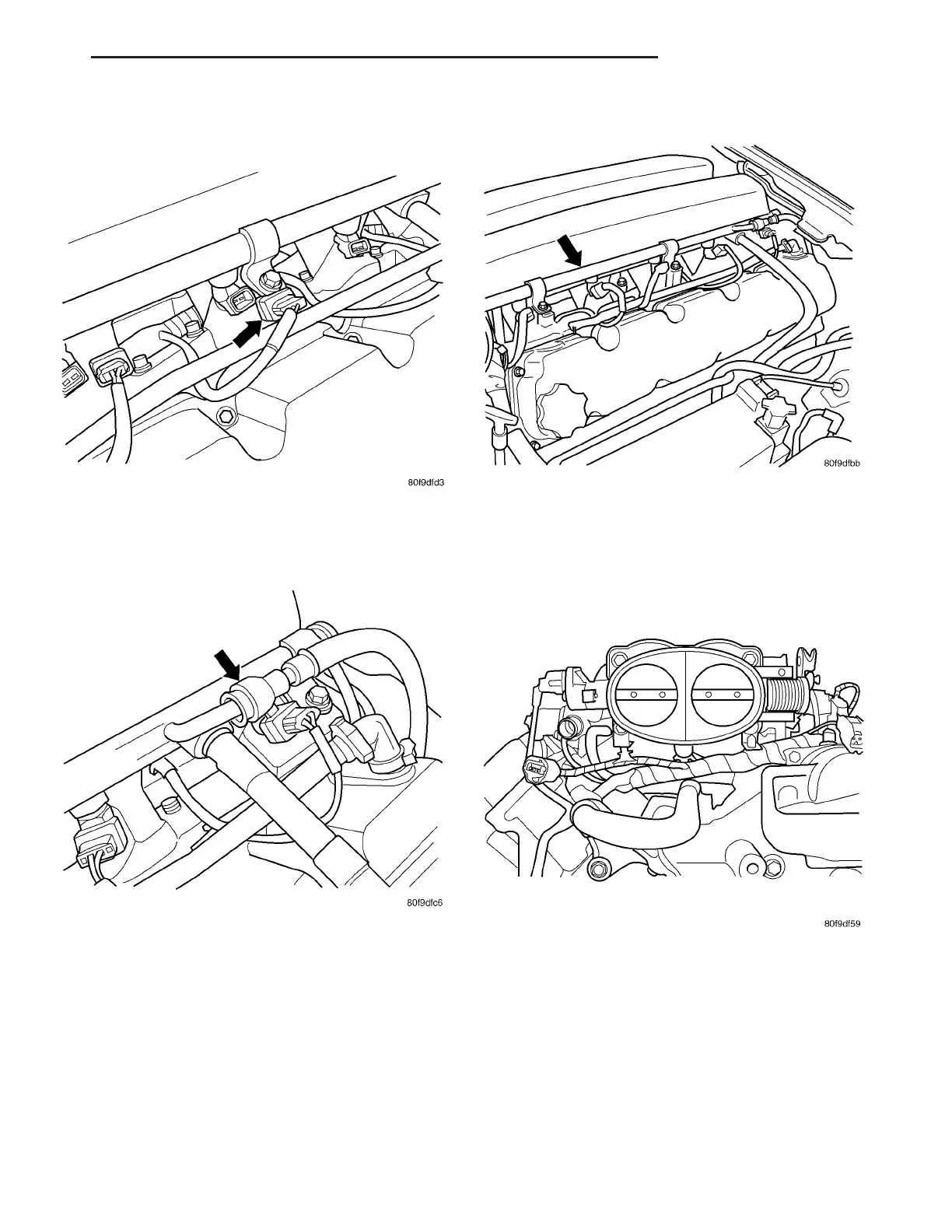

Fig. 7 FUEL INJECTOR CONNECTOR
Fig. 8 FUEL CONNECTION
Fig. 9 FUEL RAIL
Fig. 10 THROTTLE BODY
ZB FUEL INJECTION 14 - 33
FUEL INJECTORS (Continued)
