INSTALLATION
(1) Mount throttle body (Fig. 20) and wiring clips
(Fig. 21), tighten bolts to 12 N.m (105 in. lbs.).
(2) Connect electrical connector to throttle position
sensor (Fig. 19).
(3) Install the throttle cable (Fig. 18).
(4) Install the air cleaner housing, refer to Engine/
Air Intake System/Air Cleaner Housing.
(5) Connect the negative battery cable and install
the battery cover.
THROTTLE CABLE
REMOVAL
(1) Disconnect cable from throttle cam (Fig. 22).
(2) From inside the vehicle, hold the accelerator
pedal up and remove the cable retainer and throttle
cable from pedal (Fig. 23).
(3) Squeeze the tabs on the retainer at the dash
panel. Push the retainer out of the dash panel.
Remove the cable assembly (Fig. 24).

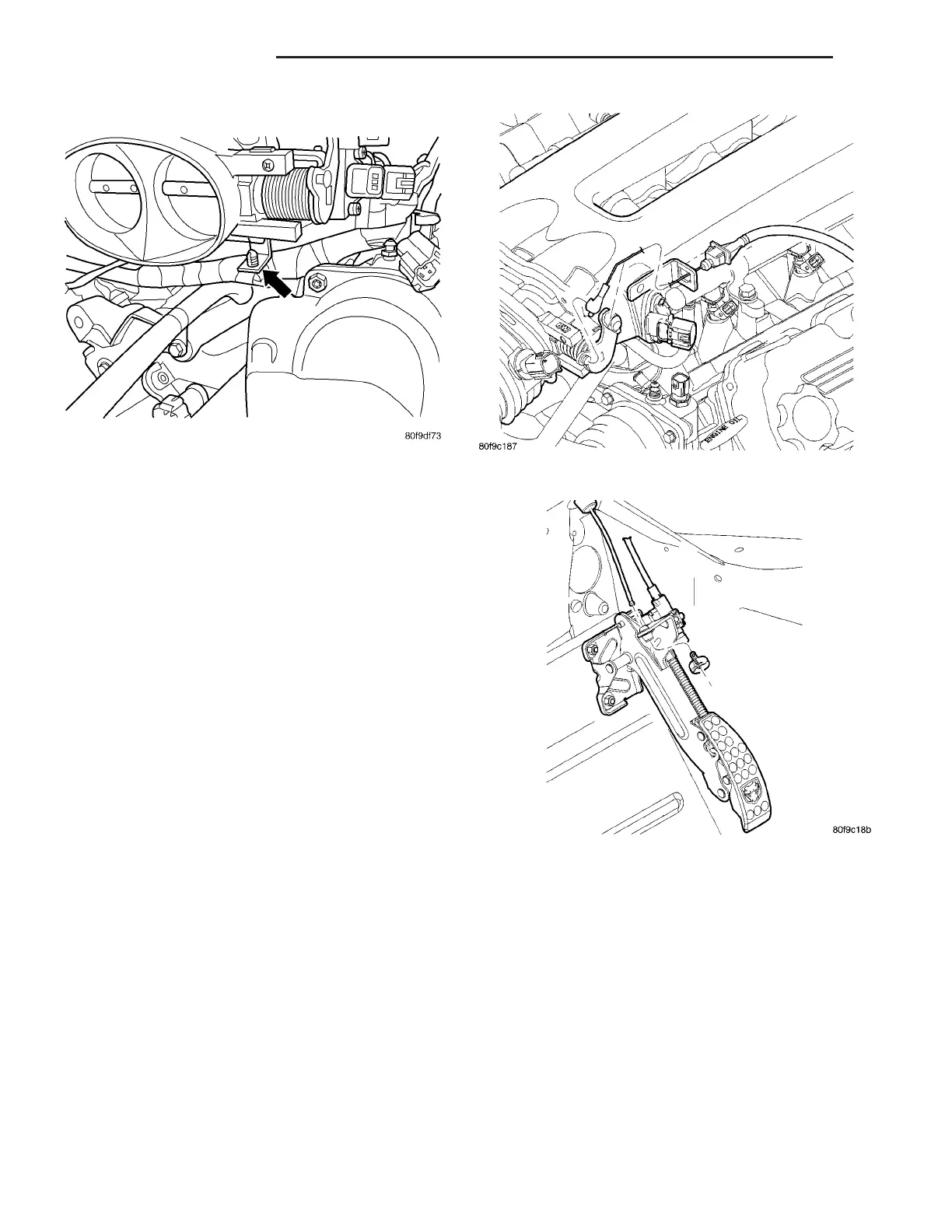

Fig. 21 WIRING CLIP
Fig. 22 THROTTLE CABLE AT THROTTLE BODY
Fig. 23 THROTTLE CABLE AT ACCELERATOR
PEDAL
14 - 40 FUEL INJECTION ZB
THROTTLE BODY (Continued)
