INSTALLATION
The TPS is attached to the throttle body (Fig. 25).
The throttle shaft end of the throttle body slides
into a socket in the TPS (Fig. 26). When indexed cor-
rectly, the TPS can rotate a few degrees to line up
the mounting screw holes with the screw holes in the
throttle body. If the sensor will not rotate into place,
install the sensor with the throttle shaft on the other
side of the socket tangs. The TPS has slight tension
when rotated to align the mounting holes.
(1) Install TPS and mounting screws.
(2) Attach electrical connector to the TPS.

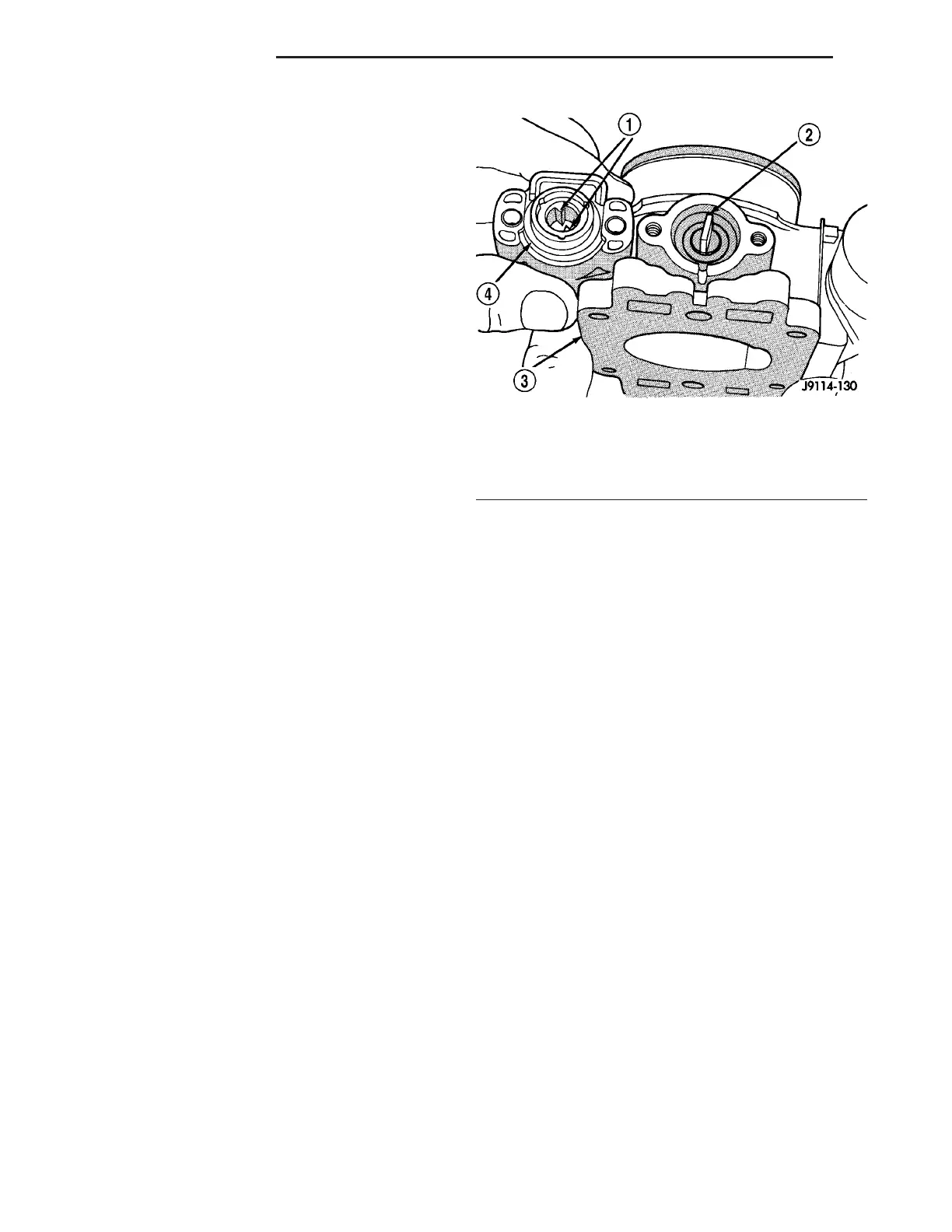

Fig. 26 Throttle Position Sensor—Installation
1 - TANGS
2 - THROTTLE SHAFT
3 - THROTTLE BODY
4 - TPS
